4 WHEN THE QCPU ACCESSES THE OTHER STATION PLC USING THE
DATA LINK INSTRUCTION

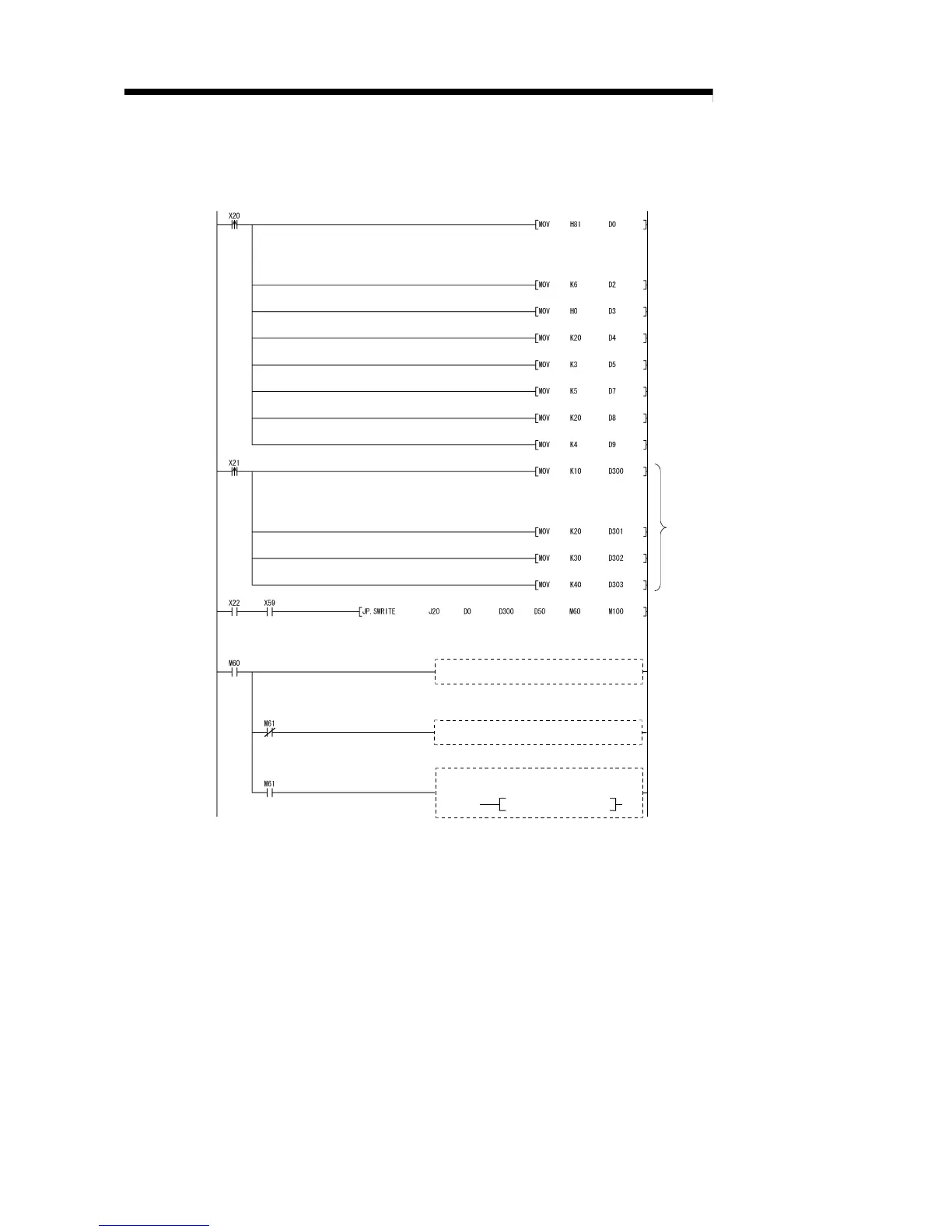

(b) Station 2 programs (SWRITE instruction)
When I/O signals of Ethernet module are X/Y40 to X/Y5F
With arraival confirmation/clock
data setting required.
Channel used by local station
Target statio'n network number
Write data length (4 words)
Performs error code reading, etc.
Arrival monitoring time (20 s)
Target station number
Number of resend
Write data
X59: Initial normal completion signal
Processing program on write completion
Processing program on normal completion
Processing program on abnormal
completion
MOV D1 D100
Target stations CPU type (target CPU)
Control
data
setting
command
Write
data
setting
command
Write
command
