6 - 9 6 - 9
MELSEC-Q
6 DEDICATED INSTRUCTIONS
Send data
Device Item Set data Setting range
Set by (
1
)
(S2) + 0
to
(S2) + n
Send data
Designate the contents of e-mail ((Subject + attached
file) or (Subject + main text)) to be sent.
—User
1 The "Set by" column indicates the following:
• User: Data is set by the user before executing a dedicated instruction.
• System: The PLC CPU stores the execution result of a dedicated instruction.
2 For a list of error codes, see Section 11.3.3 of the Q Corresponding Ethernet
Interface Module User's Manual (Basic)

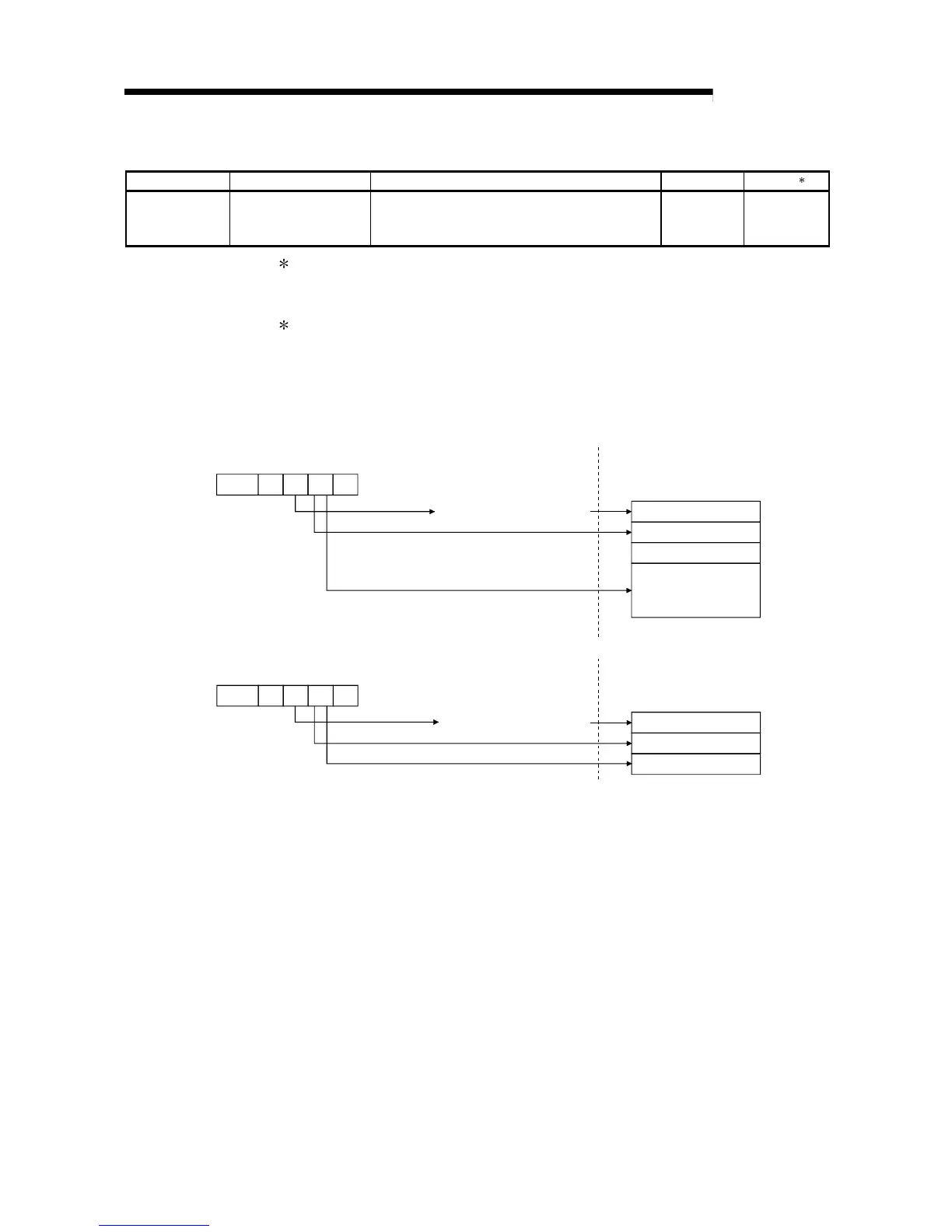

Functions
(1) This instruction sends mails to the designated external device.
(a) When sending data as an attached file
Send destination mail
address
Subject
Main Text
Attached file
Attached file name=
mmddhhss.bin
Transmission destination
number = mail address
Mail serverEthernet module
MSEND "Un" (S1) (S2) (D)
CPU module
(b) When sending data as main text
Send destination mail
address
Subject
Main text
Transmission destination
number = mail address
Mail serverEthernet module
MSEND "Un" (S1) (S2) (D)
CPU module
(2) Whether the MSEND instruction is being executed or has been completed
normally or abnormally can be checked with the completion device (D) or
completion status display flag ((D) + 1) designated in the set data.
(a) Completion device (D)
Turns on at the END processing of the scan where the MSEND instruction is
completed, and turns off at the next END processing.
(b) Status display device at completion ((D) + 1)
Turns on and off depending on the completion status of the MSEND instruction.
Normal completion: Stays off and does not change.
Abnormal completion: Turns on at the END processing of the scan where
the MSEND instruction is completed, and turns off at
the next END processing.
