6 - 25 6 - 25
MELSEC-Q
6 DEDICATED INSTRUCTIONS

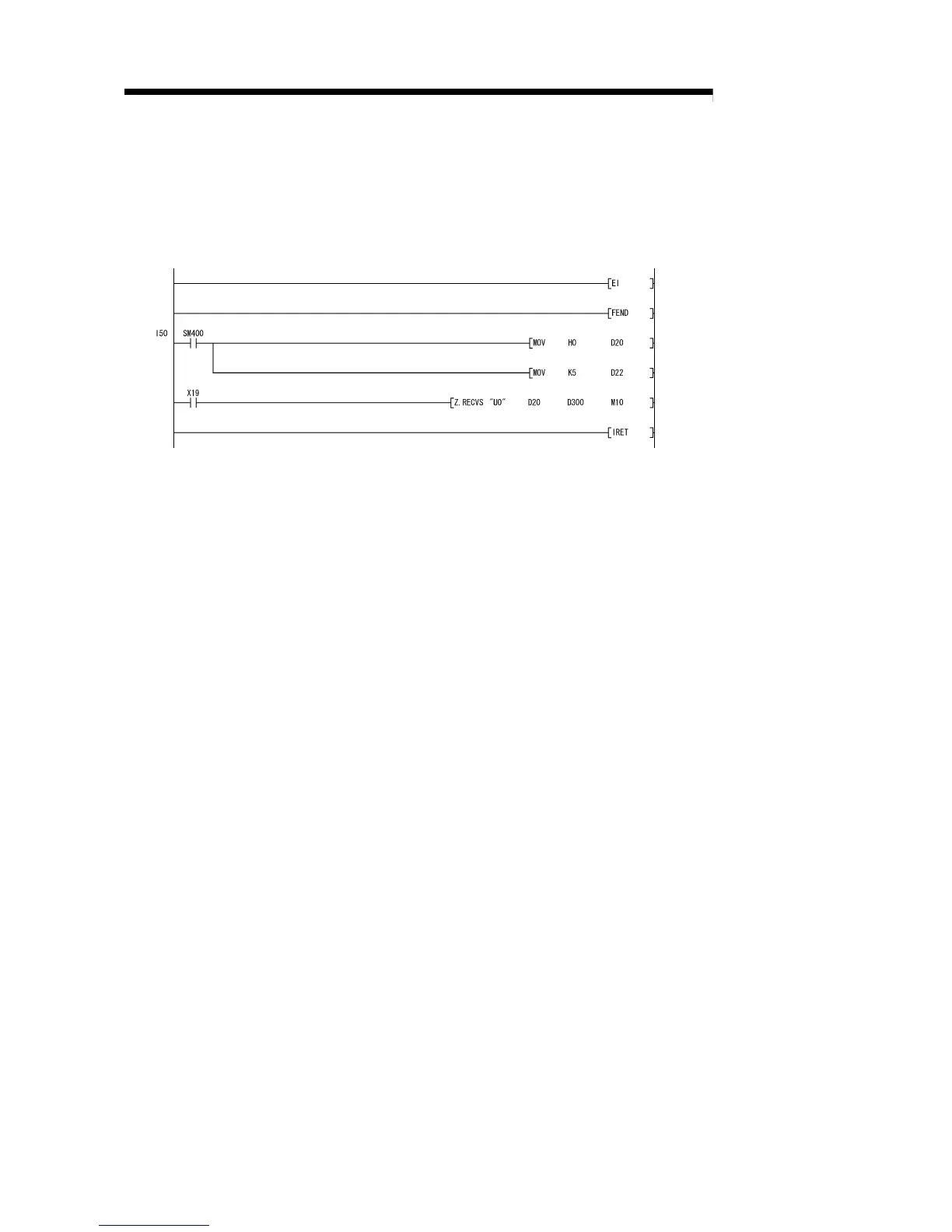

Program example
The following example shows an interrupt program that reads the receive data from
channel 5.
When I/O signals of the Ethernet module are X/Y00 to X/Y1F
Local station storage channel
X19: Initial normal completion
signal
