MELSEC-Q
6 DEDICATED INSTRUCTIONS

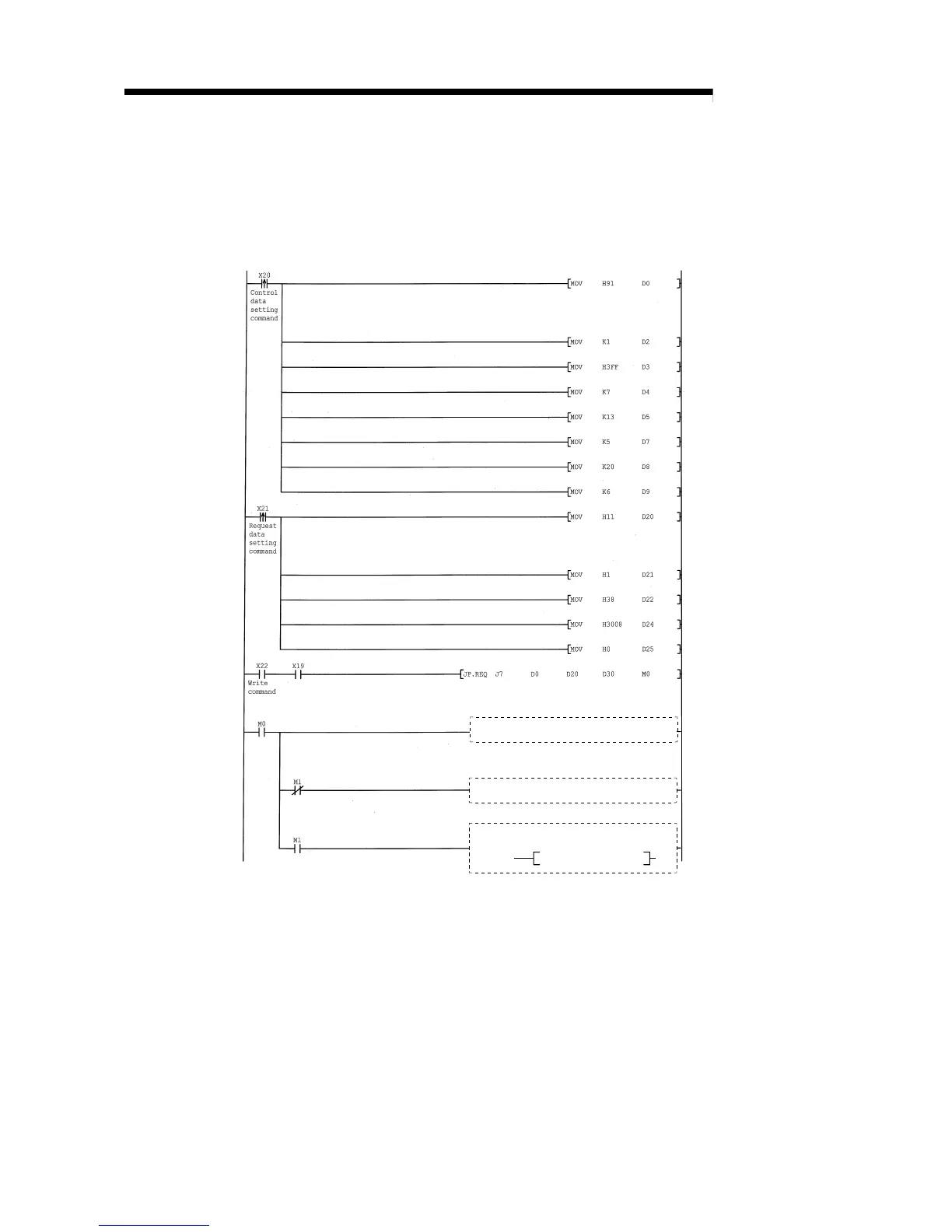

Program example
The following example shows a program that writes the clock data (8:30:00) to the
Q/QnACPU of station number 13 having network number 7.
When I/O signals of the Ethernet module are X/Y00 to X/Y1F
Clock data setting required
Channel used by the local
station
Request data length (6 words)
Read error code, etc.
Arrival monitoring time (20 s)
Target station number
Number of resend
Request type
Subrequest type
Change pattern
Target station network number
X19: Initial normal completion
signal
Hour/minute (8:30)
Second (00s)
Processing program on instruction
completion
Processing program on normal completion
Processing program on abnormal
completion
MOV D1 D100
Target station's CPU type
(target CPU)
