6 DEDICATED INSTRUCTIONS
Program example

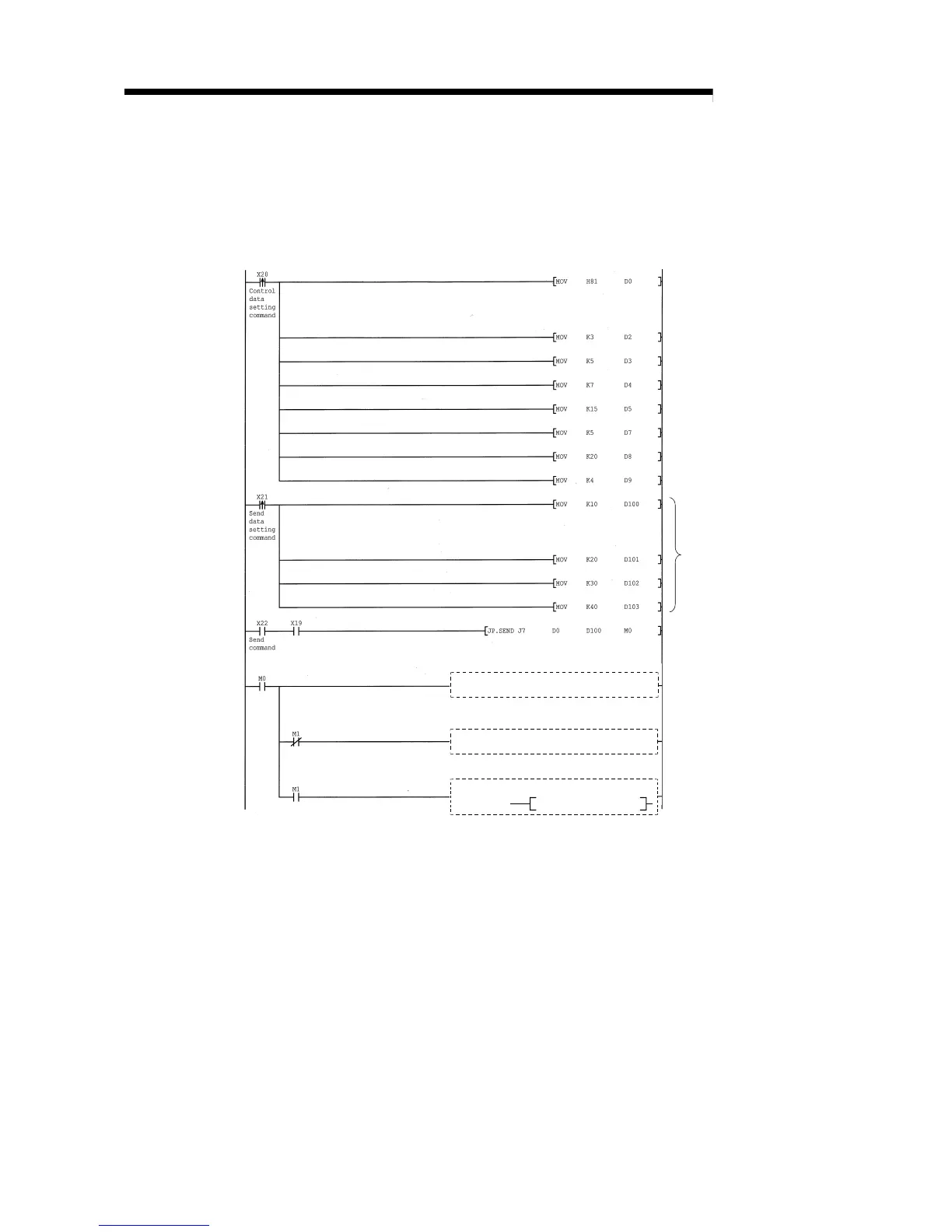

The following example shows a program that sends data to channel 5 of station
number 15.
When I/O signals of the Ethernet module are X/Y00 to X/Y1F
With arrival confirmation/
clock data setting required.
Local station usage channel
Target station network number
Send data length (4 words)
Performs error code reading, etc.
Delivery monitoring time (20 s)
Target station storage channel
Target station number
Number of resend
Send data
X19: Initial normal completion
signal
Processing program when send completion
Processing program when abnormal
completion
Processing program when normal completion
MOV D1 D200
