Mitsubishi QJ71E71-100 User Manual

4 - 17 4 - 17
MELSEC-Q
4 WHEN THE QCPU ACCESSES THE OTHER STATION PLC USING THE
DATA LINK INSTRUCTION

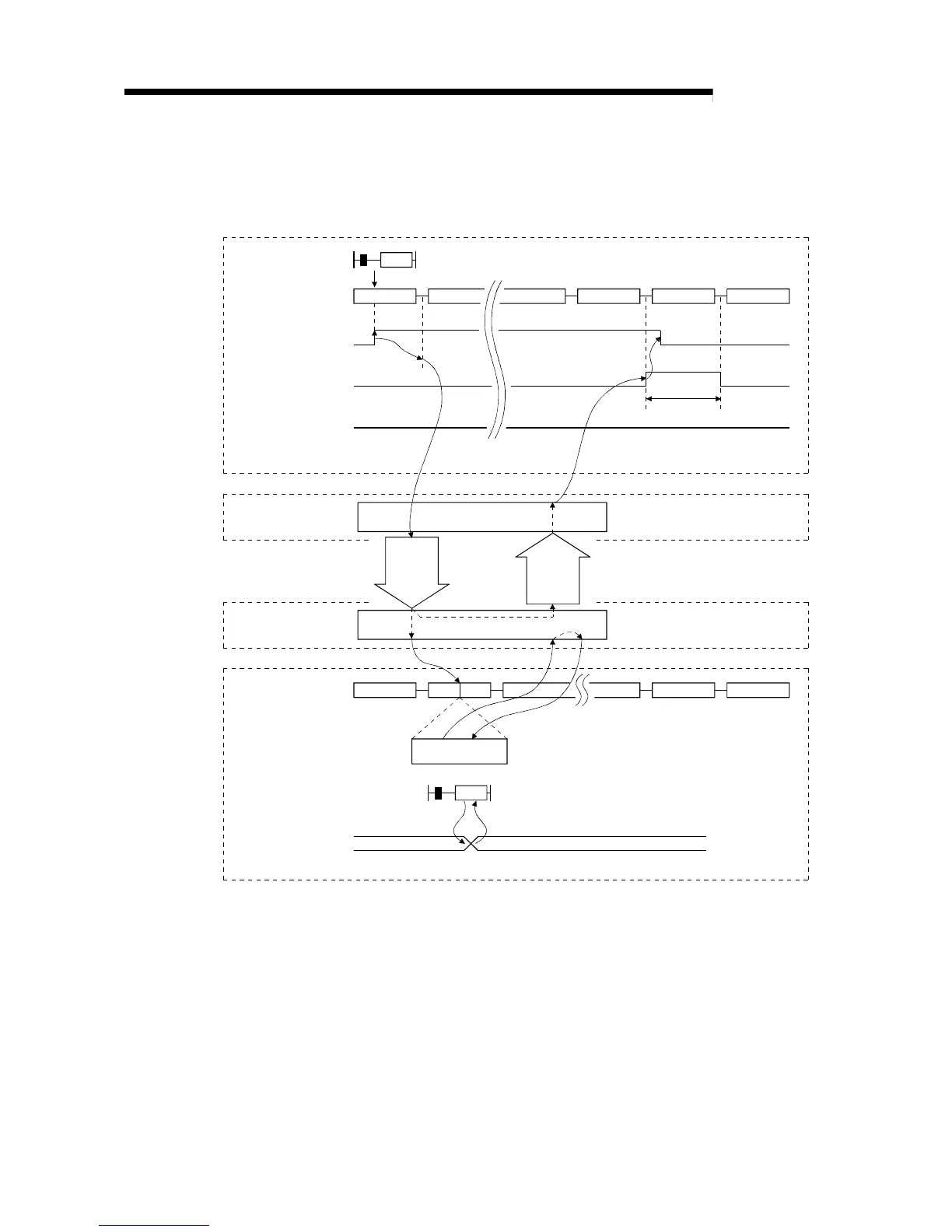

(2) Execution timing of the instruction (When executing reception
processing by an interrupt program)
(a) When normal completion
Channel 3
Channel 1
0 END
Sequence scan
0END
0 END
0 END 0 END
Send command
SEND
(With arrival confirmation)
1 scan
0 END
Sequence scan
0END0 END 0 END
RECVS
0 END 0
? Receive data
OFF
Send completion device
(Device designated with (D))
Sending side
Q/QnACPU
Send completion device
((D)+1 device)
Ethernet
module
Ethernet
module
Receiving side
QCPU
Receive data
storage device
(Device designated with (D1))
Interrupt program
Data
sending
Storage
complete
