8. Exploded Views

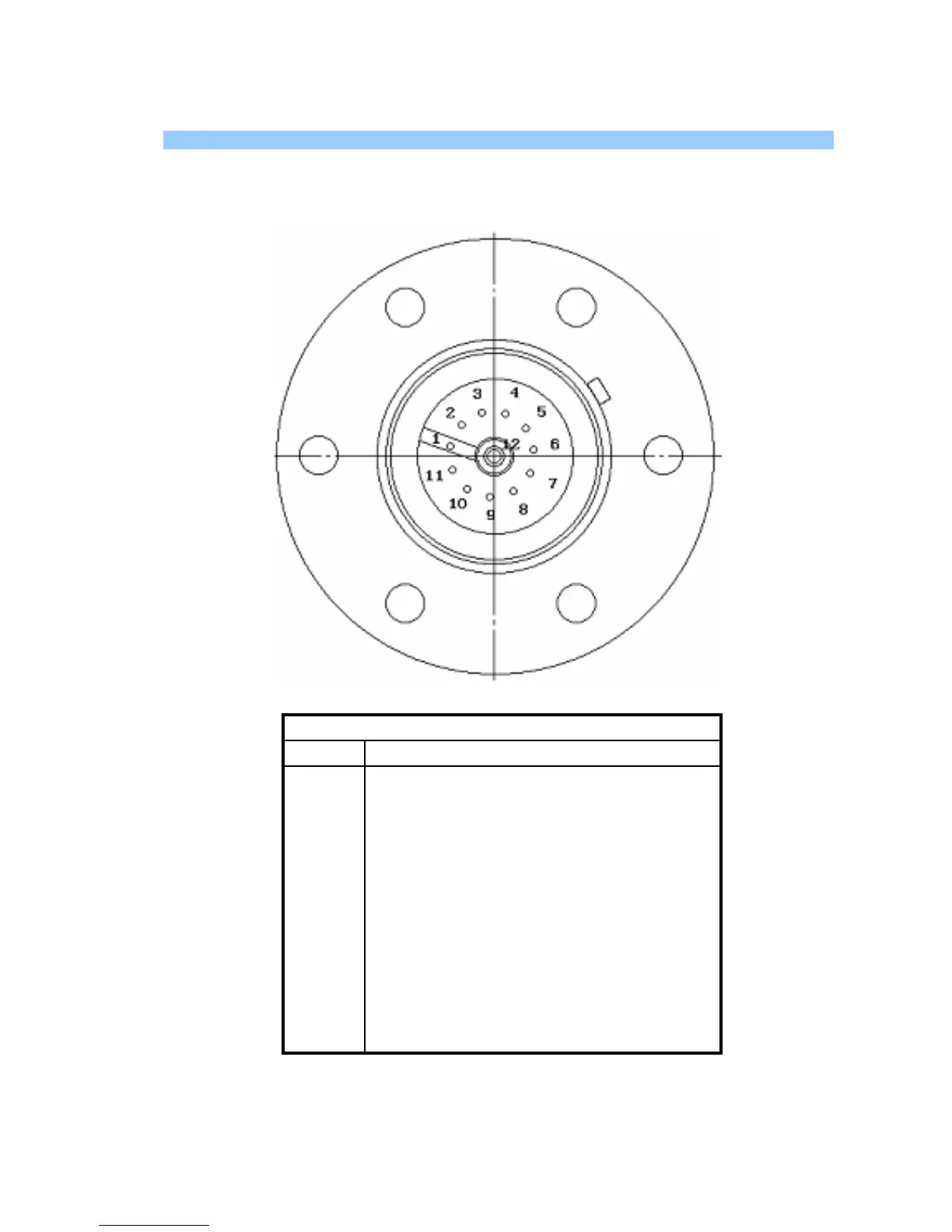

8.1 Analyser Flange pin-outs
Pin Descriptions
Pin Connection
1 Earth
2 Source plate
3 Electron Multiplier
4 Filament 1
5 Extraction plate
6 Suppressor plate
7 RF.1
8 Repeller plate / filament common
9 No connection
10 Filament 2
11 RF.2
12 Collector
