MKS Instruments UK Ltd
Microvision2 Hardware Manual – SP101015.102 August 2010
27

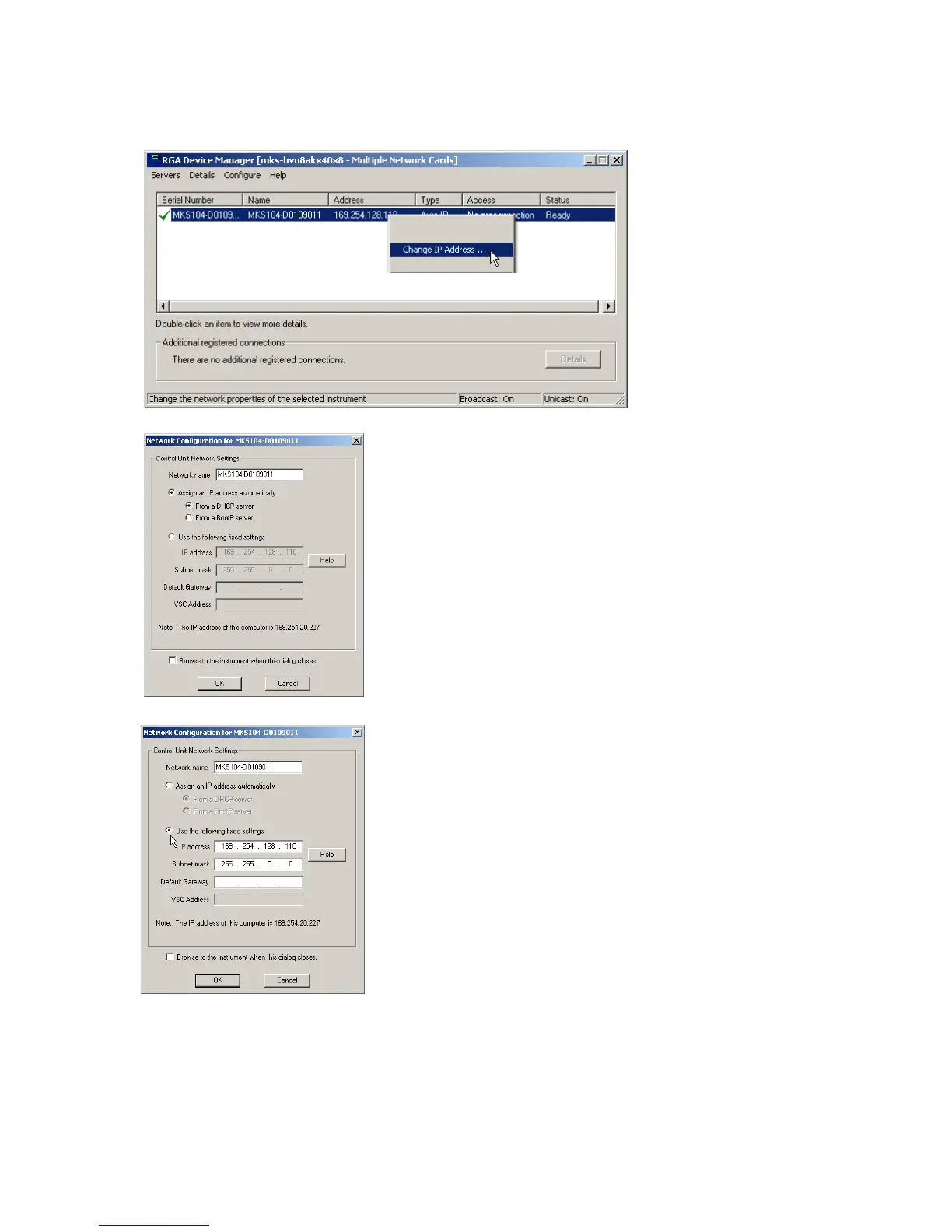

Right-click the instrument and select “Change IP Address”.
You can see that the Microvision2
is configured to receive an IP
address.
We must change this option to continue.
Select the “Use the following fixed settings” option.
Enter the IP address and the Subnet issued to you by your IT
Specialist.
The “Default Gateway” is used in situations where multiple networks
exist, or for connection to the Microvision2
from outside its local
network. Your IT Specialist will instruct you on what to enter here,
otherwise leave it blank.
Once the relevant information has been entered, click OK to store and
commit the changes to the Microvision2
.
To Next Page
