MKS Microvision2 User Manual

MKS Instruments UK Ltd
Microvision2 Hardware Manual – SP101015.102 August 2010
45
10. Exploded Views

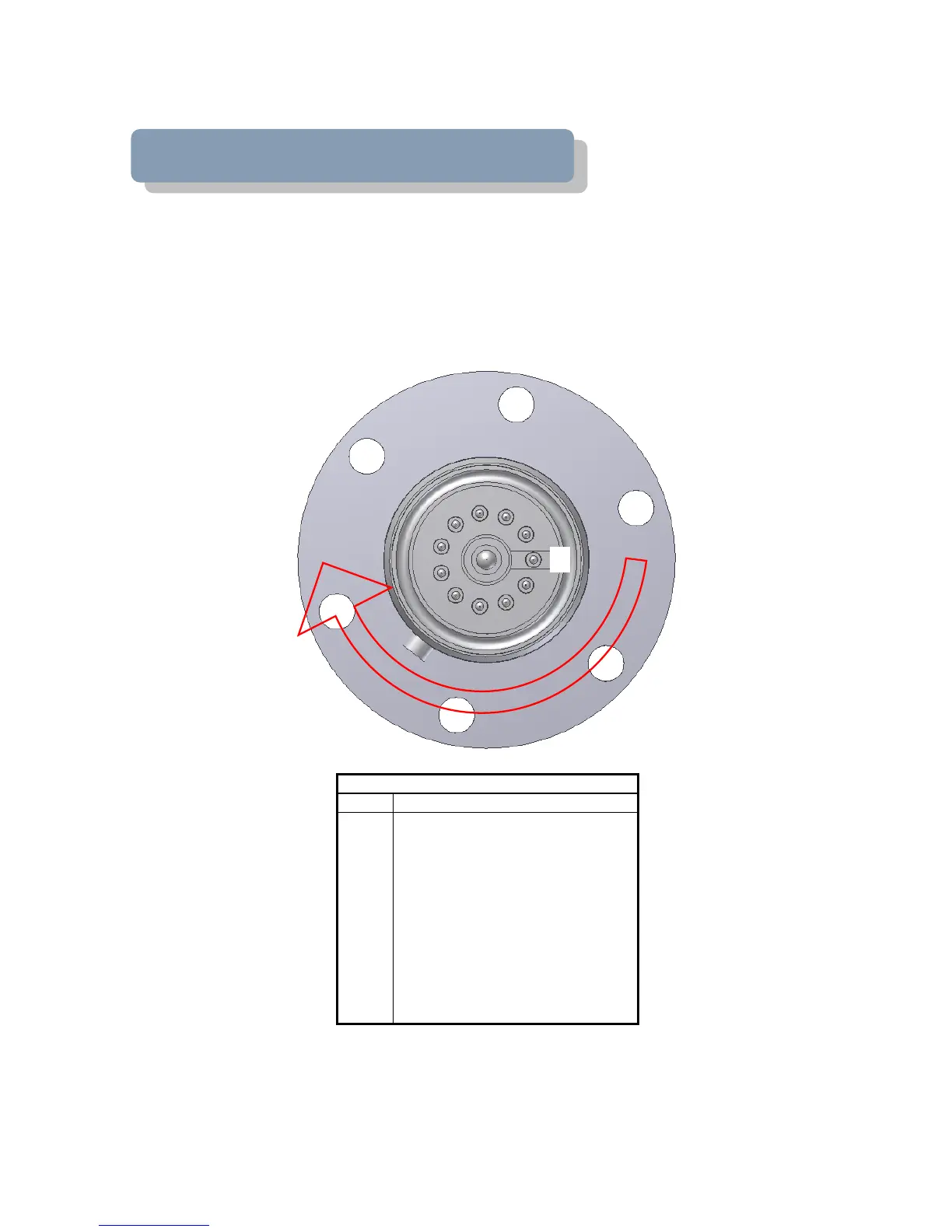

Analyser pin-outs
Pin 1 is easily identified as it is the only pin with a metalized contact running through it. The pins are
numbered clockwise from this pin.
Pin Descriptions
Pin Connection
1 Earth
2 Source plate
3 Electron Multiplier
4 Filament 1
5 Extraction plate
6 Suppressor plate
7 RF.1
8 Repeller plate / filament common
9 No connection
10 Filament 2
11 RF.2
12 Collector
