1.2 Technical Specifications

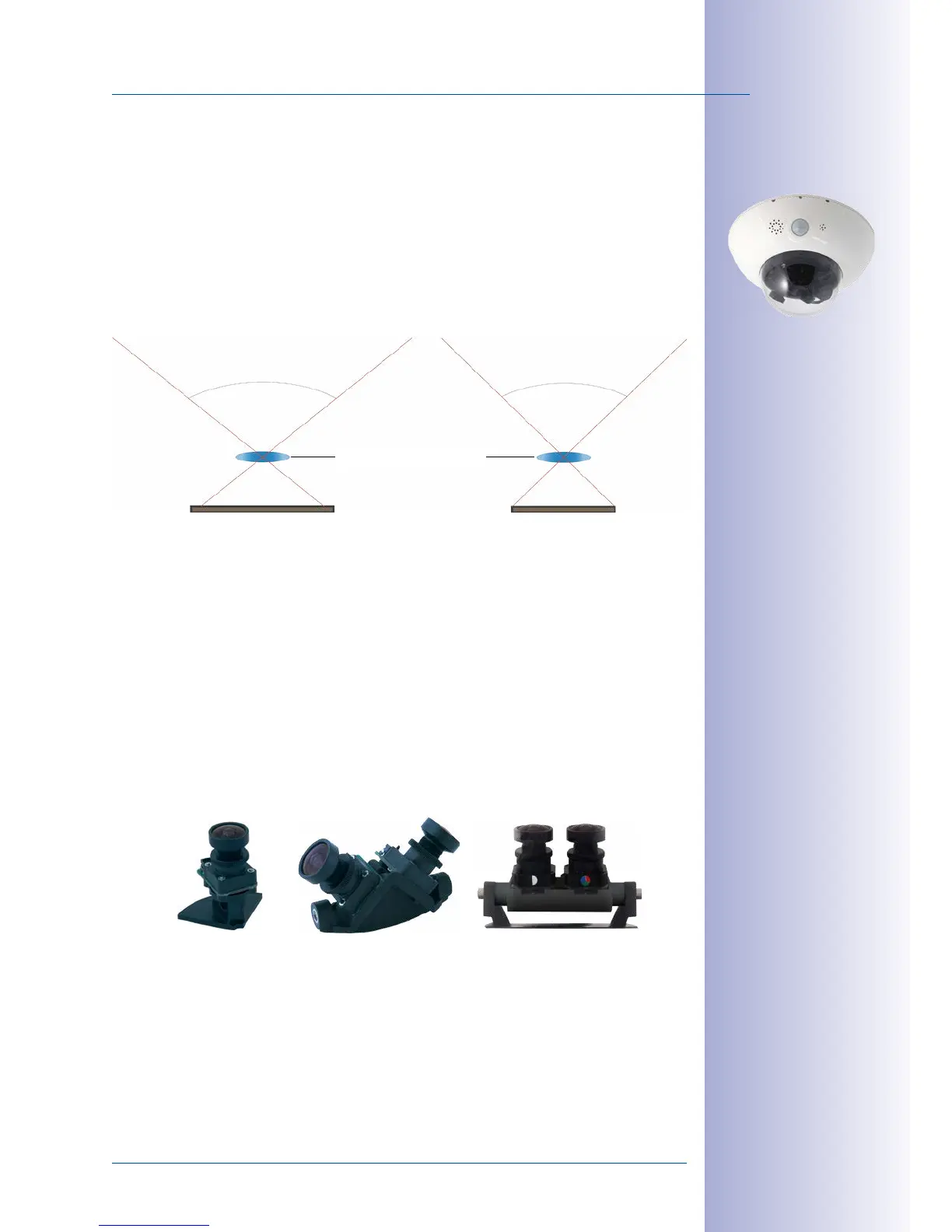

1.2.1 D15 Lens Options
Since MOBOTIX cameras are backlight-proof, none of these lenses requires a mechanical
auto iris, thus making the camera extremely robust and maintenance-free.
The D15 can take two optical lens units as required. The lens units are available with 6MP
or 5MP image sensors, resulting in dierences in the lenses’ angles of view:
Designation of the Lens Units
Since the angles of view for the same lens change depending on the image sensor used
(6MP or 5MP, see above), the lenses have dierent focal lengths (35 mm equiv.) and thus
two designations. For example, a super-wide-angle lens with a nominal focal length of
3.6 mm has these 35 mm focal lengths and designations:
• With
6MP image sensor: 20mm focal length (35mm equiv.) ➝ L20
• With 5MP image sensor: 23mm focal length (35mm equiv.) ➝ L23
When showing the dierent types of lenses, these designations are combined: L20-L23 .
Types of Lens Units
6MP image sensor (1/1,8")
Lens L20, image format 4:3
105° 92°
5MP image sensor (1/2.5")
Lens L23, image format 4:3
MOBOTIX lens L20-L23
Lens unit
(single)
2 lens units on lens bridge
180°
2 lens units on lens bridge
Day&Night
