D15 Camera Manual: Product Overview
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
1.3.3 Standard Delivery – D15-DNight

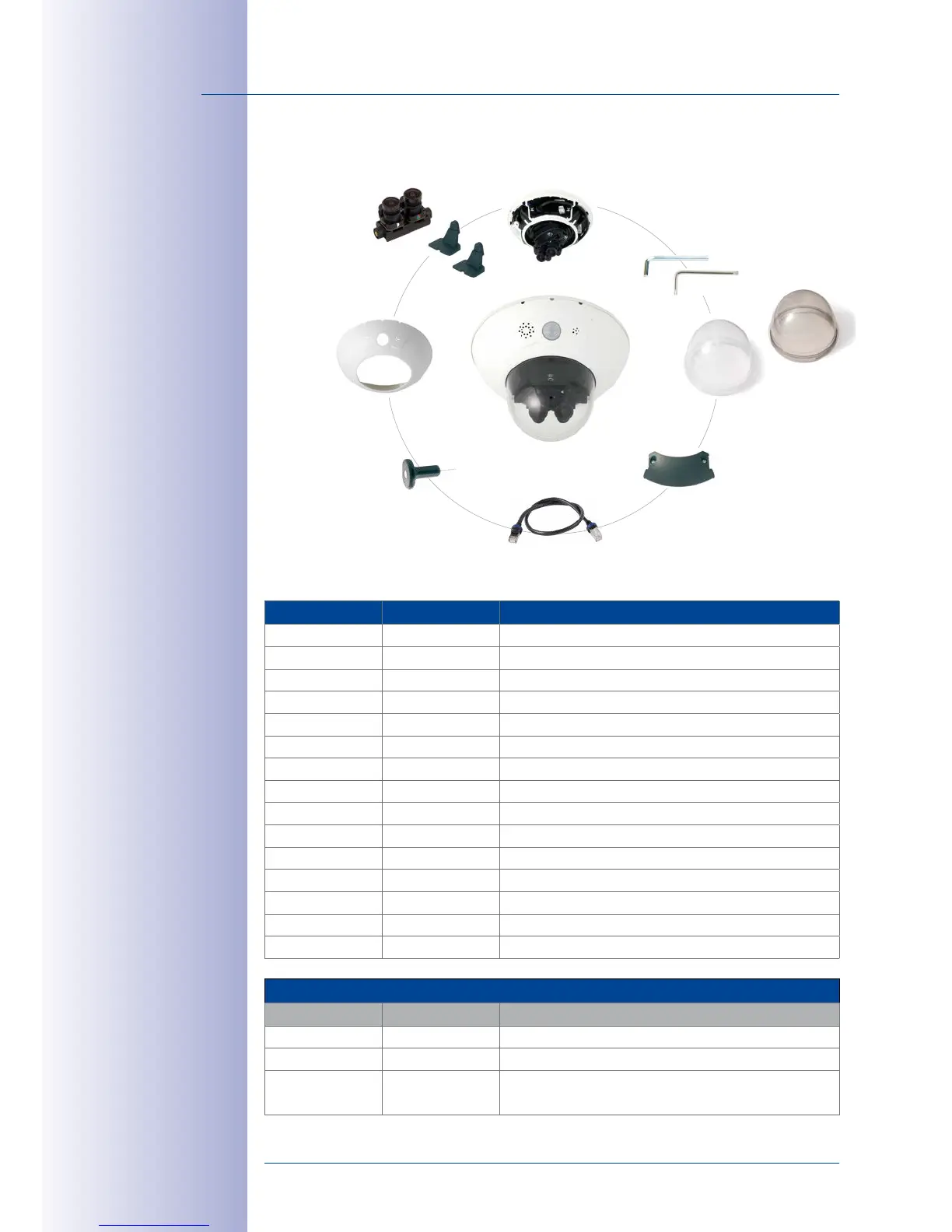

Item Number Part Name
3.1 1 Camera housing
3.2 2 Lens (installed)
3.3 2 Lens mount (installed)
3.4 – (Removed)
3.5 2 Sensor cable (installed, not shown)
3.6 1 Cable cover (installed)
3.7 2 XL Dome (1x transparent– installed, 1x tinted)
3.8 1 Outer shell
3.9 1 Ethernet cable
3.10 1 Allen wrench 3mm
3.11 1 TX20 Torx wrench
3.12 1 Custom tool with magnet
3.13 1 MxBus connector (installed, not shown):
3.14 1 Lens bridge (installed)
3.15 1 MicroSD card (SDXC, SDHC pre-installed)
Installation accessories
Item Number Part Name
M.3.1 3 Screw anchors 8mm
M.3.2 3 Stainless steel washers, diam. 5.3mm
M.3.3 3 Stainless steel wood 4.5 x 60mm screws with TX20
head
Custom tool
with magnet (item 3.12)
Outer shell (item 3.8)
3 mm Allen wrench (item 3.10)
TX20 Torx wrench (item 3.11)
Camera housing (item 3.1)
XL domes (item 3.7),
1x transparent, 1x tinted
Cable cover (item 3.6)
Ethernet cable (item 3.9)
2 lenses (item 3.2)
2 lens mounts (item 3.3)
1 lens bridge (item 3.14)
