Delivered Parts
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

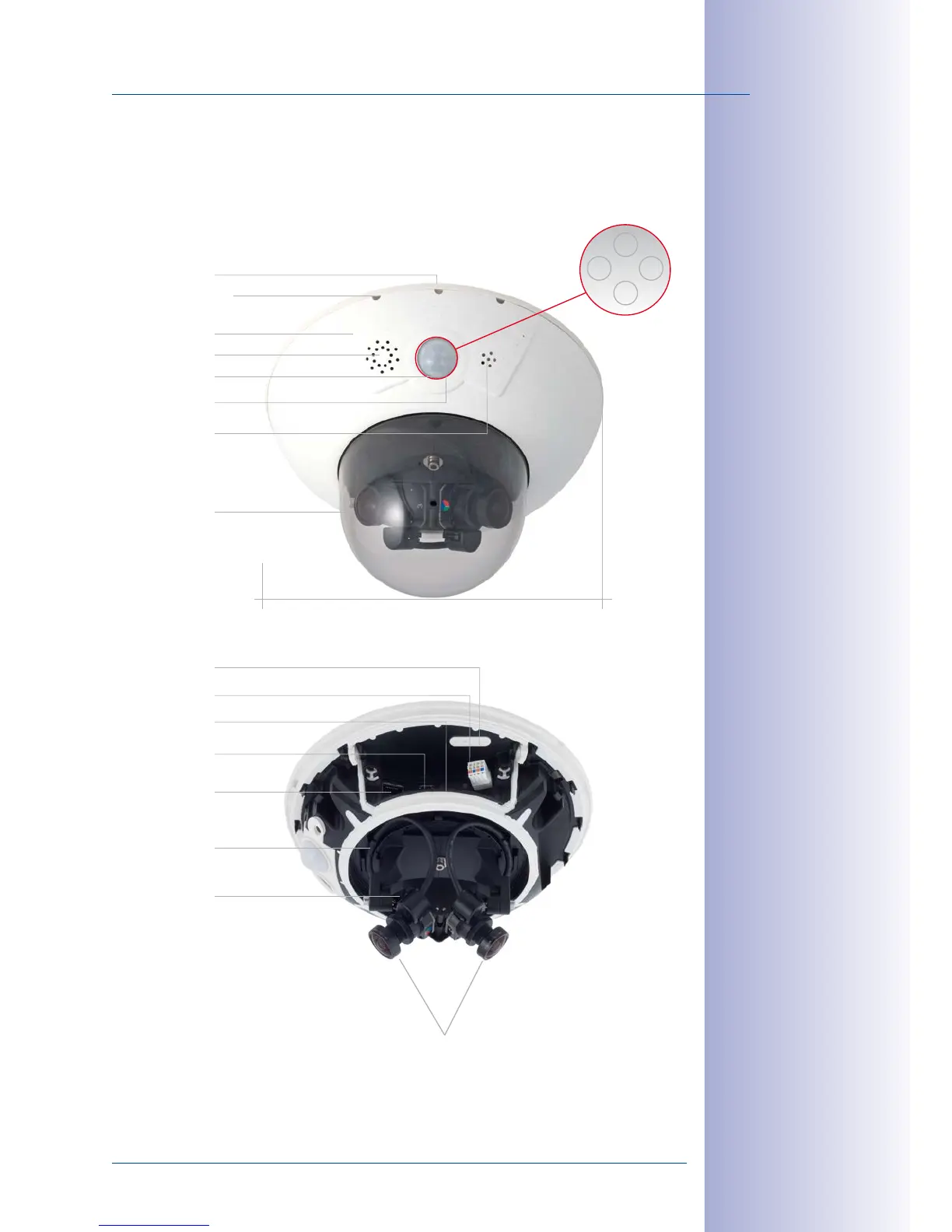

Camera Housing and Connectors– D15-180
The MOBOTIX D15-180 consists of three main components (camera housing, outer shell
and dome).
4 2
3
1
4 LEDs (behind PIR
cover)
Speaker
XL dome
PIR sensor
Lens bridge
Sensor cable
MicroSD card
MxBus
MxBus cabling
MiniUSB
Ethernet
Washer
Water outlet open-
ings
Outer shell
Microphone
Two fixed lenses L20-L23
Ø 205mm/8.07in
125mm/4.92in
LED default settings:
1 Power (on), error (ashes)
2 Recording (ashes)
3 Off
4 Off
