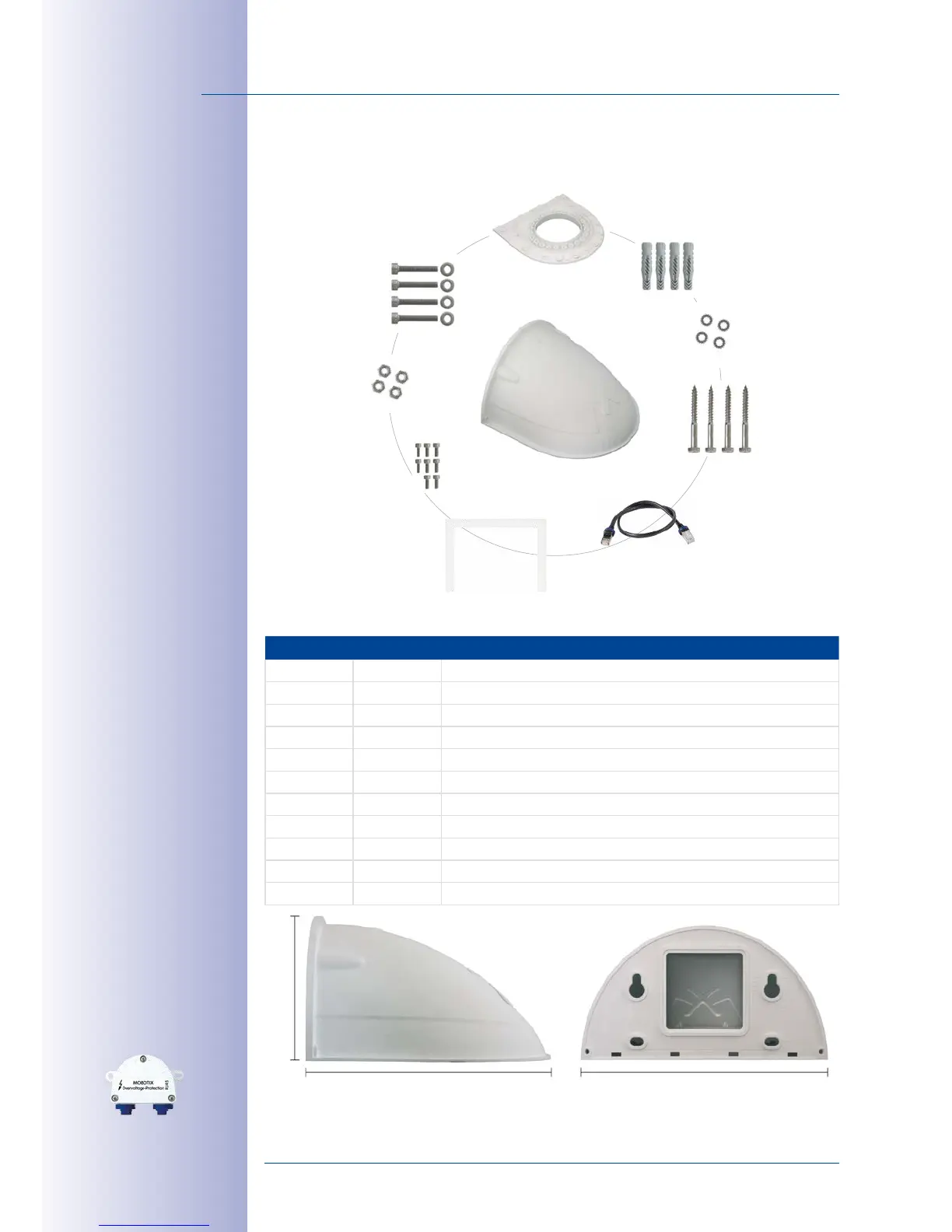

1.3.4 Delivered Parts for the Outdoor Wall Mount (Accessory)
Item Number Part Name
4.1
1 Outdoor wall mount
4.2 1 Bottom plate
4.3 4 10-mm screw anchors
4.4 4 Stainless steel washers, diam. 9mm
4.5 4 Stainless steel wood 8 x 70mm screws
4.6 1 Ethernet cable 1m
4.7 1 Wall sealing
4.8 8 Stainless steel Allen screws M4x10mm
4.9 4 Stainless steel hex nuts M4
4.10 4 Stainless steel Allen screws M4x25 mm
4.11 4 Stainless steel washers, diam. 4.3 mm
Make sure to check the
delivered parts
8 Allen screws
M4x10 mm (item 4.8)
4 screw anchors, 10 mm
(item 4.3)
Bottom plate (item 4.2)
4 washers
diam. 9 mm (item 4.4)
Wall sealing
(item 4.7)
4 Allen screws, M4x25 mm
(item 4.10)
4 washers, diam. 4.3 mm
(item 4.11)
4 hex nuts, M4
(item 4.9)
Ethernet cable 1 m
(item 4.6)
4 wood screws, 8x70 mm
(item 4.5)
The original cable sup-
plied with the D15 must
be exchanged for a 1-m
long Ethernet patch
cable to mount the cam-
era with a wall mount
Height: 160mm/6.3in
Width: 293 mm/11.54inDepth: 275 mm/10.83in
The 90 x 90 mm space
covers in-wall and on-wall
sockets as well as an
Interface Box that is
attached to the wall
