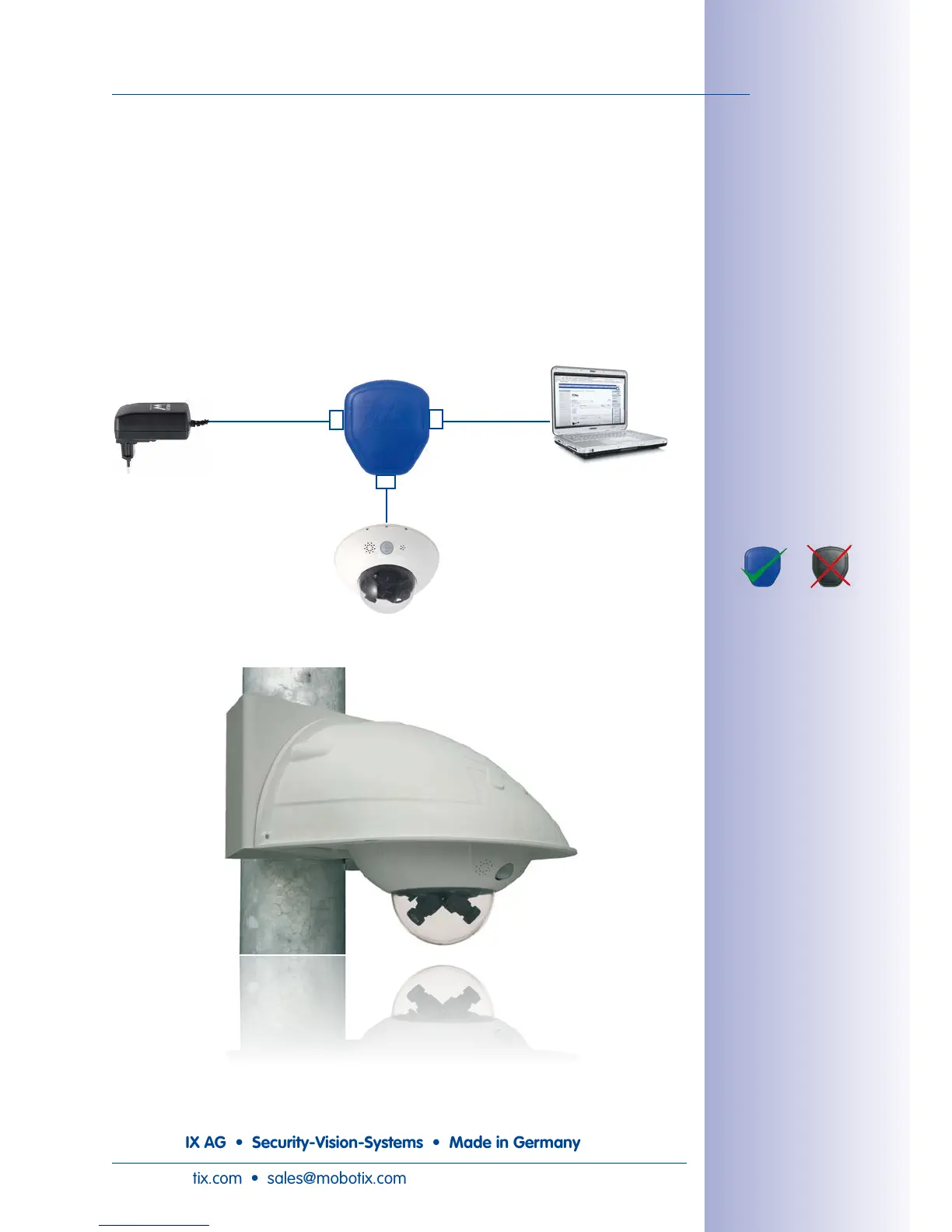

2.7.4 Power Supply When Connected Directly to a Computer
1. Connect the factory pre-installed cable of the camera to the camera connector of
the PoE adapter.
2. Connect the PC/Power connector of the PoE adapter to the Ethernet port of the
computer.
3. Plug the RJ45 connector of the power supply unit into the LAN/Power connector
of the PoE Adapter.
The IP addresses in
the diagram are shown
only as an example
For the D15 you
should use the blue
MX-NPA-PoE-Set or the
MX-NPA-Box – previous
MOBOTIXnetwork power
accessories, such as the
NPA-Set, Power-Box and
Power-Rack (MX-NPA-
Set, MX-NPR-4 and
MX-NPR8/20) are
not suitable for use
with the D15.
PoE adapter
(MX-NPA-PoE)
