2.4 Mounting the Camera with Outdoor Wall Mount
2.4.1 Aiming the Passive Infrared Sensor (PIR)

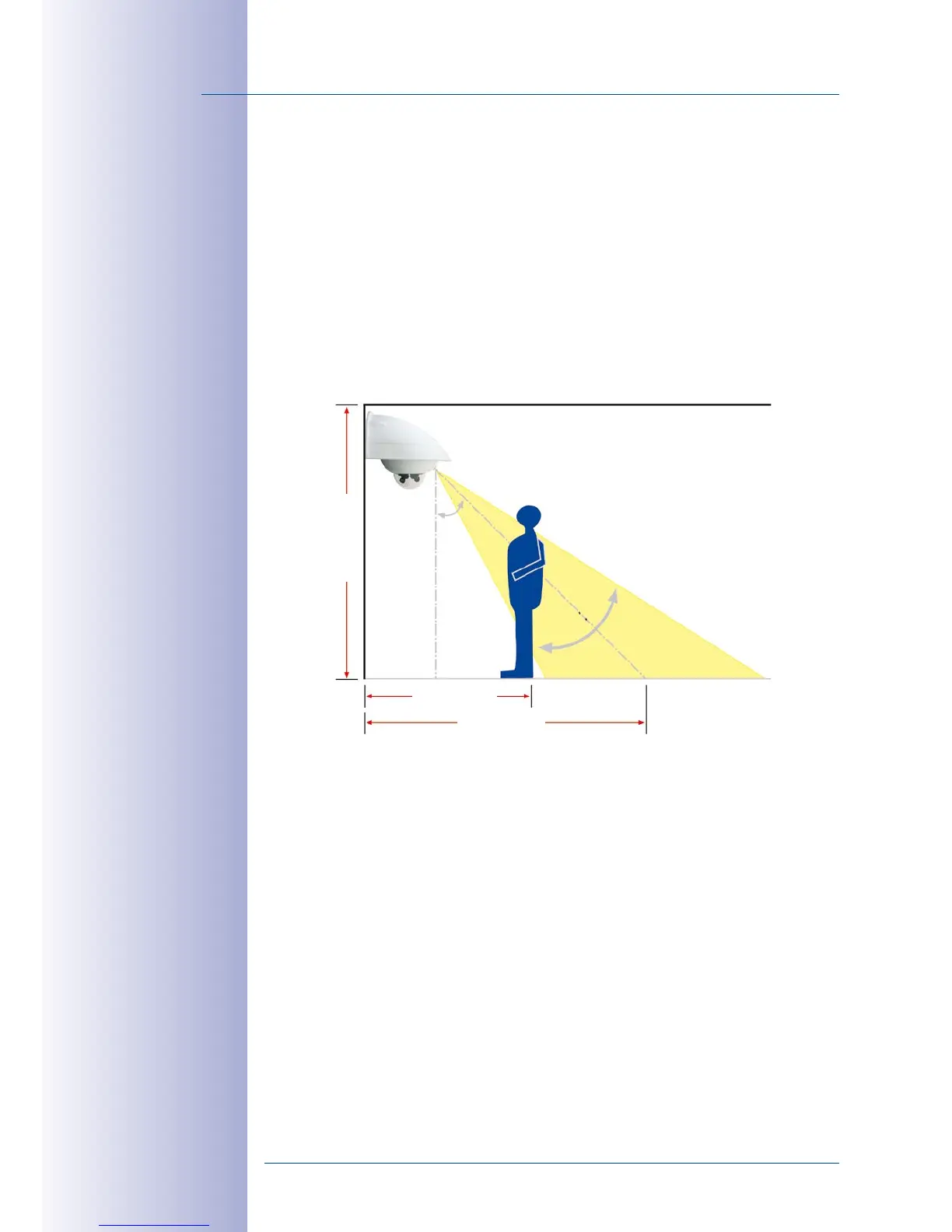

When mounting the camera, make sure that the PIR sensor points into the direction where
it is most useful. The PIR sensor has a range of approximately 10m and a detection
angle of approximately ±15 degrees.
The positions that are available depend on how high the MOBOTIX D15 has been mounted
and the alignment of the camera on the bottom plate, which can be completed in 15°
increments.
Hint: It may be useful to mark the ideal position of the PIR sensor on the bottom plate
with a pencil.
1.50m/4.9ft
2.90m/9.5ft
2.80m/9.2ft
30°
45°
PIR data: range approx.
10 m, eld of view +/-15°
