2.11.4 Power Supply When Connected Directly To A Computer

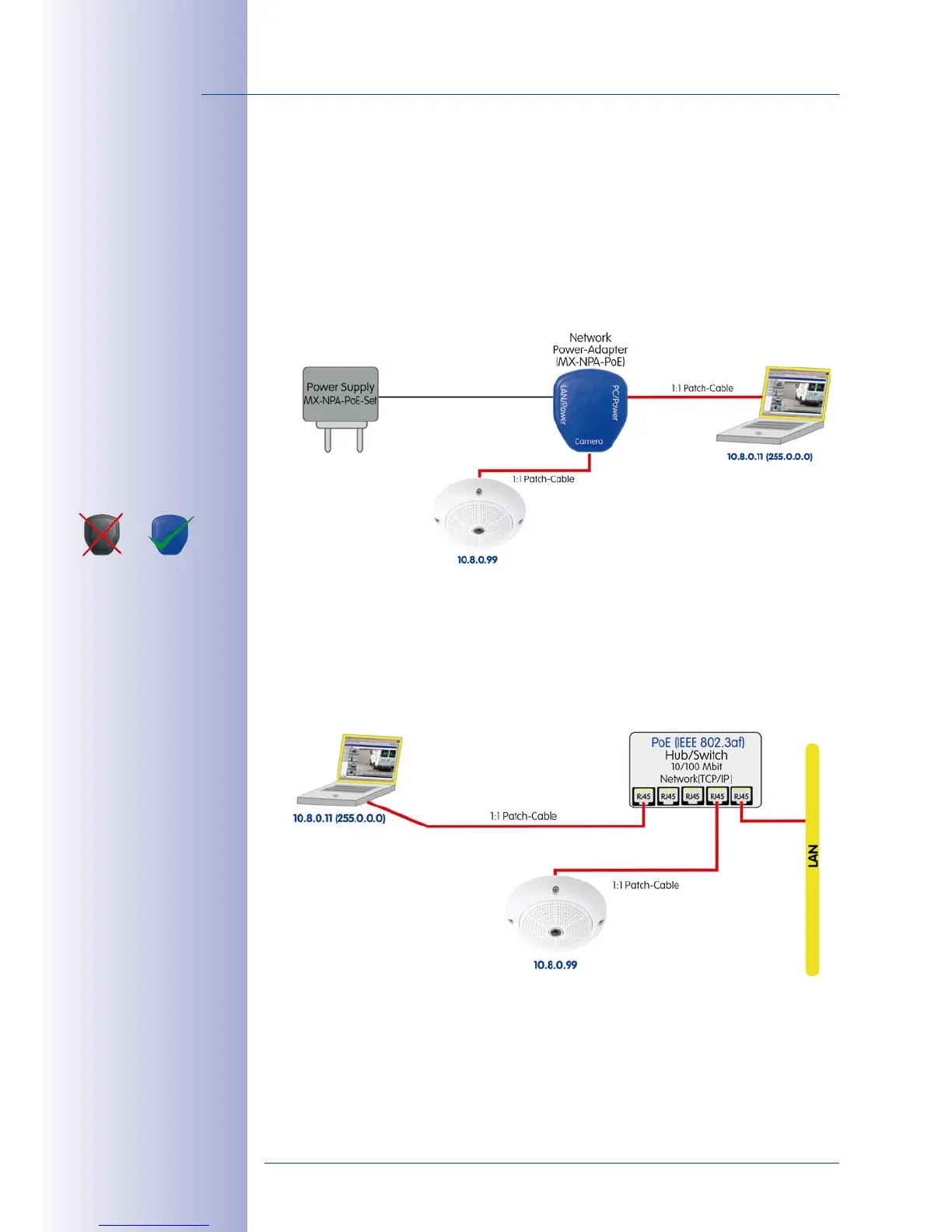

1. Connect the factory pre-installed cable of the camera to the Camera connector of
the Network Power Adapter.
2. Connect the PC/Power connector of the Network Power Adapter to the Ethernet
port of the computer.
3. Plug the RJ45 connector of the external power unit into the LAN/Power connector
on the Network Power Adapter.
2.11.5 Power Supply (PoE IEEE 802.3af) Using Power-over-Ethernet Products
Connect the factory pre-installed cable of the camera to the Ethernet connector of the PoE
switch/router. The switch/router must support the PoE standard IEEE 802.3af.
The IP addresses in the
gures are only examples!
Only use the new (blue)
MX-NPA-PoE set
for the Q24M - the
MOBOTIX Network
Power accessories NPA-
Set, Power-Box, and
Power-Rack (MX-NPA-
Set, MX-NPR-4
and MX-NPR8/20)
are not compatible
with the Q24M
The IP addresses in the
gures are only examples!
