2.7.3 Procedure
In order to install the Vandalism Set, replace the white plastic outer shell of the Q24M,
including the Allen screws, with the stainless steel cover, the security screws and the four
spacers of the Vandalism set.

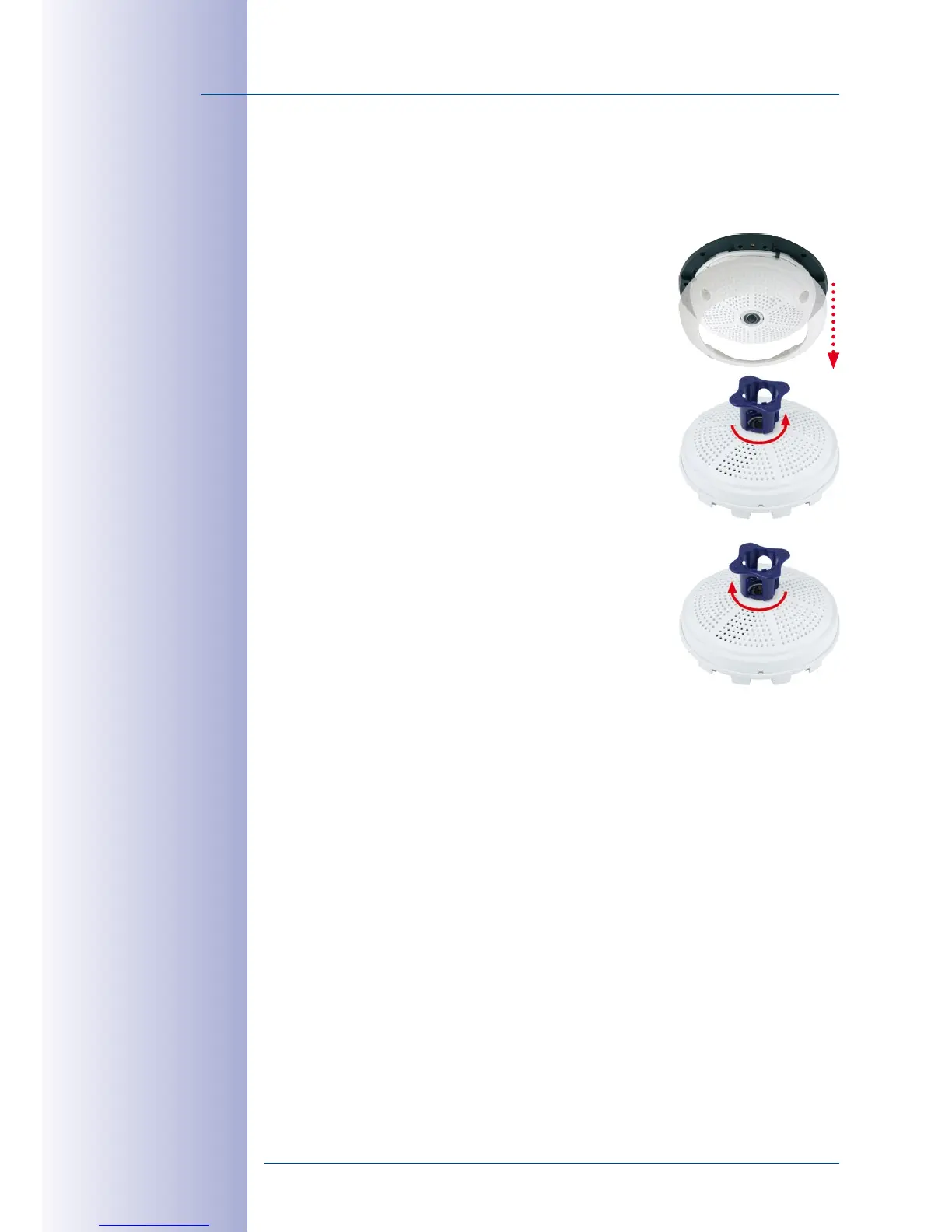

1. Remove the outer shell: Remove all four Allen screws
using the supplied Allen wrench and lift o the outer shell.
2. Remove the lens gasket: Unscrew the lens using the
lens wrench (included with the camera) and remove
the lens gasket.
3.
Replace the lens: Screw the lens back in using the lens
wrench.
4. Adjust the live image: Establish a connection to the camera as described in
sections 3.1 and above. The live image from the camera should be visible on the
computer monitor. Select the highest available image resolution. Check image
sections (image center and focus) on the computer monitor and adjust the lens
with the lens wrench if necessary.
5. Clean the lens: If necessary, gently clean the front of the lens with a soft cotton
cloth. Caution: Do not apply excessive pressure to the surface of the glass when
cleaning the lens!
