Mounting The Camera With The On-Wall Set
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
Caution
When using the On-Wall Set outdoors, ensure that the screw holes on the rear of the
camera housing are sealed with the foam rubber washers included in delivery (IP65).
2.5.2 On-Wall Set
The On-Wall Set must be
ordered separately from
the MOBOTIX camera.

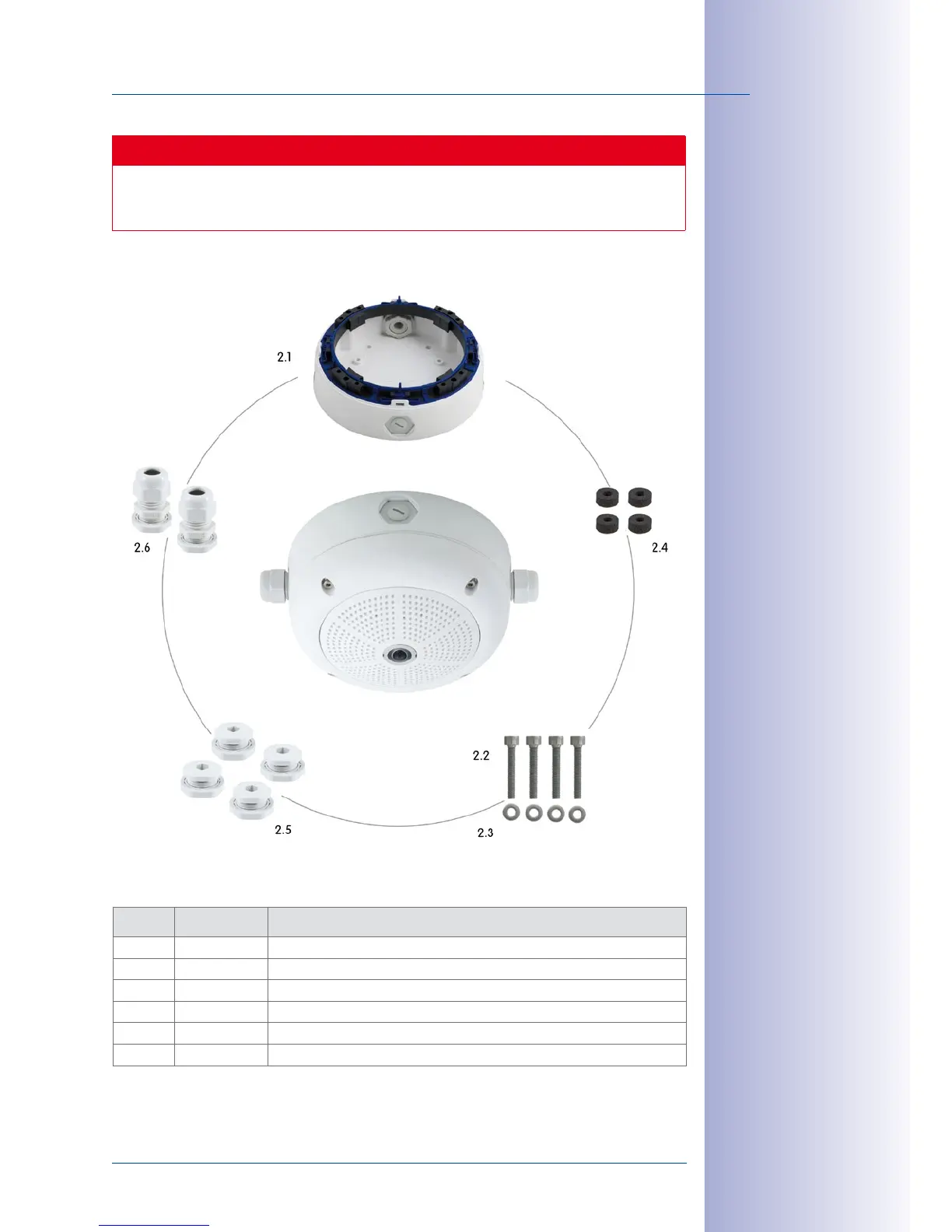

Item Quantity Part Name
2.1 1 On-Wall set housing
2.2 4 Stainless steel Allen screws M4x35 mm
2.3 4 Stainless steel washers Ø 4.3mm
2.4 4 Foam rubber washers
2.5 4 Lock screws with counter nuts
2.6 2 Cable fitting with counter nut and O-ring cord
