Q24M Camera Manual: Installation
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

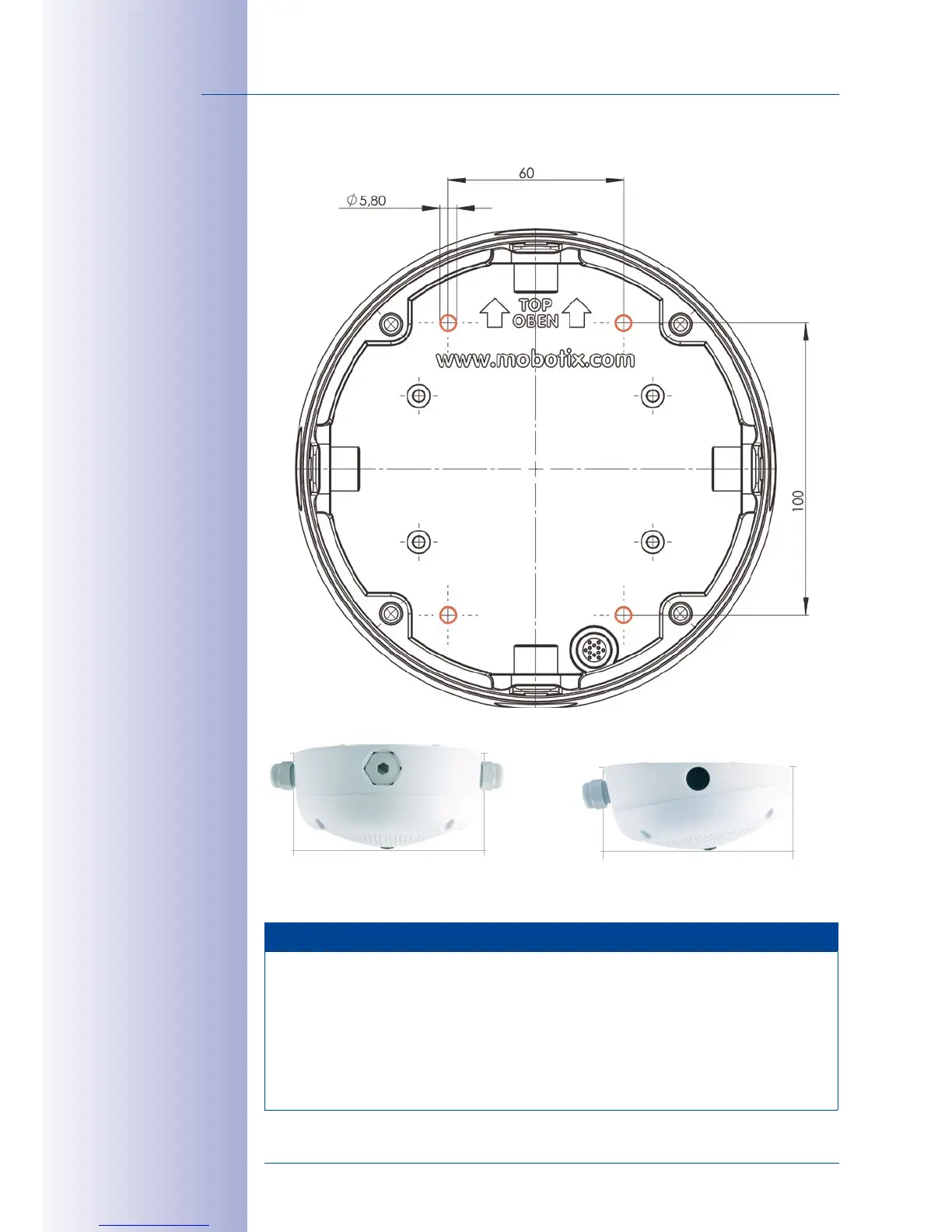

Drilling Template On-Wall Set
Notes
Use the fold-out template included at the end of the printed manual (valid for both
0° and 10° On-Wall Sets).
Make sure that the drilling template is not scaled or adjusted to the paper size when
printing the PDF file (enlarged or reduced).
The maximum torque for all screws is 1 to 1.2 Nm.
Find the drilling
templates (scale 1:1)
at the end of the
manual as a fold-out
ø 166 mm/6.54in
74
mm/2.91in
ø 160 mm/6.3in
85 mm/3.35in
