Preparing The Installation
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
2.1.1 Wall-Mounted
To make optimal use of the high-resolution 180° panorama functionality of the Q24M, the
camera must be mounted on an internal or external wall. The entire hemisphere of the
room directly in front of the camera is then eectively monitored, from the wall on the left
of the camera to the wall on the right. Corresponding fine-tuning in the user interface
software allows the displayed panorama image to be adjusted to dierent practical appli
-
cations (see section 3.3).

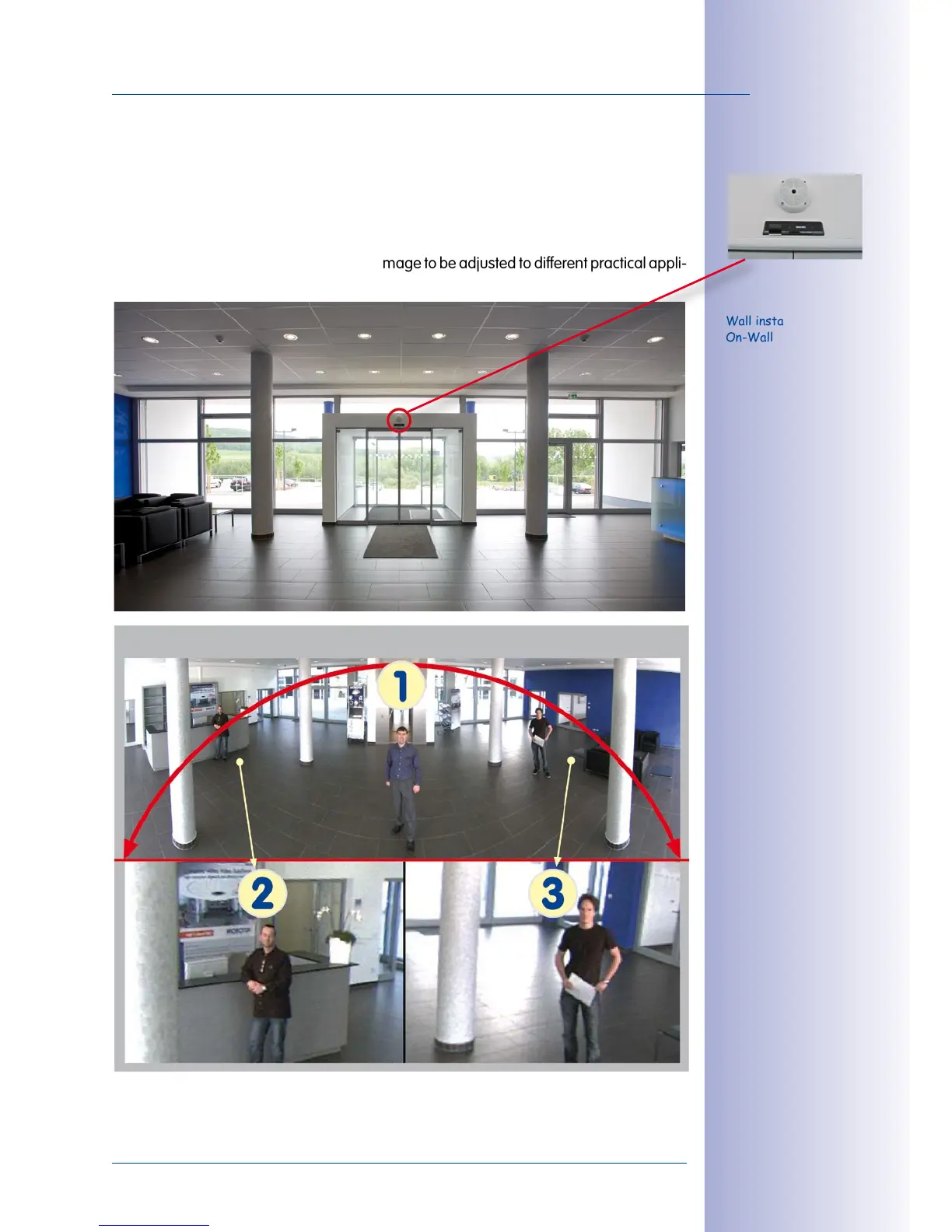

The Q24M Panorama: one camera - three simultaneous views
High-resolution 180° panorama
Virtual PTZ 1 Virtual PTZ 2
Wall installation with
On-Wall Set 10°
The camera should
preferably be mounted in
the middle of the room
to be monitored using
the 10° On-Wall Set
Original image from the
camera shown above using
the 10° On-Wall Set
(Panorama Focus View)
