Selecting An Appropriate Camera Position
The Q24M is primarily suited to providing an excellent overview, and less suitable for
more exact details. For active operation, the camera should be mounted at a (out of
direct reach) height ranging from 2.5 to 3.5 m. People, for example, may be identified
very well at distances of up to 1.5m, and with sucient detail at up to 3m. Objects can
be recognized even at distances of 5 m and more from the camera. During installation,
ensure that the camera is focused on the most important areas of the room as directly
as possible, in order to provide the desired level of detail recognition. For wall installation,
use of the 10° On-Wall Set is ideal in many cases.
Hint: The Q24M should always be installed on a wall such that the arrow on the camera
housing marked OBEN / TOP points towards the ceiling of the room.

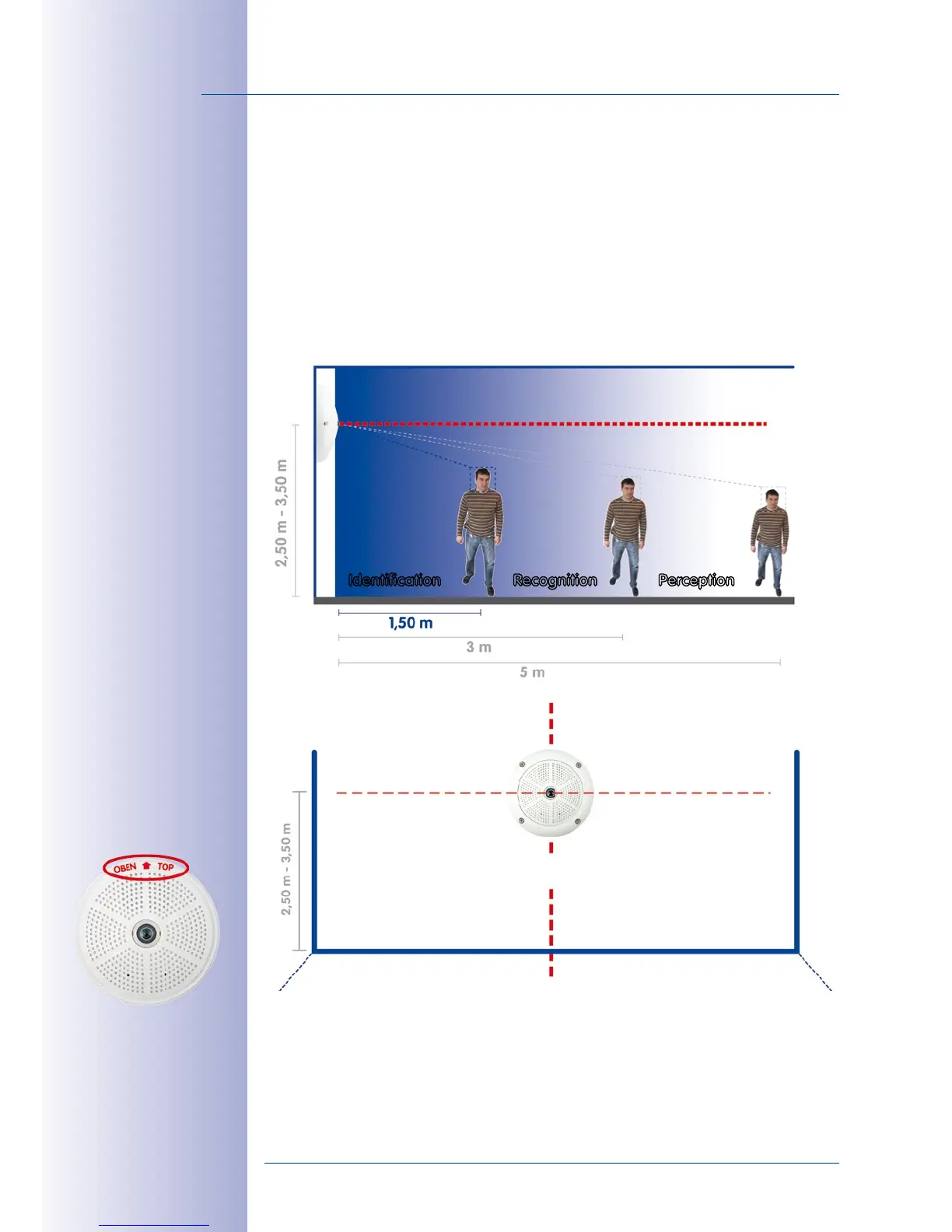

Camera focus (best image quality) - standard installation
Identification Recognition Perception
Mounting in the middle of the wall
Wall Mount: Mounting
the camera in the
middle of the wall
The OBEN / TOP label
is only visible when the
outer shell is removed
