2.4 Mounting The Camera Without Accessories
2.4.1 Mounting Instructions
The Q24M, being an overview camera, is primarily designed for installation on walls
or ceilings. Direct installation of the camera without any accessories is, in general, always
possible, however - due to elevation of the rear casing of the camera where connections
and their holders are - a flush-mounted wall outlet should be installed first.
The drilling template also includes a blue circle marking the minimum size and position
of this wall outlet, in addition to the drilling holes. To guarantee maximum coverage of the
room by the camera, the Q24M should be positioned on the wall or ceiling as close to the
middle of the room as possible.

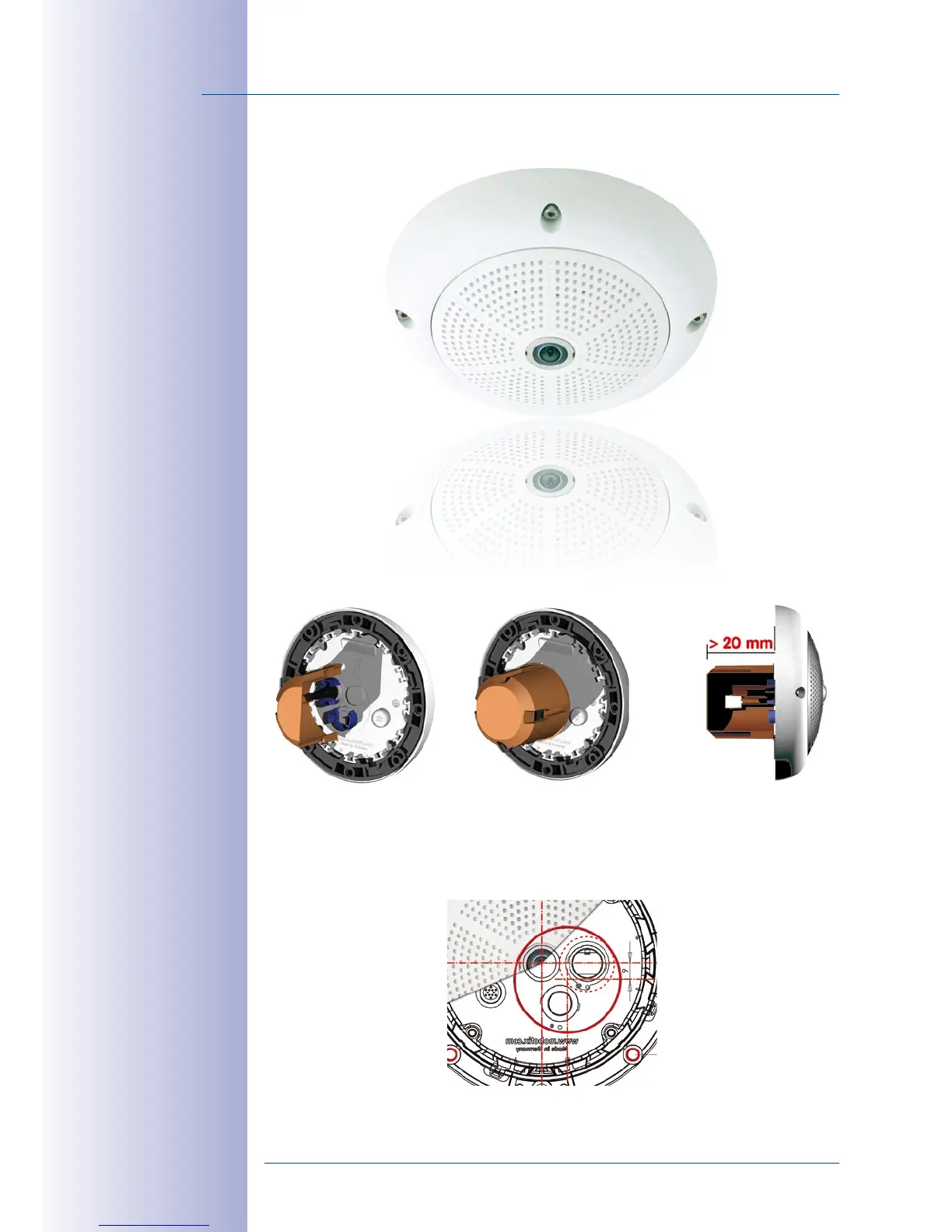

Installation over a stan-
dard ush-mounted wall
outlet (minimum installa-
tion depth 20 mm/8 in)
