Mobotix Q24M - Wall Mount

89/164
Installing The Wall Mount
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com
2.8.2 Wall Mount
5.1
5.4
5.2
5.5
5.8
5.3
5.7
5.6

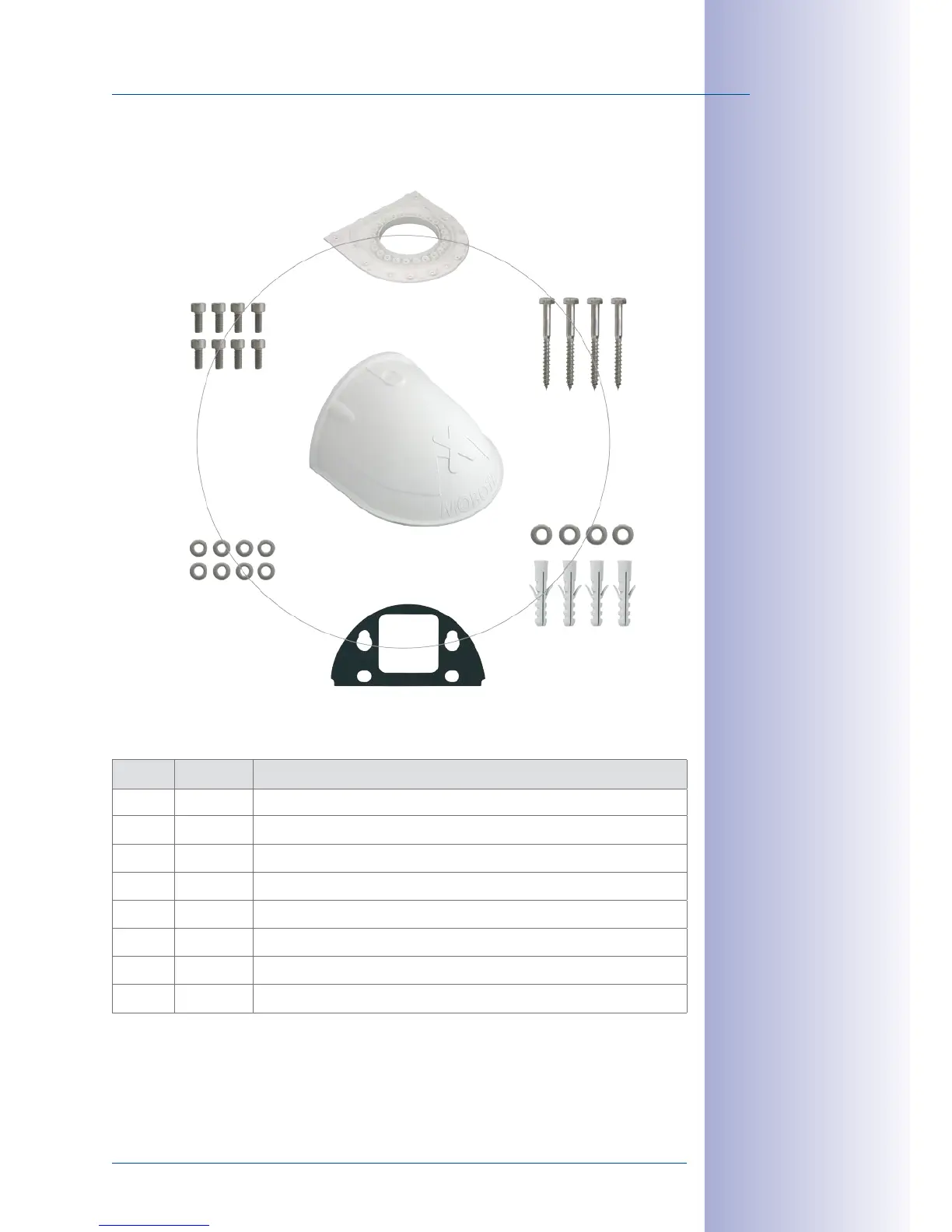

Item Quantity Part Name
5.1 1 Wall Mount
5.2 4 Universal screw anchors 8 mm
5.3 4 Stainless steel washers Ø 6.4mm
5.4 4 Stainless steel wood screws with hex head 6x50 mm
5.5 1 Wall sealing
5.6 8 Stainless steel Allen screws M4x16 mm
5.7 8 Stainless steel washers Ø 4.3mm
5.8 1 Bottom plate
