Q24M Camera Manual: Installation
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

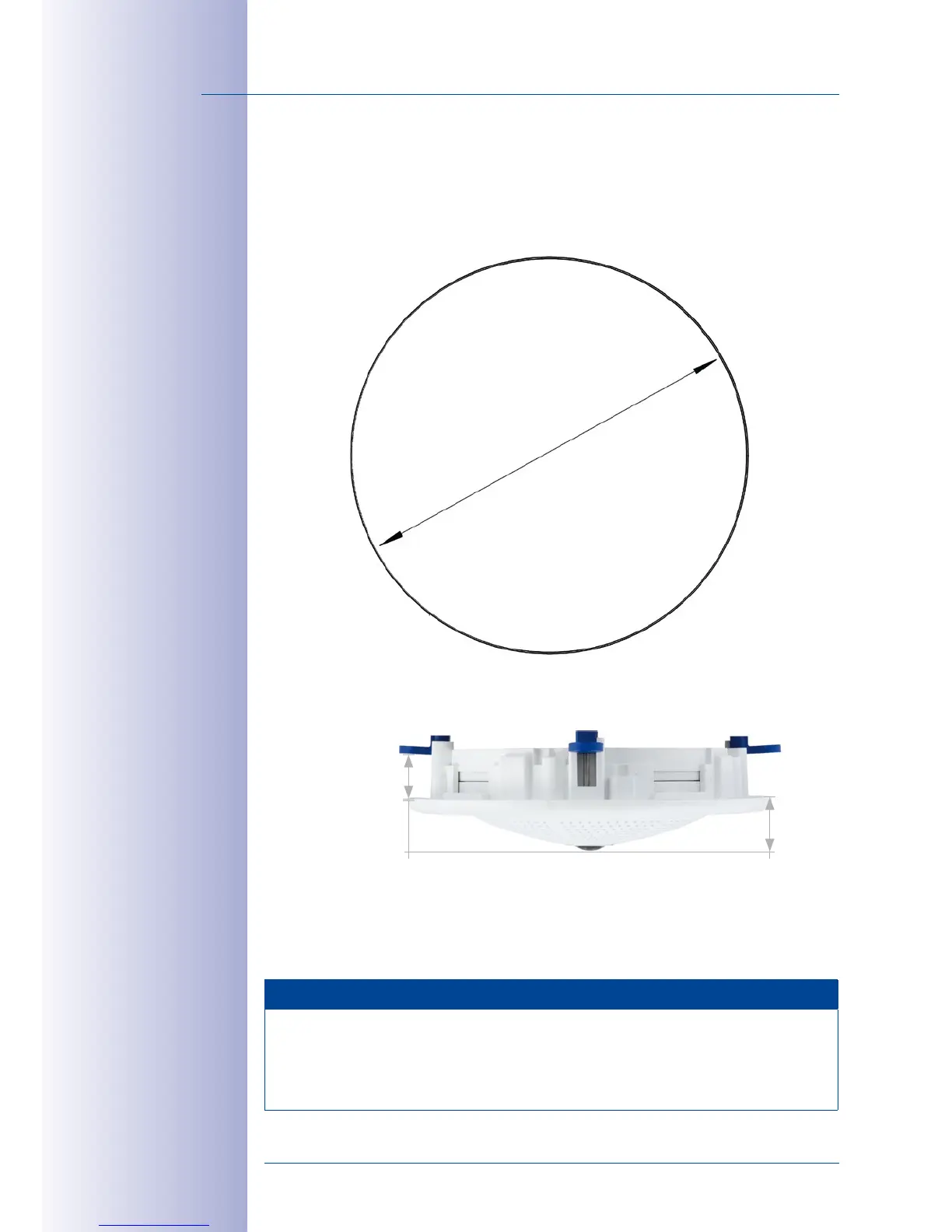

Q24M Drilling Template In-Ceiling Set
Notes
Find the folded drilling template at the end of the manual.
Make sure that the drilling template is not scaled or adjusted to the paper size when
printing the PDF file (enlarged or reduced).
Find the drilling
templates (scale 1:1)
at the end of the
manual as a fold-out
ø 150mm/5.9in
ø 180 mm/7.09in
24.1 mm/
0.95in
Clamping range
6 to 22 mm/
0.24to 0.86in
The In-Ceiling Set can
be used in panels ranging
from 6 to 22 mm/0.24
to 0.86 in thickness
