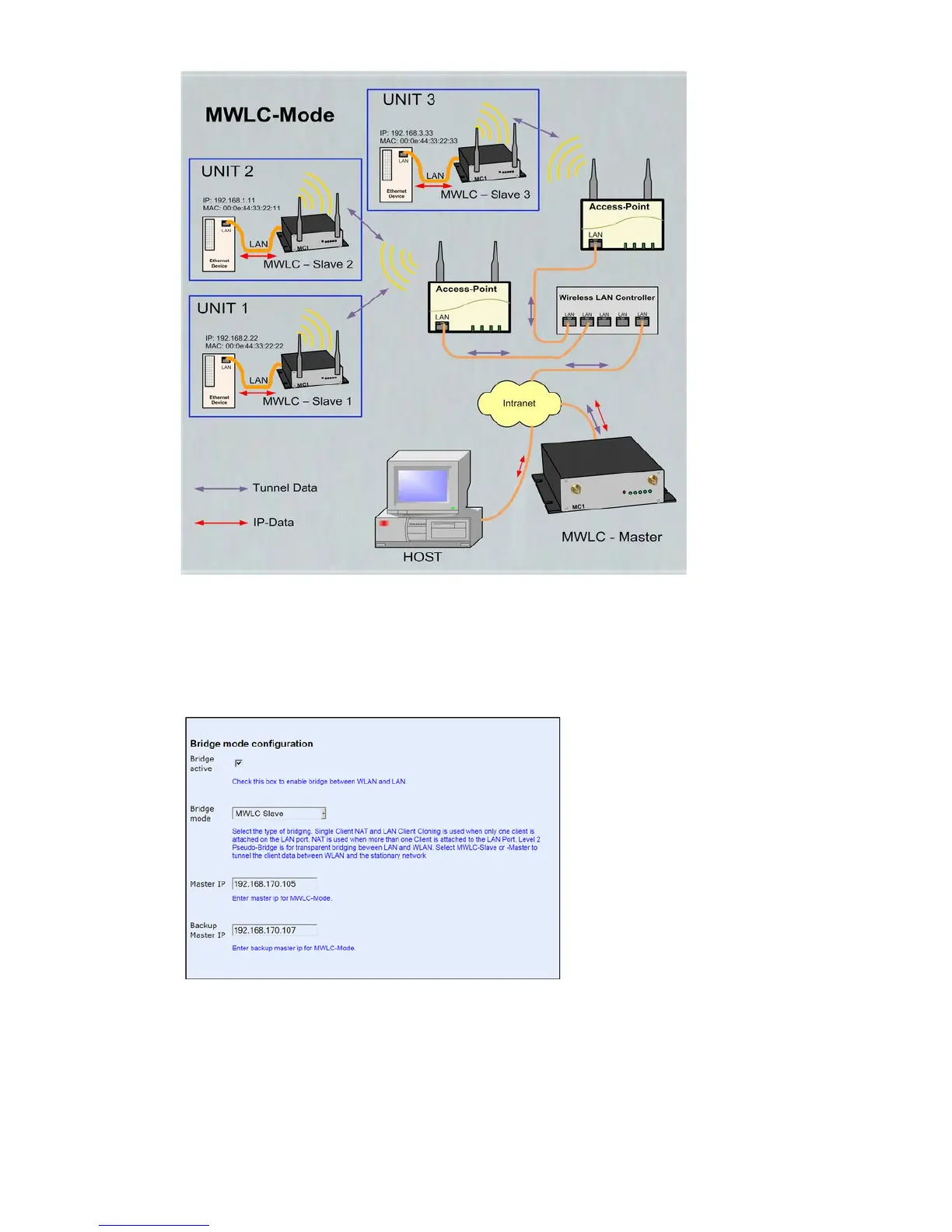

In this mode the IP addresses of the LAN clients has no influence to the MC. The LAN-Clients are connected
to the stationary network with there own IP- and MAC addresses. Because the MWLC master in this
constellation plays a central role, and a failure of this device would disconnect all clients, there is the
possibility to install a 2nd MWLC master as a backup.
The WLAN interface of the Master-Modul has to be switched off.
Advantages:
1. Maximum connection transparency for the LAN clients via WLAN into the stationary network.
2. The configuration work to the MC doesn't depend on the amount of LAN clients.
Disadvantages:
1. On the stationary network side one or two additional MC adapter are needed .
MC Manual Version 2.10c
