1.2 Ports of the MC2
The front panel of the MC2 is identical to the MC1.
The MC2 back panel has the following plug assembly:
The MC2 is also available with the options MC2-Sx-WK8 and MC2-Sx-M8.
MC Manual Version 2.10c
6

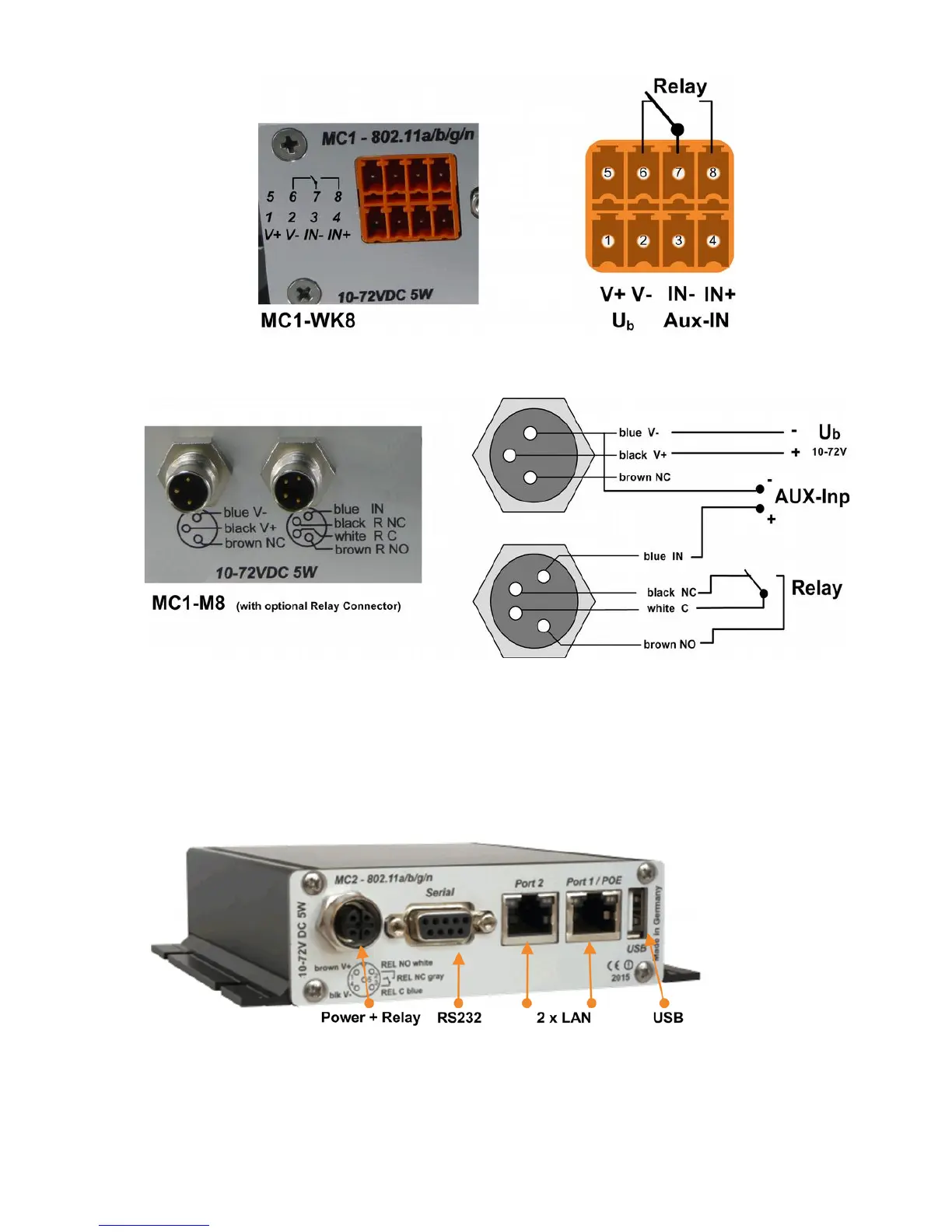

Figure 3: WK8 power connector (with relay + digital input)
Figure 4: M8 power connector + extra M8 connector with relay + digital input
Figure 5: MC2 plug assembly on the back panel
