Setting PS 4-300
parameters
47
04/99 AWB 2700-1311 GB

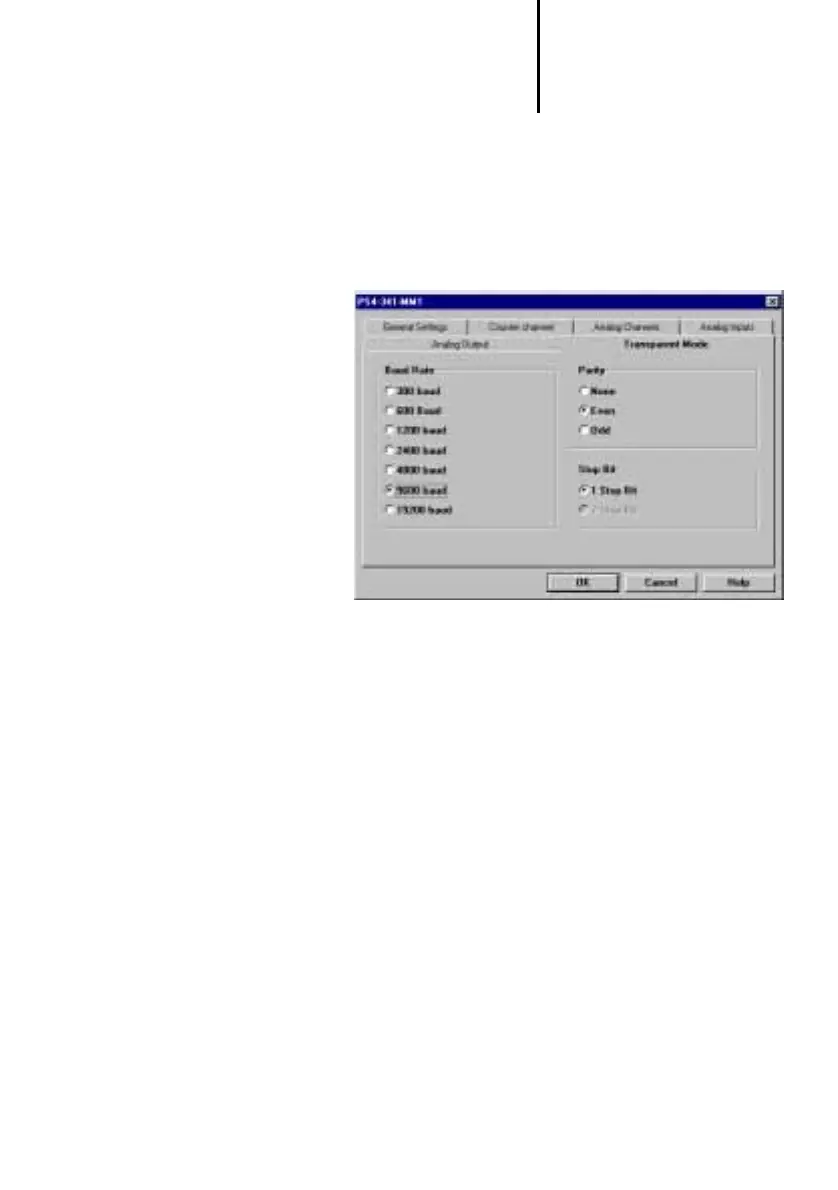

Transparent mode
왘 Click the Transparent Mode tab.
Requirements: Transparent mode must be selected
as Bus Status in the General Settings dialog box. The
following dialog box will appear:
Baud Rate:
The baud rate defines the maximum data
transmission speed of the stations. Select the
highest possible baud rate for the stations
connected.
Parity:
This parameter defines whether a CRC check is to be
carried out with even or odd parity or not at all.
