6
Service Procedures
33
Revision 3
© Moffat Ltd, September 2009
E32SUBC OVEN and PROOFER

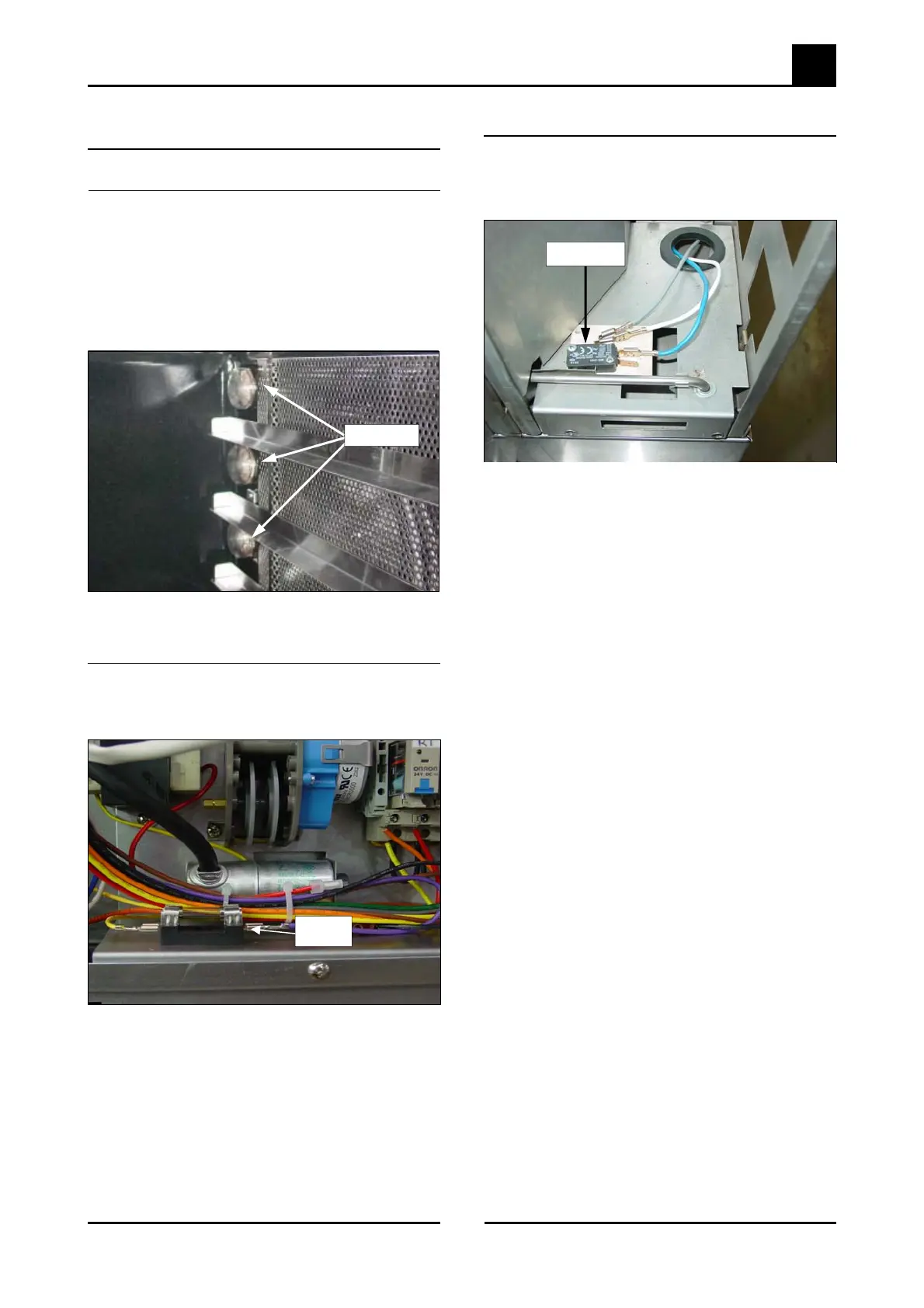

6.2 Replacement— Oven
6.2.3 Door Microswitch
6.2.1 Light Bulb / Glass
Figure 6.2.3
Figure 6.2.1
1) Remove trays.
2) Unscrew lamp cover(s).
3) Unscrew bulb out of fitting.
4) Screw in replacement bulb.
5) Ensure seal fitted. Screw lamp cover into
holder with baffle fitted (do not over tighten).
1) Remove control panel (refer 6.1.1)
2) Remove two screws holding microswitch to
bracket.
3) Transfer wires to the new switch and
reassemble.
4) Adjust micro-switch (refer 6.4.1).
Light Bulbs
6.2.2 Controller fuse
1) Remove RH oven panel locate fuse carrier in
bottom LH corner. Open carrier and replace
fuse.
Figure 6.2.2
Fuse
Microswitch
