Operation
Revision 3
© Moffat Ltd, September 2009
E32SUBC OVEN and PROOFER

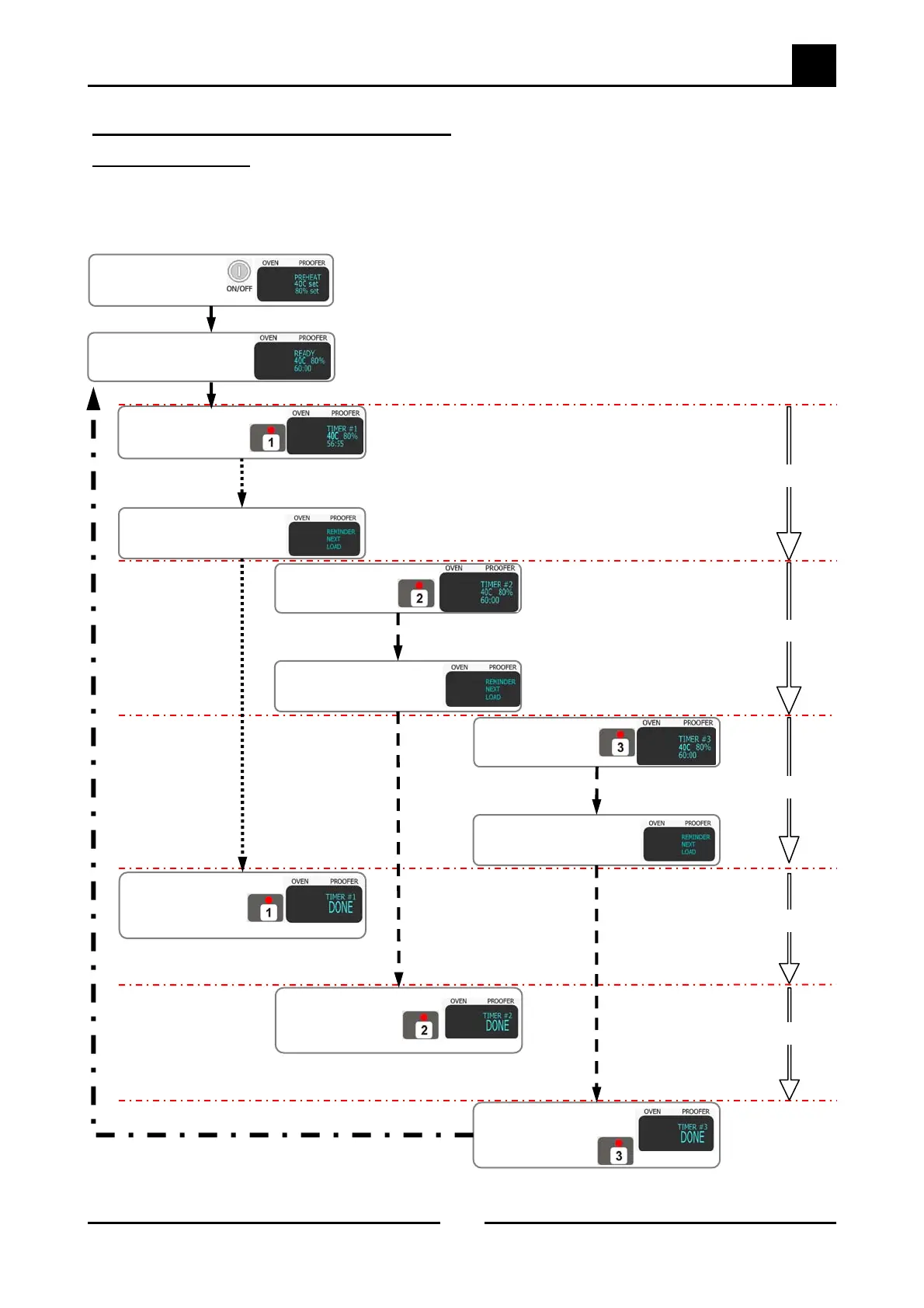

TURN ON / PREHEAT
Press ON / OFF key.
PROOFER READY
LOAD PROOFER
START TIMER
– Press Proofer key
NEXT LOAD
START TIMER
– Press Proofer key
TIMER DONE
UNLOAD PROOFER
CANCEL ALARM
– Press timer key
TIMER DONE
UNLOAD PROOFER
CANCEL ALARM
– Press timer key
20 MINS
NEXT LOAD
START TIMER
– Press Proofer key
TIMER DONE
UNLOAD PROOFER
CANCEL ALARM
– Press timer key
20 MINS
20 MINS
20 MINS
20 MINS
3.2 Operation / Flow Charts
3.2.1 Proofer
NOTE: Proofer display will always show timer status of the timer with the least remaining
time.
20MINS TIME-UP
Load Proofer with next load.
20MINS TIME-UP
Load Proofer with next load.
20MINS TIME-UP
Load Proofer with next load.
