Replacement Parts
Revision 3
© Moffat Ltd, September 2009
E32SUBC OVEN and PROOFER

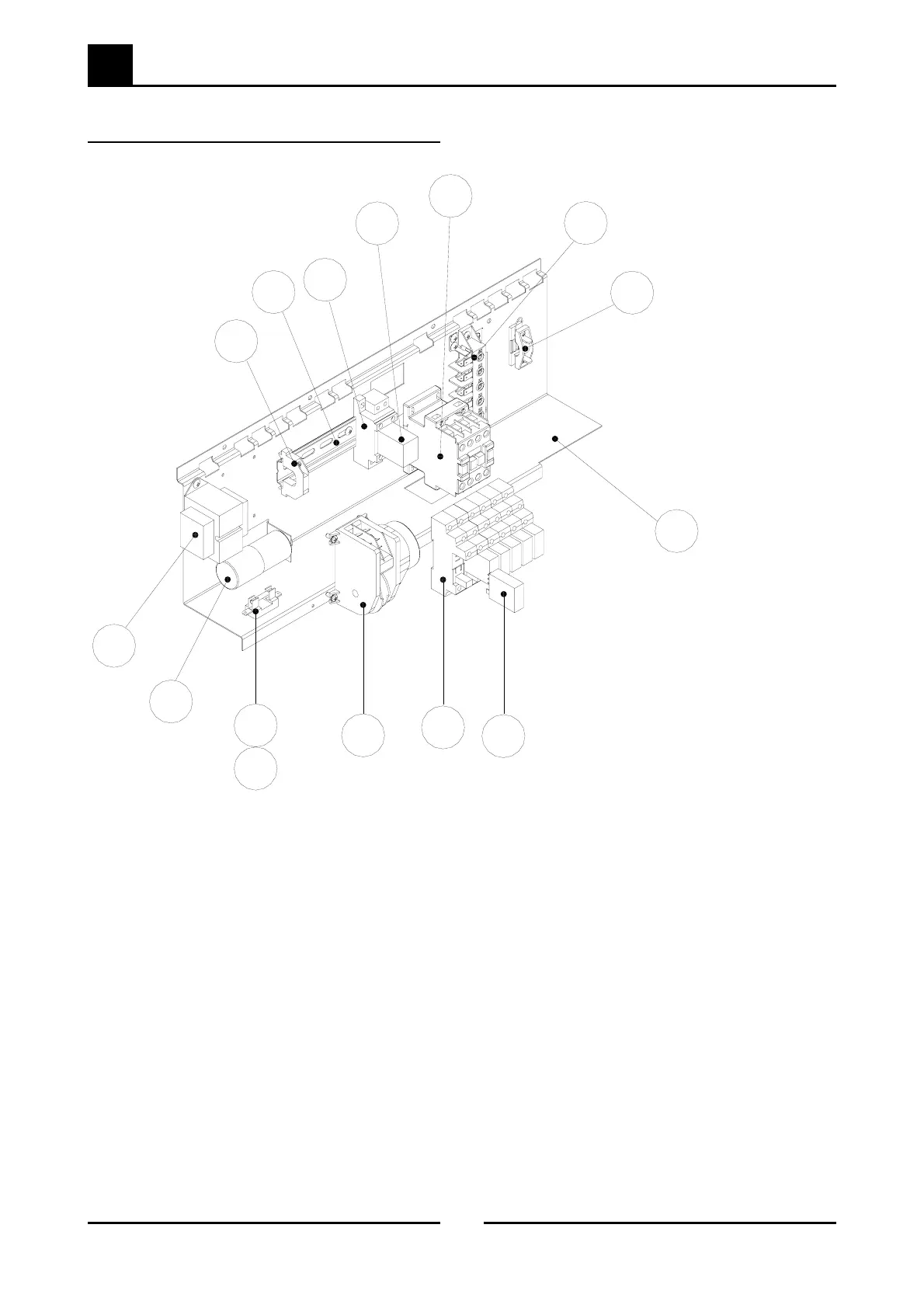

8.1.3 Oven Gear Plate
11
12
10
9
13
14
15
1
8
7
6
5
4
3
2
Item No. Part No Description
1 233271 GEAR TRAY 32SUBC
2 026161 CABLE CLAMP
3 232775 TERMINAL BLOCK FV122 B 6 POLE
4 231738 CONTACTOR LOVATO BF0910A230
5 016674 RELAY OMRON LY2 240AC
6 016673 RELAY BASE LY2
7 017242 DIN RAIL SHORT 130mm
8 020995 END ANCHOR
9 228660 TRANSFORMER WORKED
10 024432 CAPACITOR 3µF
11 229033 FUSE HOLDER 6.3X32mm
12 233689 FUSE 1.5A (F) 32 X 6.3MM GLASS
13 024567 MOTOR TIMER 240V
14 024637 RELAY BASE
15 233311 RELAY G2R 24VDC
To Next Page
