E32SUBC OVEN and PROOFER

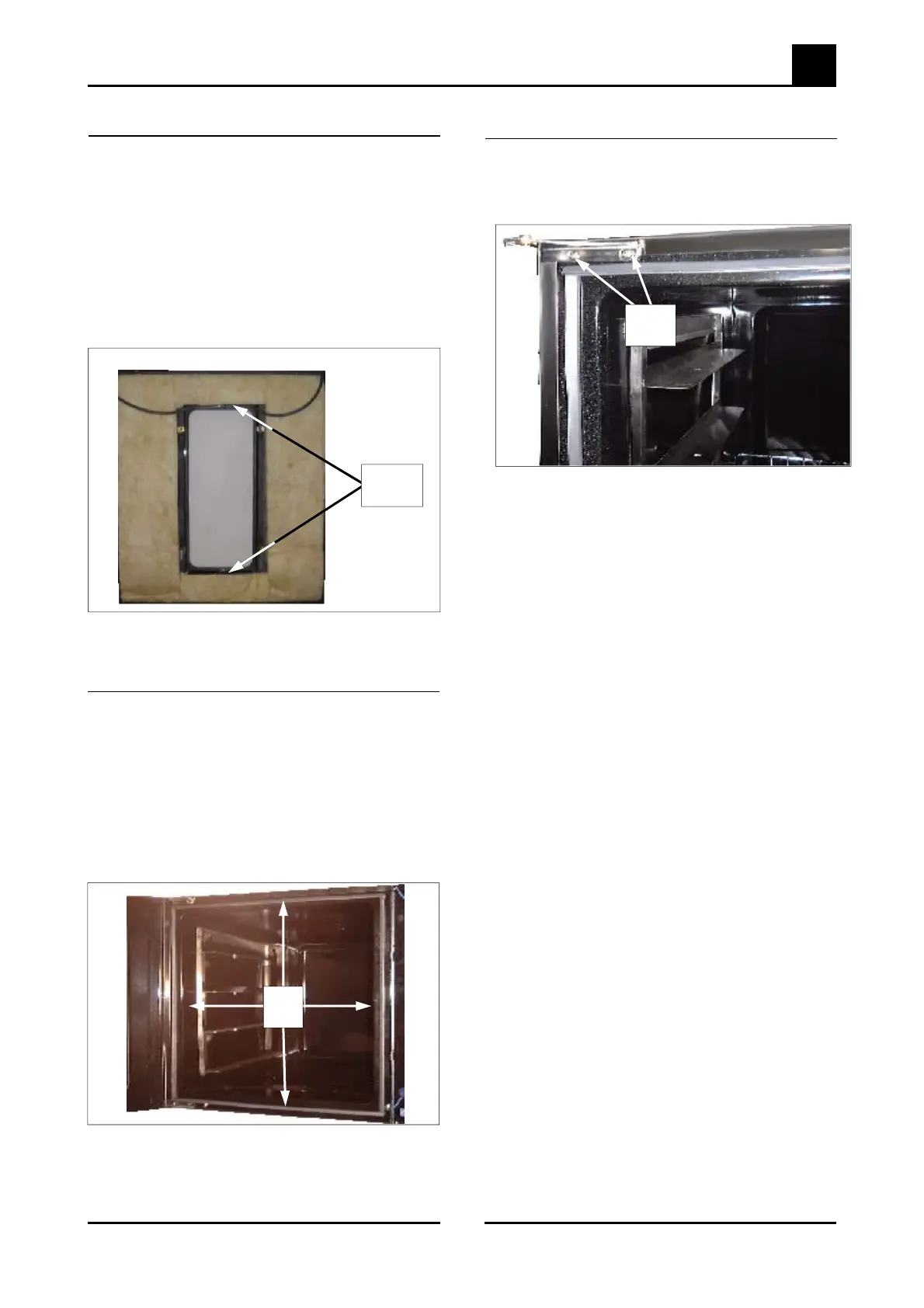

6.2.12 Inner Glass
Figure 6.2.12
1) Remove the outer glass (refer 6.2.11).
2) Uncrimp the retaining angles and remove
inner glass.
3) Replace with new glass.
Ensure when replacing that the side with the
‘L’ mark is inside the door (not inside the
oven). This ensures the correct
operation of the ‘Low E’ glass.
4) Reassemble and refit door to the oven.
Retaining
Angles
Figure 6.2.13
6.2.13 Door Seals
1) Open oven door.
2) To remove, hold at their centre point and pull
forward until they unclip
3) Refit new seals.
NOTE: Fit top and bottom seals first, with
open side of seal facing downwards.
Fit side seals with open side facing
outwards.
Door
Seals
6.2.14 Door Pivot Bushes
Figure 6.2.14
1) Remove door
2) Remove the top and bottom pivot brackets
(two screws).
Two
Screws
3) Door bushes can now be removed and
replaced.
4) Reinstall door by reversing steps one to two
of section 6.3.11.
