E32SUBC OVEN and PROOFER

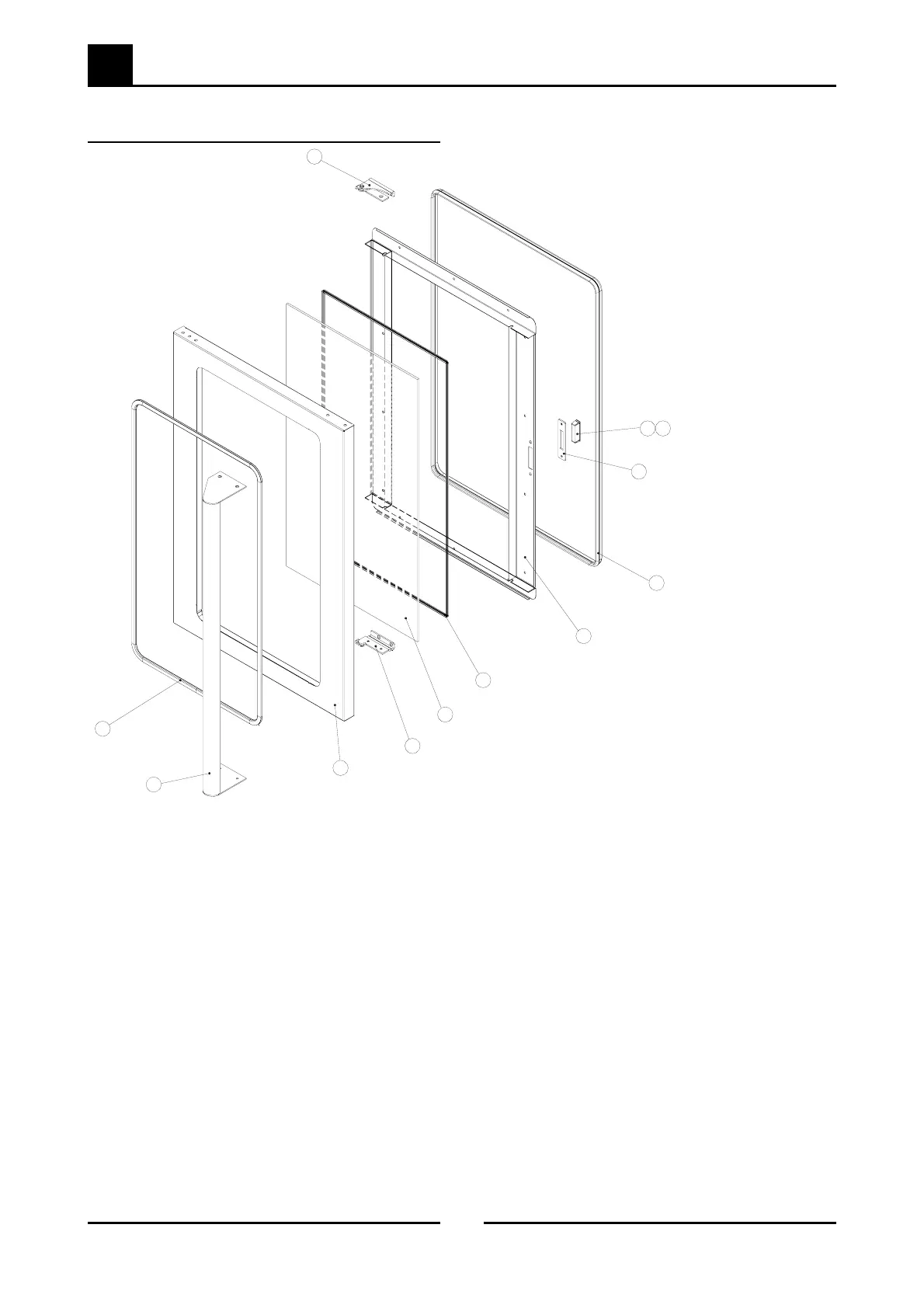

PROOFER DOOR SPARE PART LIST
Pos Part No. Description
1 26227 DOOR HANDLE
2 90202 DOOR OUTER SEAL 2.22m
3 26214 DOOR OUTER
4 20083 BOTTOM HINGE ASSY
5 25885 DOOR GLASS
6 90203 INNER FRAME SEAL 2.2m
7 26215 DOOR INNER FRAME
8 25887 DOOR SEAL 2.61m
9 25600 MAGNET MOUNTING PLATE
10 18947 MAGNETIC CATCH
11 26604 CATCH CLIP
12 20082 TOP HINGE ASSY
1
3
2
4
5
6
7
8
12
10
9
11
8.2.2 Proofer Door
