6.3 Replacement—Proofer
6.3.1 Temperature probe
1) Remove RHS service panel (refer 6.1.4) and
unplug probe.
2) With door open, remove right hand side rack.
Undo probe support bracket screws (4) and
remove bracket from inside service area.
3) Remove old temperature probe and fit new pr
4) Re-assemble in reverse order.
6.3.2 Humidity Temperature probe
3) Re-assemble in reverse order.
4) Ensure hole in proofer wall through which the
temperature probe wires pass is re-sealed
with RTV silicone sealant.

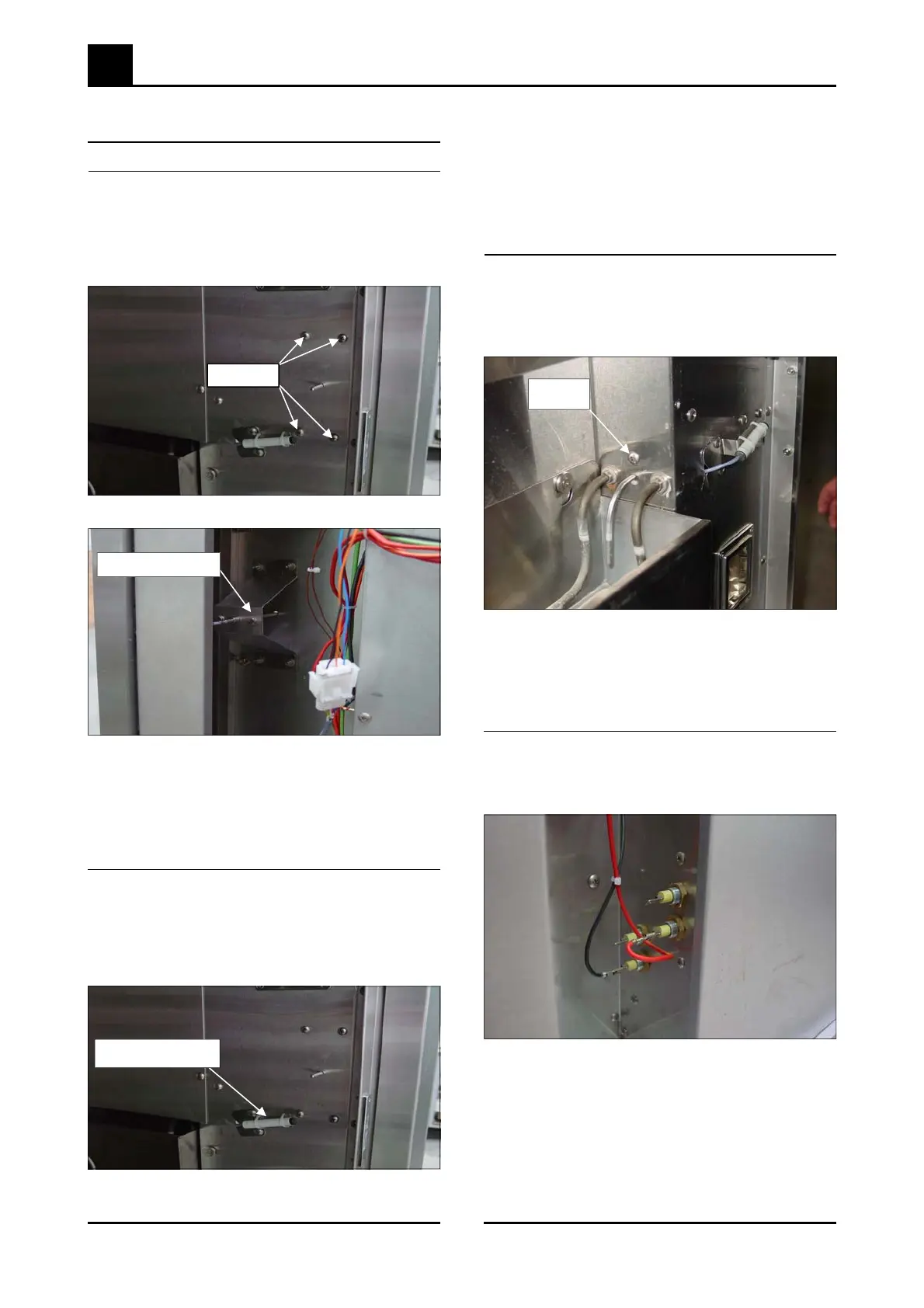

Figure 6.3.1a
4 screws
Support bracket
1) Remove RHS service panel (refer 6.1.4) and
unplug probe.
2) With door open, remove right hand side rack.
Undo probe support bracket screws (2) and
remove bracket from inside oven.
Figure 6.3.2
Humidity probe
6.3.3 Water Temperature probe
1) Remove RHS service panel (refer 6.1.4) and
unplug probe.
2) Undo securing screw and nut from inside
proofer
Figure 6.3.2
Screw
3) Remove bracket from inside service area.
4) Re-assemble in reverse order.
1) Remove RH side panel (refer 6.1.4), remove
wires from element terminals, noting position.
2) With door open, remove right hand side rack.
3) Undo the two screws holding the element
cover and remove cover.
4) Unscrew the element from RH side (outside)
of proofer. Pull element carefully to remove
from inside of proofer.
Figure 6.3.4a
6.3.4 Dry Element
Figure 6.3.1b
