E32SUBC OVEN and PROOFER

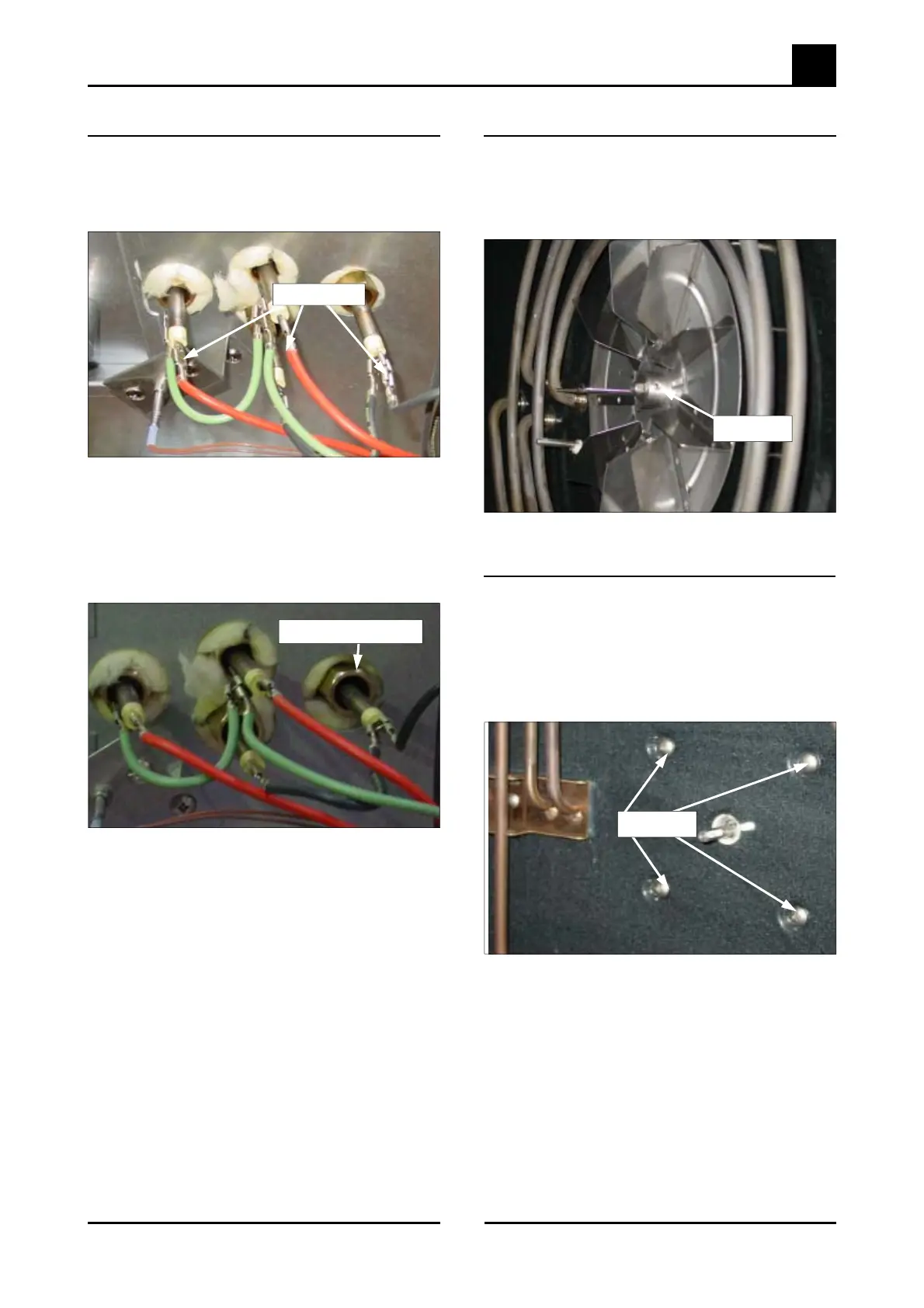

Figure 6.2.6b
5) Replace and re-assemble in reverse
order. Use high temperature (232°C / 450°F
minimum) RTV silicone sealant to seal ele-
ment against side wall of oven.
Element securing collars
Figure 6.2.7
6.2.7 Fan
1) With right hand rack removed undo the grub
screw securing the fan to the motor shaft.
2) Remove the fan from the shaft, replace, and
reassemble.
Grub Screw
Figure 6.2.6a
1) Remove service panel (refer 6.1.2) and
baffle.
2) Remove the wires from the elements.
3) Unscrew the elements from outside of the
oven by unscrewing securing collars
4) Pull elements carefully to remove. Silicone
sealant may require effort to remove
elements.
6.2.6 Elements
Element wires
Figure 6.2.8
6.2.8 Fan Motor
1) Remove fan (refer 6.2.7).
2) Remove the right hand service panel and
then remove the motor wires.
3) Undo the four screws holding the motor in
place and remove motor.
Four screws
4) Replace motor and reassemble in reverse
order.
