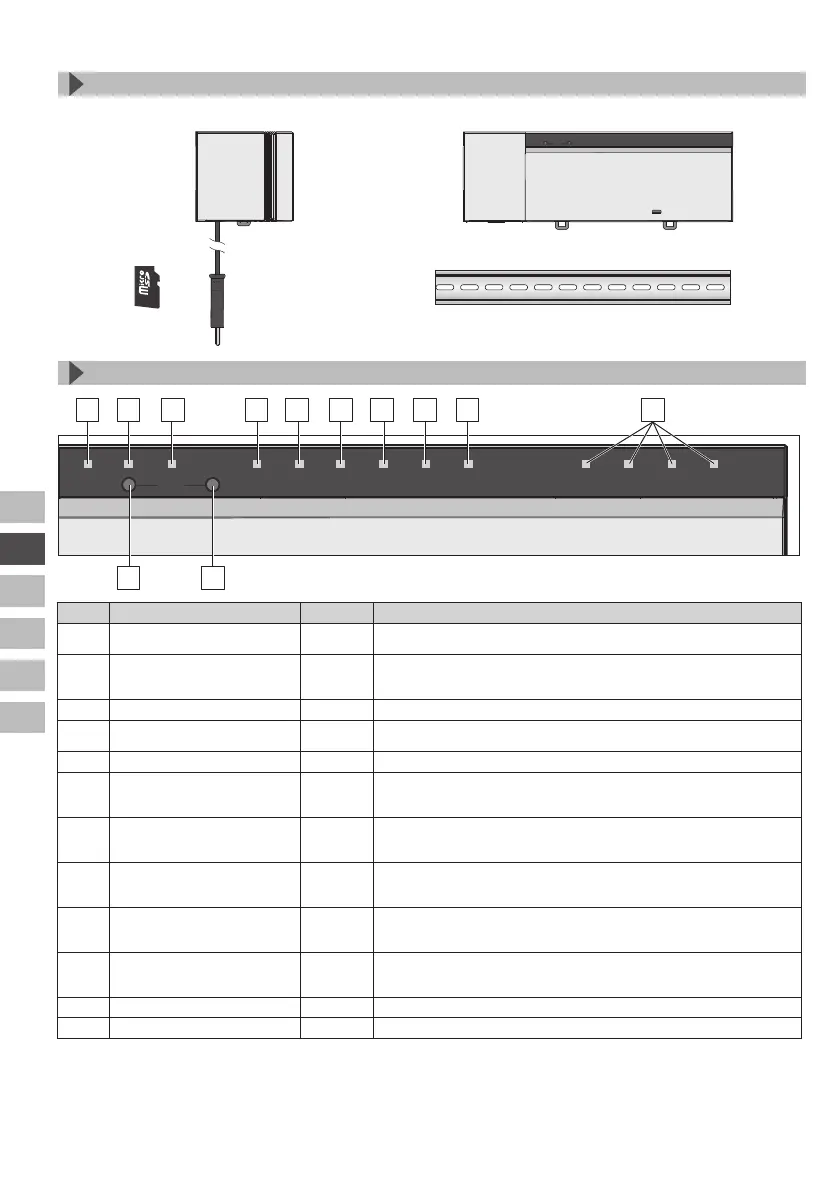

2.1 Scope of supply
2 Versions
2.2 Indications and operating elements
1 2 3 4
Power
rmBUS
Error
syBUS
Fuse Pump Boiler
Cool
H%
Master NO
Pairing
1 2 3 4
Power
rmBUS
Error
syBUS
Fuse Pump Boiler
Cool
H%
Master NO
Pairing
1 2 3 4 5 6 7 8 9 10
12 11
No. Designation LED Function
1 Fuse red Lights up when fuse has blown
2 syBUS yellow Shows syBUS activity, flashes during writing access on
microSD card
3 Error red Lighting up: Error
4 Power green Lighting up: Base station ready for operation.
5 Pump green Lighting up: Pump control active
6 Boiler green Lights up when boiler control is active if the boiler relay
is used for boiler control.
7 Cool H% blue Lighting up: Cooling operation active.
Flashing: Condensation detected.
8 Master yellow Lighting up: Base station is defined as master
Flashing: Base station is defined as slave
9 NO yellow Lighting up: Installation is parameterised for NO actua-
tors (normally open).
10 Heating zones 1 - x green Shows the respective activity of the heating/cooling
zones.
11 rmBUS pushbutton - Push-button for the rmBUS functionality
12 syBUS pushbutton - Push-button for the syBUS functionality
1 x
(only
BSF 40x12-xx)
1 x
1 x*1 x*
* optional
