Molecular Devices ImageXpress Pico User Manual

Chapter 1: ImageXpressPicoAutomated Cell Imaging System
5063666 K 15
Sample (X-Y) Stage

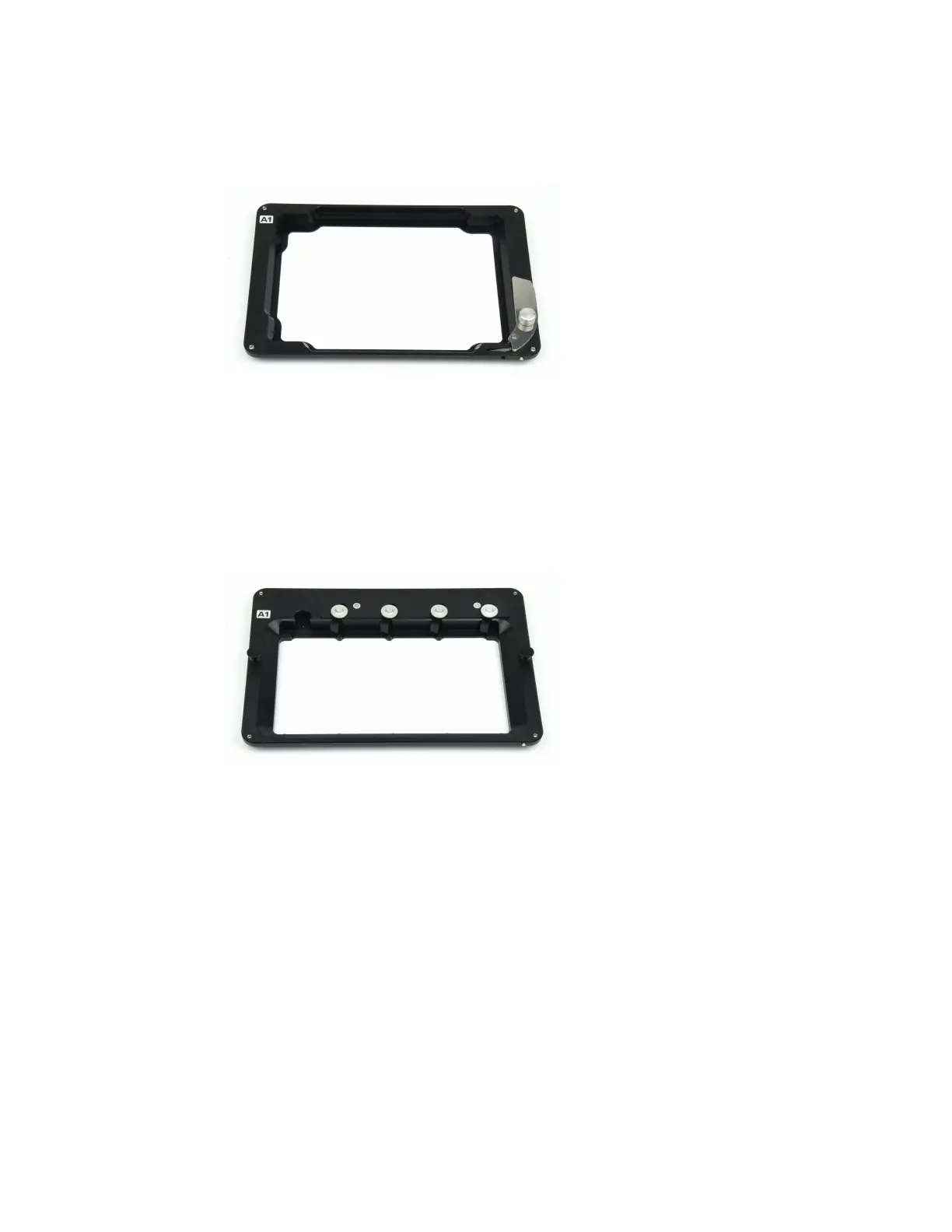

Plate Holder
The plate holder is designed for imaging multi-well microplates in standard ANSI (SBS) formats
with plastic or glass bottoms and standard footprint dimensions. It can also be used with the
optional dish holder, which holds up to six 35mm (1.38in.) dishes. Optimal image quality
depends on plate flatness, well bottom thickness, and optical clarity.
A spring-loaded, mechanical clamp holds the plate or dish holder securely in the plate holder.
The clamp automatically opens when the sample stage moves to the load/eject position; it
automatically closes when the sample stage moves into position for imaging.
Slide Holder
The slide holder is designed for imaging up to four standard microscope slides of 25mm x
75mm (1in. x 3in.).
