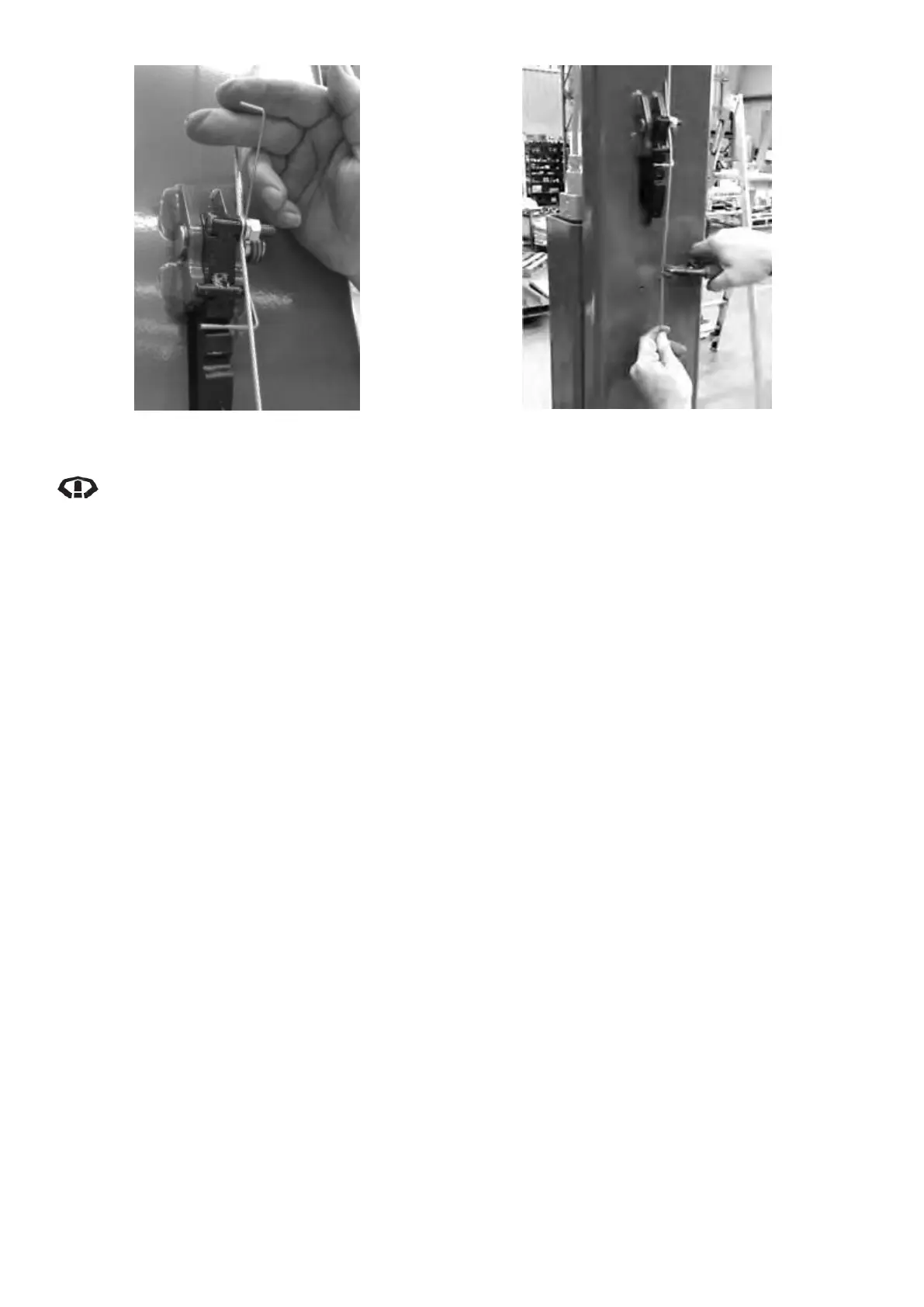

Diagram 34 - Gauging the clamping of the Lock
Release Cable with 1.5mm Allen Key
Diagram 35 - Trimming Excess Lock Release
Cable
Do not overtighten the clamping nuts on locks, damage to lock release cables may occur.
The spacing between washers should be 1.5mm. It is recommended to use a 1.5mm Allen
Key to gauge the correct spacing as shown in Diagram 34
9. Pull the cable down tight and hold while re-tightening. Refer to Diagram 33
10. Check correct spacing of clamping washers on lock using 1.5mm Allen Key and adjust if necessary.
11. Raise hoist off locks and recheck the movement of the non-control lock when holding down the lock
release lever. Repeat process with more tension on cable if disengagement is insufficient.
12. Trim any excess lock release cable that hangs below the cable cover bracket. Refer to Diagram 35
13. Run a light coating of cable lubricant over the length of the lock release cable.
14. Perform balance cable check.
15. Replace cable covers and lower hoist to ground.
