16
b. internal diameter wear by examining the amount of clearance on the shafts.
8. Lubricate the top balance cable pulley shafts with general spray lubricant.
9. Refit all top cylinder covers and ensure the cylinder brackets are square to the carriage.
10. Lock hoist at top position and hold down the release lever for 10 seconds to ensure the load is on
the locks.
11. On previously inaccessible sections of balance cables, clean dirt and old lubricant if necessary,
inspect and then lubricate with Wire Rope lubricant.
12. Check all balance cables are correctly seated in pulley grooves then conduct balance cable
adjustment procedure.
13. Refit bottom cylinder covers.
14. Lower hoist to ground.
BALANCE CABLE ADJUSTMENT
Follow balance cable adjustment procedure to ensure correct tension; if balance cables are
not correctly adjusted, damage to hoist, vehicles, equipment or personnel could occur.
Balance Cable Adjustment Check
1. Remove the Cable Covers

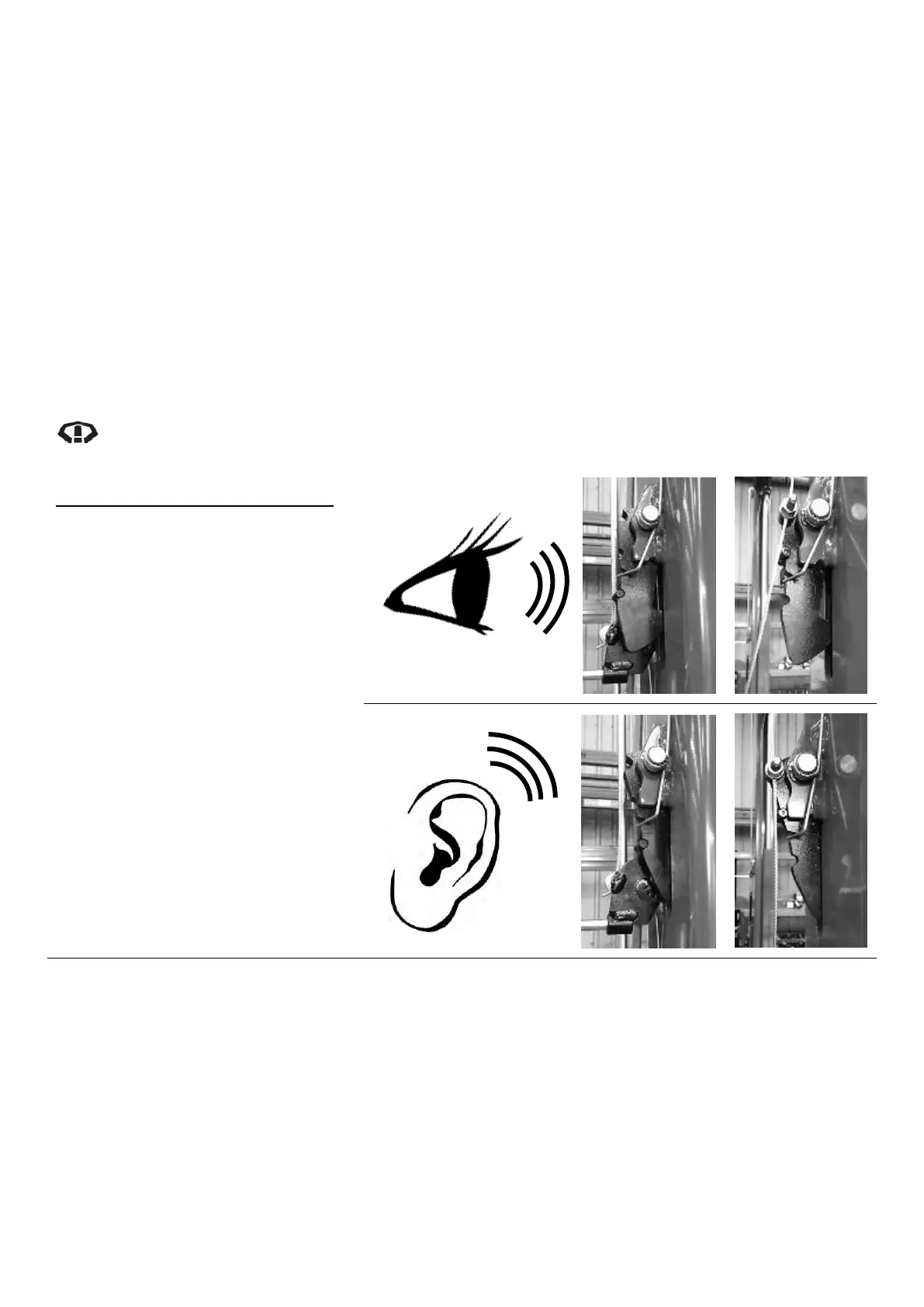

2. While raising the hoist,
listen and observe the lock
engagement.
The locks should engage
and release in unison, if
not, tighten the top balance
cable end on the carriage
that is running “higher“ or
complete the Balance
Cable Adjustment
Procedure.
3. Ensure that the Lock
Release cable is tensioned
correctly or perform the
Lock Release Cable
Adjustment Procedure.
4. Replace Cable Covers
