Moons' M2 Series Quick Setup Guide Manual

29
Rev. 1.0
4/29/2016
M2 Quick Setup Guide Manaul

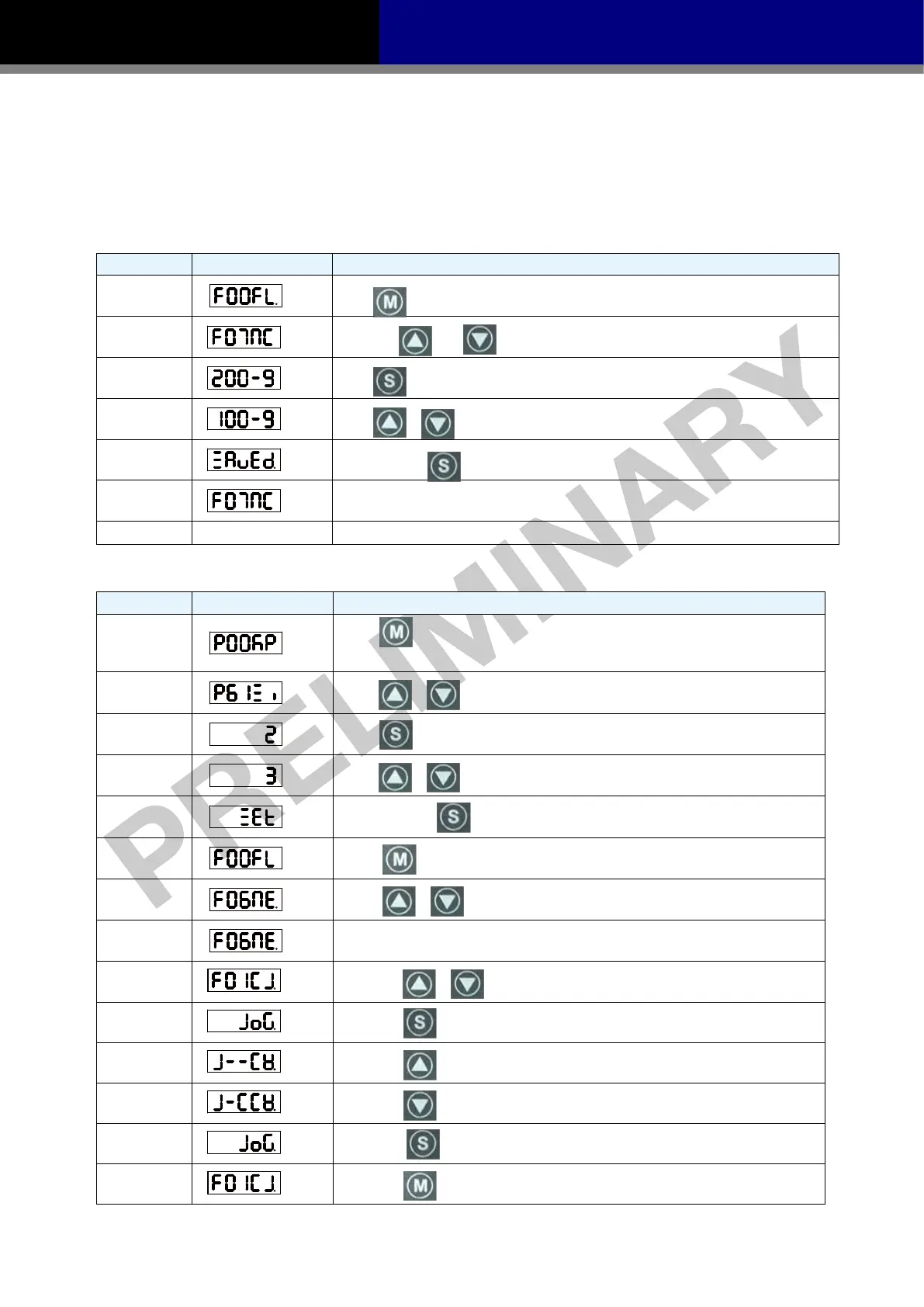

6.3 Motor Conguration Manually
Before JOG mode operation, M2 series AC servo drive requires motor configuration setup. To
confirm your motor specification, please refer to chapter 2.3.
For more MOONS
’ motor information, please refer to appendix 1.
For example: To setup a drive for model: SM0402AE4-KCD-NNV09 motor. these are the following
steps:
Step Display Details
1
Press into the Function Parameters mode at the Monitor Status mode
2
Press the and key to select F07(MC)
3
Press key into value setting mode.
4
Press
、
key to change value.
5
Press and hole key for 1 second to confirm motor configuration.
6
7
Parameter is effective only after the servo drive is restarted.
6.4 Operations of JOG Mode
Step Display Details
1
Press to switch the Monitor Status mode into the Drive Parameters
Configuration mode
2
Scroll
、
key to select parameter P61(SI)
3
Press key into value setting mode
4
Scroll
、
key to change values.
5
Press and hold key for 1 second to confirm the setting value.
6
Press key into the Function Operation mode.
7
Scroll
、
key to select Function F06(MC) to enable the motor.
8
Press and hold SET key for 1 second, the drive will be enabled. The last dot will
light to shows the drive is enabled.
9
Scroll the
、
key into function F01(CJ) to run JOG mode.
10
Press the key into JOG mode
11
Press the key ,the motor will rotate at CW direction with the speed 1rps.
12
Press the key ,the motor will rotate at CCW direction with the speed 1rps.
13
Press the key to stop the motor
14
Press the key back to the Function Operation mode.
