1.10
5
Insert
hitch clip

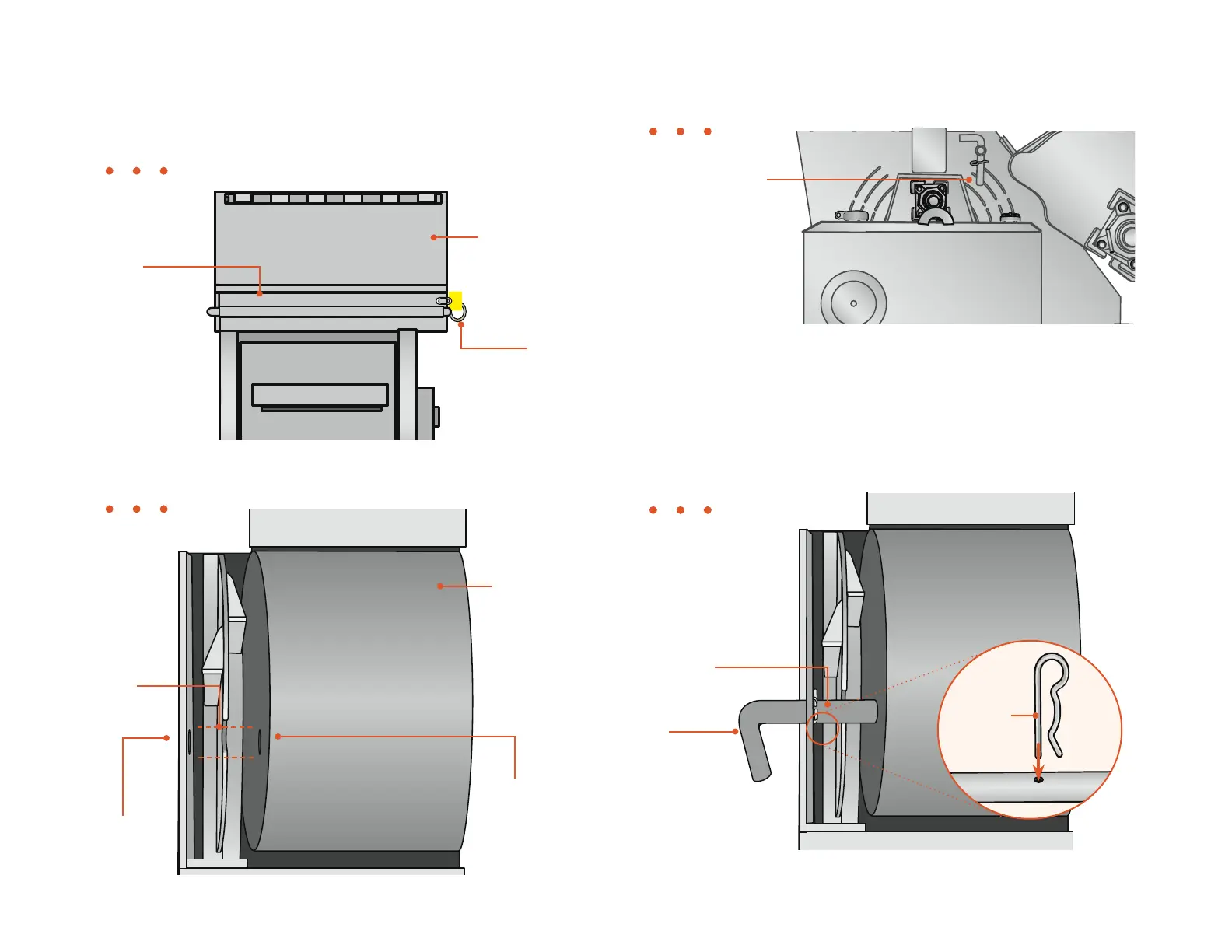

To Lockout the drum:
1. Remove lynch pin, slide the hood locking pin out that holds the drum
hood down. Lift the drum hood open.
2. Turn the drum manually until the slot in the wheel is aligned with
the holes on the side of the drum base.
3. Remove the drum locking pin from it’s holder located on the right side
of the base.
Drum
Hood
Slot in drum wheel
Holes in
drum base
2
4. Insert the drum locking pin through the holes in the drum base and
slot on the wheel.
5. Insert the hitch clip through the drum locking pin.
6. Check that the drum locking pin is securely in place by pulling on the
handle of the drum locking pin and attempt to remove it. Maintenance
on the drum may begin after the machine is locked out and the
locking pin is securely in place.
4
Figure 1.6
Figure 1.7
Figure 1.9
Hood
Locking
Pin
Carefully turn the
drum to manually
align the slots
Drum locking pin
Figure 1.8
Lynch Pin
76347-385 • 06-15
Safety • Lockout Procedure
