Engine

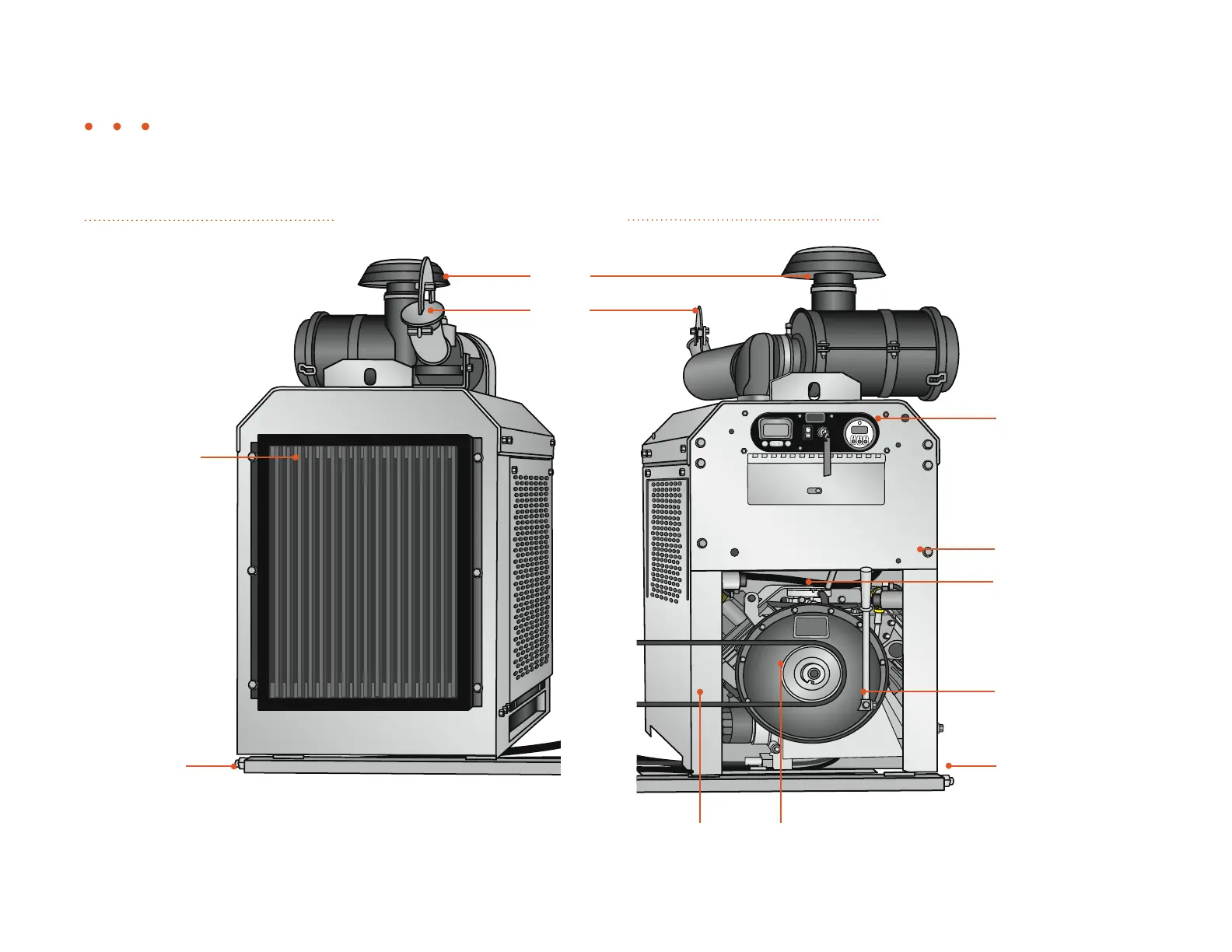

Typical Engine Configuration
Figure 3.9
Radiator screen
(radiator is housed
behind the screen)
Engine
(engine models vary)
Sheave
Engine belt
drive
Engine housing
Control panel
NOTE: Panel will vary
with engine make and
model and is shown for
illustrative puposes
only
Air filter
Engine belt drive
adjustment bolts
Right View
Clutch
Left View
Engine belt drive
adjustment bolts
Muffler
