3.26
76347-385 • 06-15

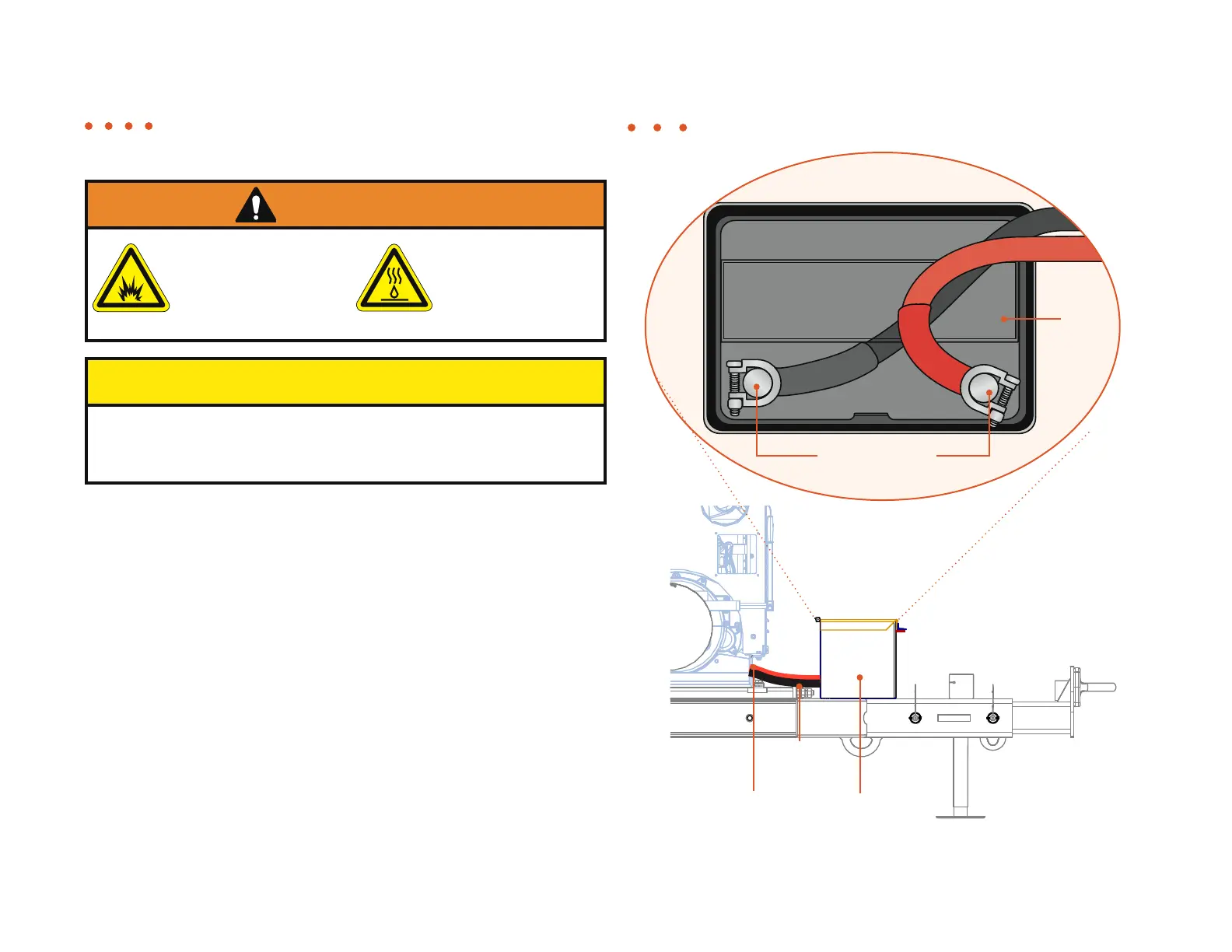

Figure 3.11
NOTE
Charging the battery with cables connected can damage the machines
electronic system. Disconnect both cables before connecting the battery
to a charger.
The battery generates
explosive gas during
normal operation.
Keep ignition sources
away at all times.
Function
The battery is the electrical power source for the machine. It is stored inside
the metal battery box located on the tongue of the machine.
Use
When handling the battery, make sure the engine is OFF. Access the battery
by removing the lock at the side of the box, and open the lid. When
connecting or disconnecting the cables, always handle the negative (-)
terminal first.
After completing the connection, reconnect and tighten the cables to the
terminals. Apply grease to the terminals to prevent corrosion. Close the
battery box cover and lock.
Maintenance
• Check the battery terminals for corrosion (white or yellowish powder)
• Remove corrosion by covering the terminals with a solution of baking
soda and water. After the mixture bubbles and turns brown, wash it
off with water. If there is severe corrosion, clean with a wire brush,
and dry with a paper towel
Battery acid can cause
severe burns. Wear
protective gear when
handling the battery.
Battery
storage box
Positive
cable
(red)
Battery terminals
Battery
Negative
cable
(black)
Battery
Safety
WARNING!
Features and Function • Components • Battery
