3.44 76347-281 • 12-08
LEFT TRACK FWD
LEFT TRACK REV
YOKE UP
YOKE DOWN
DRIVE FAST STATUS
DRIVE ON/OFF
TWIST TO RESET
FEED STOP
ENGINE STOP
SPOUT LEFT
THROTTLE UP
THROTTLE DOWN
RIGHT TRACK FWD
RIGHT TRACK REVSPOUT RIGHTDRIVE SLOW
FEED FORWARD
FEED REVERSE
Safety

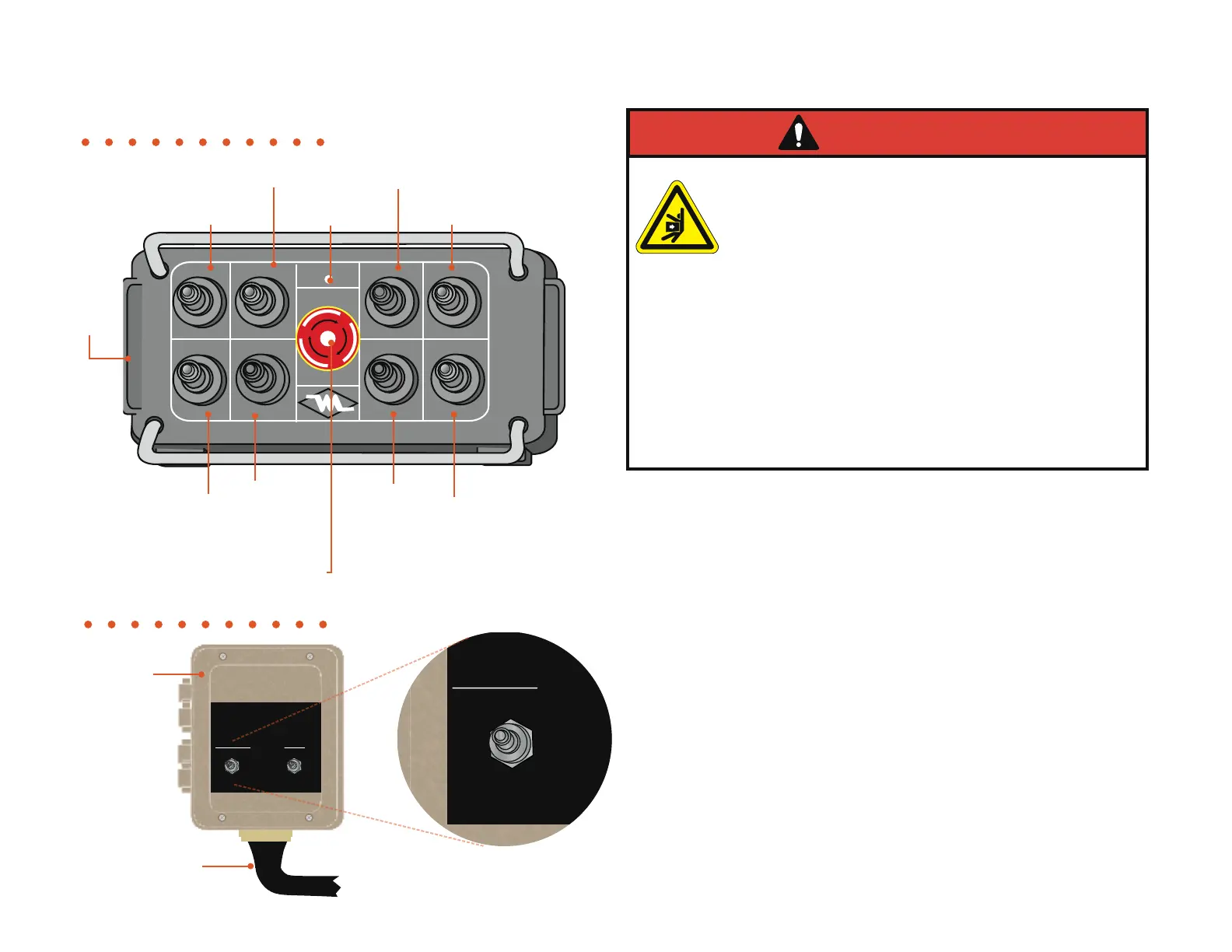

Remote Track Transmitter Control
Figure 3.22
Drives the left track in
direction indicated
Drives the right track
in direction indicated
Operates the feedwheels
forward or reverse
Controls the
track speed
Directs the flow
of chips
Raises or lowers
the feedwheel
Function
The remote control can be used in place of the valve bank controls to
operate the track drives on or off, yoke, feedwheels, track speed, and
throttle. The switch on the engine panel can be switched to either
remote or manual settings. The remotes operating distance varies with
surroundings. During operation, switching between the remote and
manual controls can be done.
Use
To use the remote, the switch on the engine panel must be in the remote
mode.
Each toggle switch has a description of its function.
Maintenance
Remote should be turned off when not in use. Do not store remote in
direct sunlight or wet areas. Handle remote with care. Do not drop,
throw, or subject to severe physical shock.
DANGER
You must start machine and engage the feedwheels in
reverse, hit your reverse toggle on your remote to ensure
the feedwheels come to a stop. (If they fail to stop, shut
down machine and contact your dealer). Refer to decal
on your machine.
Stray radio signals, high voltage power lines, and other
forms of interference may cause the remote control to
stop working or work erratically. Always stay within
working radius and always point remote toward receiver.
If the status light is a steady or blinking red this indicates
the batteries are low and must be replaced before
machine operation can continue. If the status light turns
red while operating, safely stop all machine operations
and replace the batteries.
Features and Function • Components • Remote Track Option
Status Light
Transmitter
Increases or
decreases the
engine RPM’s
Shuts down the engine, twist in the
direction of the arrows to reset
NOTE: You will run the batteries
down if you do not reset the switch.
UP/Stops the
feedwheels
DOWN/Turns
track drive on
or off.
Figure 3.23
THROTTLE
UP
DOWN
Selección de modo
REMOTO
MANUAL
Receiver Box
(mounted on engine
panel by control
panel)
Machine Harness
To Next Page
