LT TRACK FWD
LT TRACK REV
YOKE UP
YOKE DOWN
DRIVE FAST SPOUT LEFT
THROTTLE DOWN
THROTTLE UP
RT TRACK FWD
RT TRACK REVSPOUT RIGHT
DRIVE ON
DRIVE OFF
DRIVE SLOW
FEED FWD
FEED REV
TWIST TO RESET
ENGINE STOP
Drives the left track in
direction indicated
Drives the right track
in direction indicated
Operates the feedwheels
forward or reverse
Controls the
track speed
Directs the
flow of chips
Turns the track
drive on or off
Raises or lowers
the feedwheel
Increases or decreases
the engine RPM’s
Shuts down the engine, twist in the
direction of the arrows to reset
NOTE: You will run the batteries
down if you do not reset the switch.
Safety

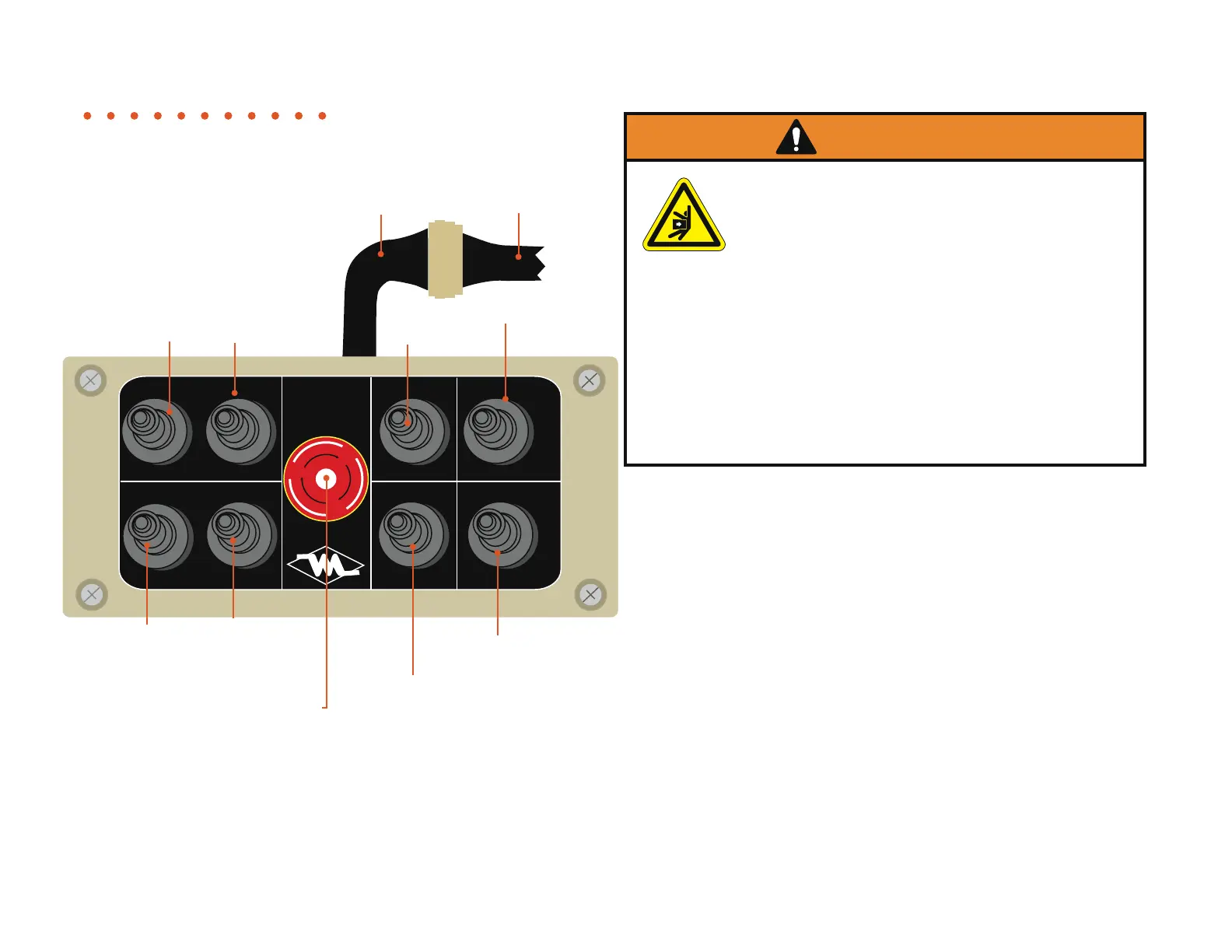

Track Tether Remote Control
Figure 3.24
Tether Harness Machine Harness
Function
The remote tether can be used in place of the valve bank controls to
operate the machine functions.
Use
To use the tether remote, you must unplug the machine harness from
under the receiver box (mounted to machine), then plug that into the
tether harness.
Each toggle switch has a description of its function.
Maintenance
• Tether remote should be turned off when not in use
• Do not store tether remote in direct sunlight or wet areas
• Handle tether remote with care. Do not drop, throw, or subject to
severe physical shock
WARNING!
Improper operation of these controls can cause serious
injury. Do not allow anyone to operate this equipment
before completely reading the manual.
When using the tether remote always stay within
working radius and always point transmitter toward
receiver.
Stray radio signals, high voltage power lines, and other
forms of interference may cause the tether remote to
stop working or work erratically. Never use the tether
remote when interference is present.
Never unplug machine harness while the machine is
running.
