Loader
Option
The joystick on the left opens and closes the grapple and operates the
main boom in addition the button controls operate the yoke.
1. Pushing the joystick to the left will open the grapple jaws.
2. Pushing the joystick to the right will close the grapple jaws.
3. Pushing the joystick forward will lower the main boom.
4. Pulling the joystick back will raise the main boom.
5. Pushing the joystick button up will raise the yoke.
6. Pushing the joystick button down will put down pressure on
the yoke.
Use
The joysticks at the operators seat and on the swinging door on the operators side of the machine control the loader and yoke. There is a standard
configuration and a CAT and JOHN DEERE specific configuration of the controls.
The standard joystick configuration operate the yoke and grapple as follows:
Button controls
1
3
2
4
6
5
Left joystick

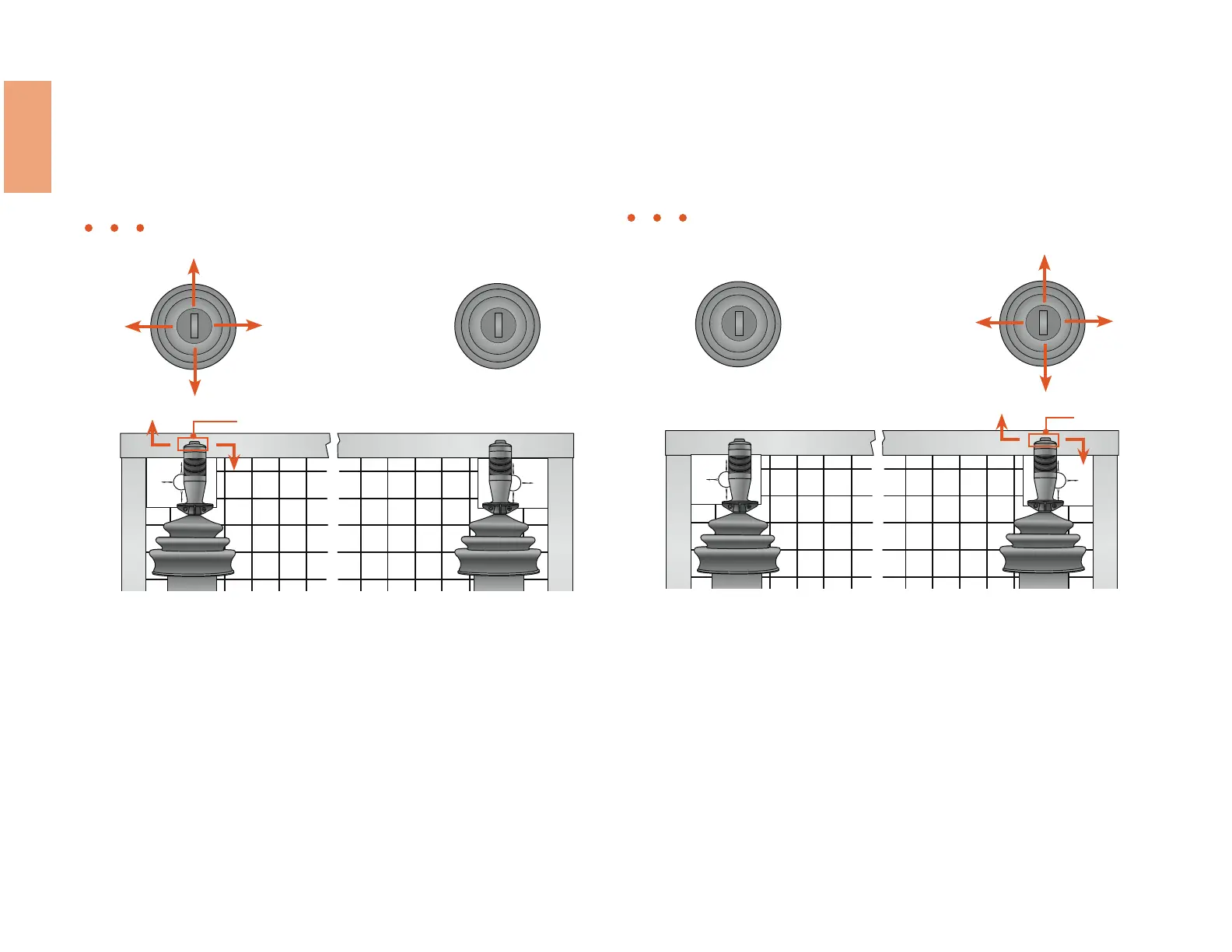

Figure 3.17
Button controls
1
3
2
4
6
5
Right joystick
The joystick on the right moves the loader left or right and operates the
jib boom in addition the button controls rotate the grapple.
1. Pushing the joystick to the left will swing the boom to the left.
2. Pushing the joystick to the right will swing the boom to the right.
3. Pushing the joystick forward will move the jib boom out.
4. Pulling the joystick back will move the jib boom in.
5. Pushing the joystick button to up will rotate the grapple clockwise.
6. Pushing the joystick button down will rotate the grapple counter
clockwise.
Figure 3.18
