ELI 250/210 _________________________________________________________________________
4-18

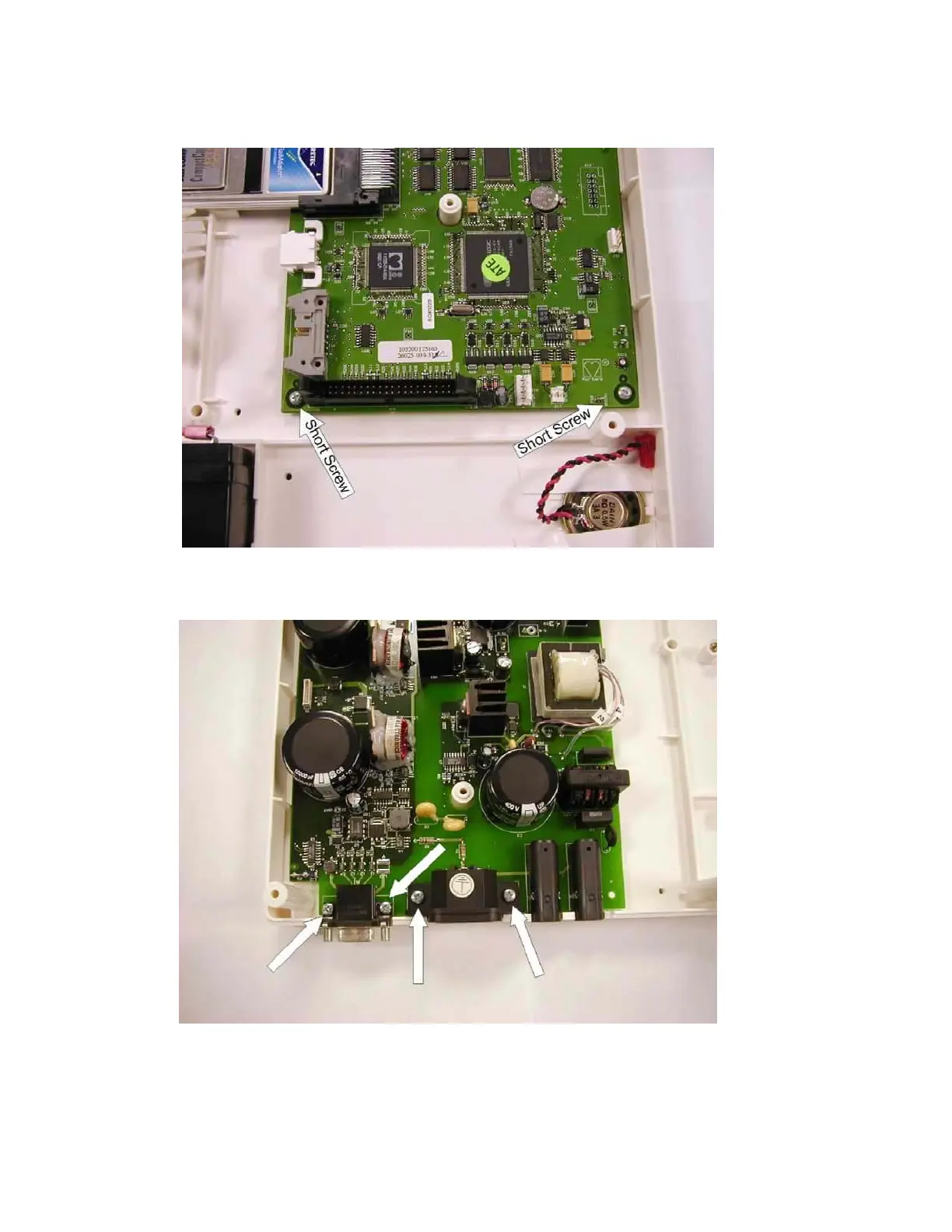

Once these cables are removed remove the 2 screws, item 45, at the “front” of the board.
Remove the four screws, item number46, at the back of the Motherboard.
The Motherboard will now be loose and can be removed from the bottom chassis.
Re-assemble in reverse order.
