3.7 Eyepiece tube
Loosen the eyepiece clamp screw (Fig.1). Insert the round dovetail mount on the eyepiece tube into
the round dovetail mount on the microscope arm. Tighten the eyepiece tube clamp screw to secure
the eyepiece tube in place.

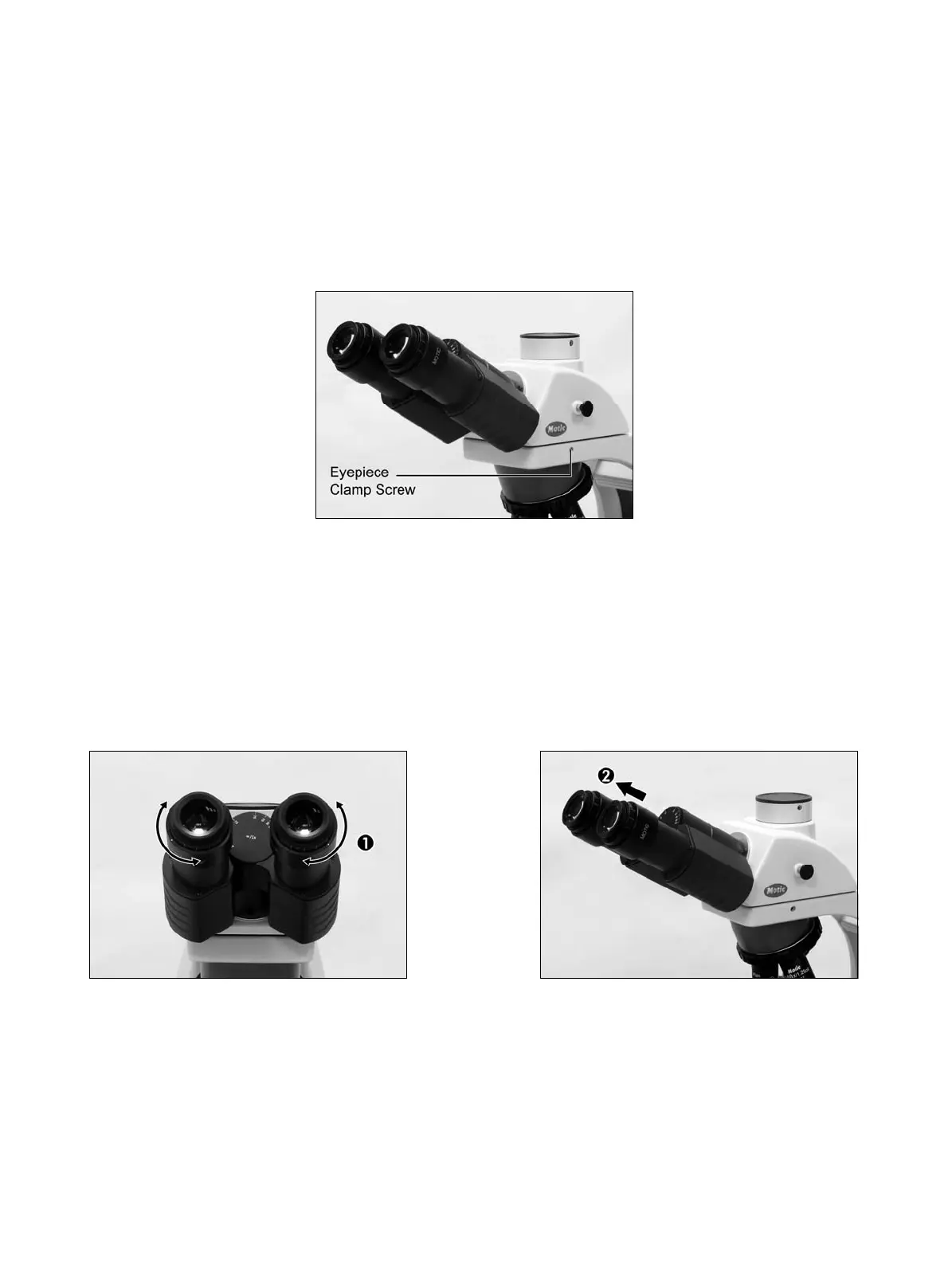

(Fig.1)
3.8 Eyepieces
Use the same magnification eyepieces for both the eyes.
To secure the eyepiece in the eyepiece sleeve, tighten the clamp screws.
Twist the eyepiece (anti-clockwise or clockwise) with 20~30 degree (Fig.2) and pull the eyepieces
gently out when removing the eyepiece. (Fig.3)
(Fig.2) (Fig.3)
