Motic BA310E - Filters

13
3.9 Filters

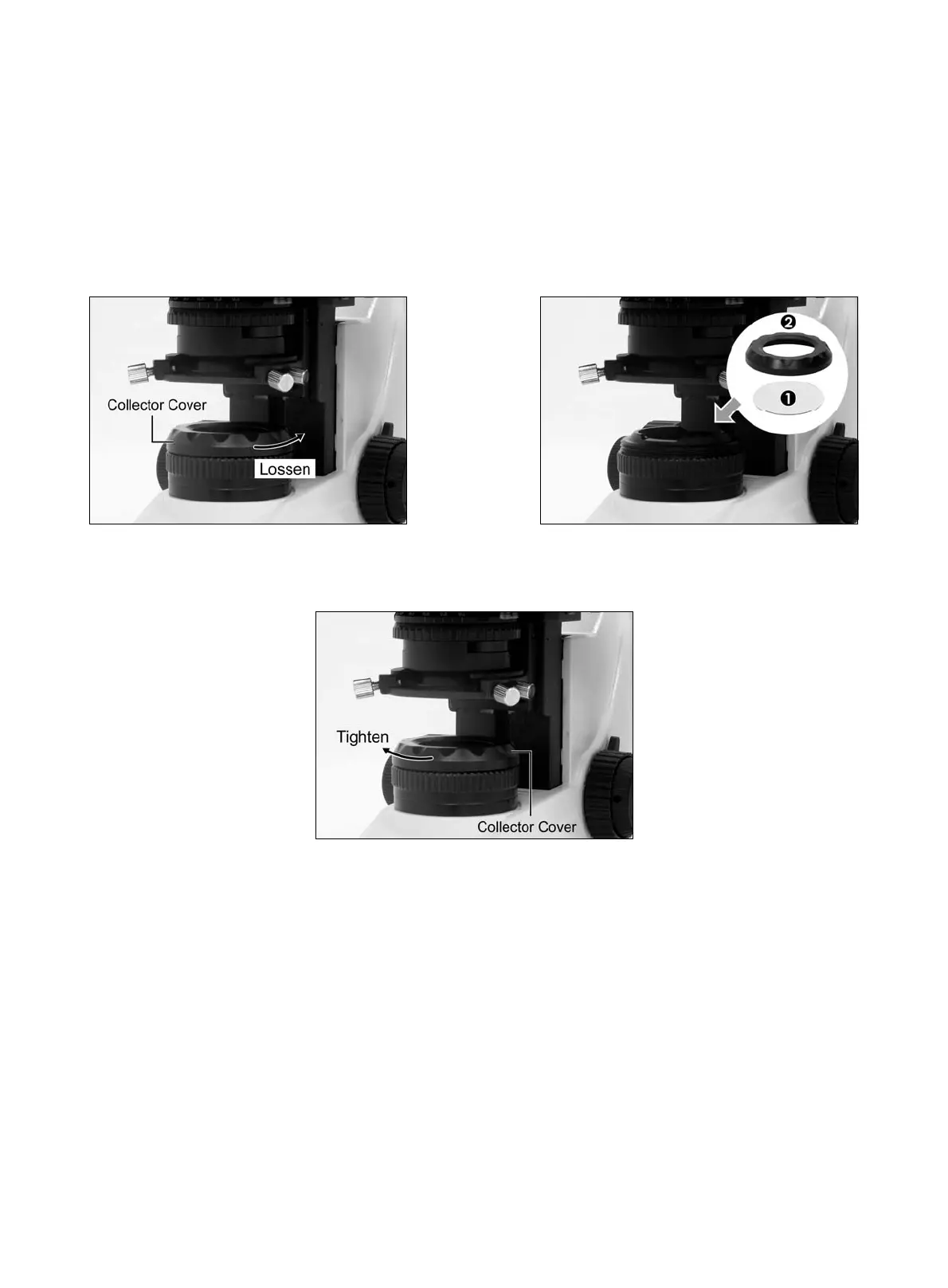

 Remove the collector cover (Fig.4) and place the filter in the filter holder located around the field
lens (Fig.5.1), then screw the cover back (Fig.6). Take care that dust, dirt and fingerprints do not get
on the filter and the field lens.
(Fig.4) (Fig.5)
(Fig.6)
