3.3
AC Power Installation
The AC 120V External Power option requires an existing AC power outlet installed by a certified
electrician.

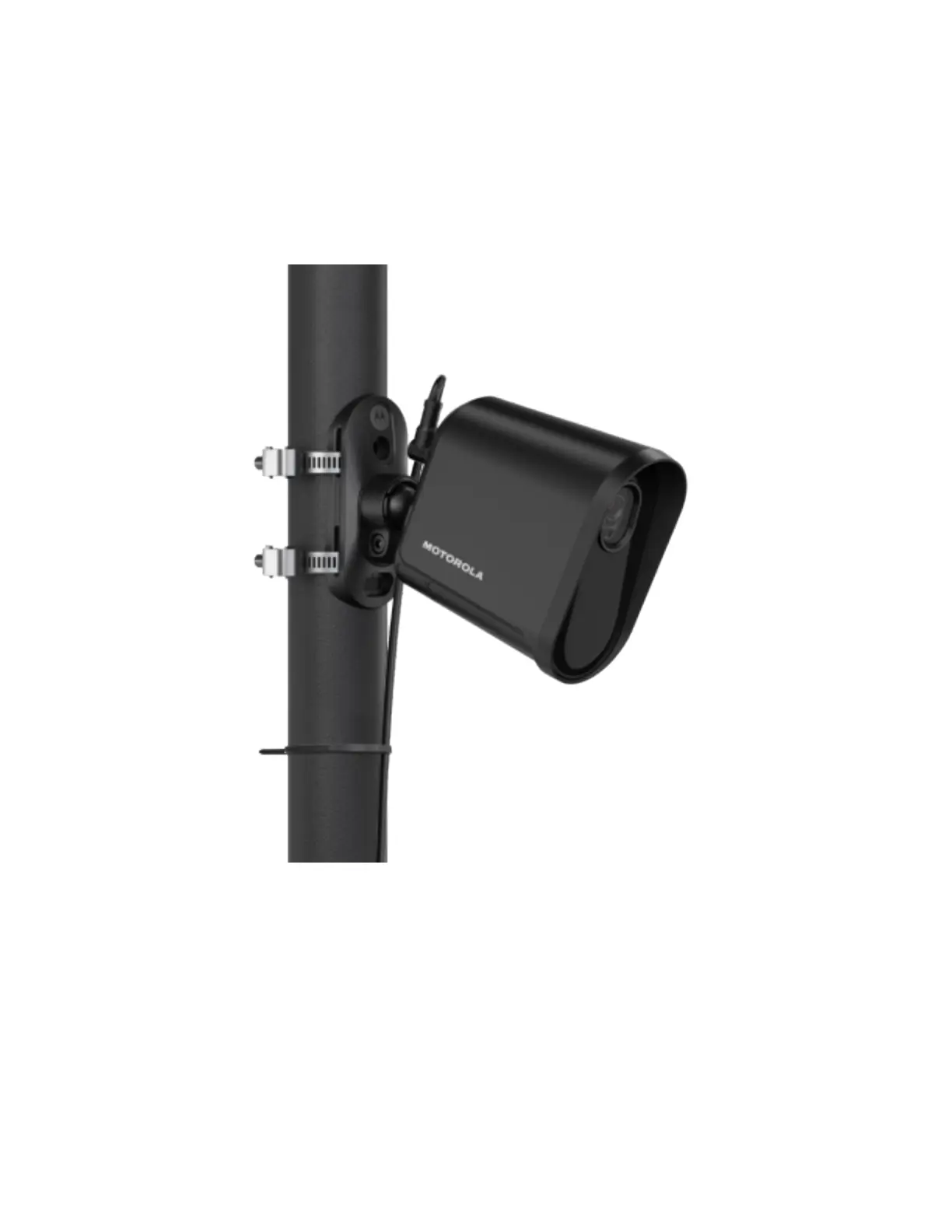

Figure 22: AC Power Installation
3.3.1
Installing AC Power
Procedure:
1 In the Mobile Companion app, select the AC 120V External Power option on the Power Source
screen.
2 Observe the Pre-Installation Checklist and Reminder.
3 Plug the AC power cable and adapter into a furnished 120V AC power outlet.
4 Check the cable length by running the power cable to approximately where the camera will be
installed and temporarily secure the cable with a reusable zip tie.
MN008660A01-AC
Chapter 3 : Hardware Installation
42
