Motorola A1000 Service Manual

6809490A77-O October 4, 2004 9
Level 1 and 2 Service Manual Operation
Operation
Controls, Indicators, and Input/Output (I/O) Connectors
The telephone’s controls are located on the front and side of the phone as shown in
Figure 1. Indicators, in the form of icons, are displayed on the LCD.

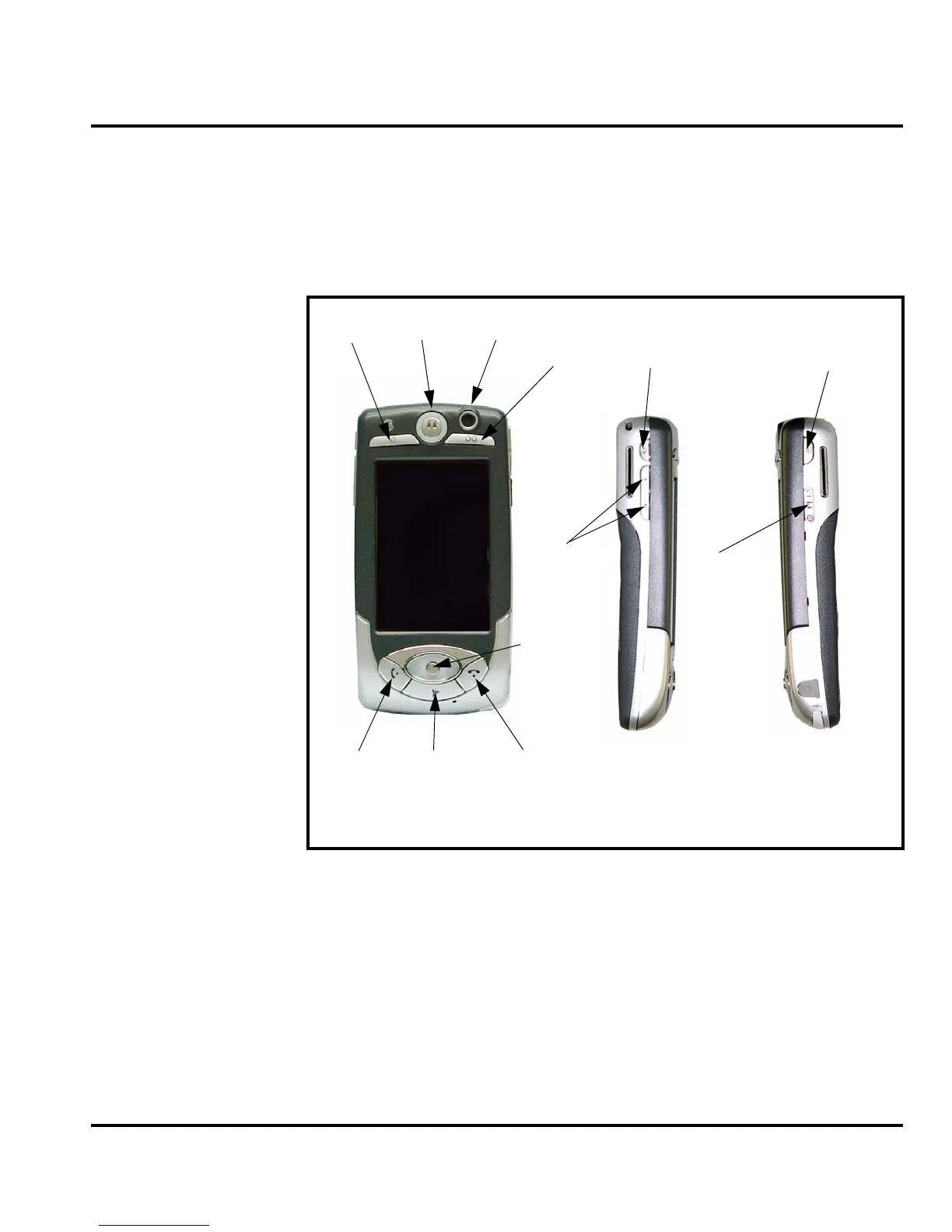

Figure 1. A1000 Controls (Front and Right Side View)
C
amera
Earpiece
Volume Key
s
G
ame A Ke
y
Game B Ke
y
Send Key
3
Key
End Key
Navigation
Key
Speakerphone Key
Lock Key
C
amera Key
3 Key

Motorola A1000 Specifications

General

Model	A1000
Status	Discontinued
Network	GSM / UMTS
2G bands	GSM 900 / 1800 / 1900
3G bands	UMTS 2100
GPRS	Class 10
SIM	Mini-SIM
Call records	Yes
Video	Yes
Secondary	No
Loudspeaker	Yes
3.5mm jack	No
WLAN	No
GPS	No
Radio	No
Messaging	SMS, MMS, Email
Browser	WAP 2.0/xHTML
Java	Yes, MIDP 2.0
Battery	Removable Li-Ion 1000 mAh battery
Stand-by	Up to 200 h
Colors	Silver
Weight	160 g (5.64 oz)
Announced	2004
Type	TFT, 65K colors
Resolution	208 x 320 pixels
Phonebook	Yes
Alert types	Vibration; MP3 ringtones
USB	Yes
Features	Voice dial
OS	Symbian OS 7.0, UIQ 2.1
CPU	ARM
Speed	Yes, 384 kbps
